Audio Connectors
Figure 13 shows the approximate location of the audio connectors.
J9A2
2
1
3
4
5
6
7
9
10
B
J8B1
1
2
3
4
C
OM15236
A
J9C1
1
2
3
4
Item Description
A CD-ROM (ATAPI-style)
B Front panel audio
C Auxiliary line in (ATAPI-style)

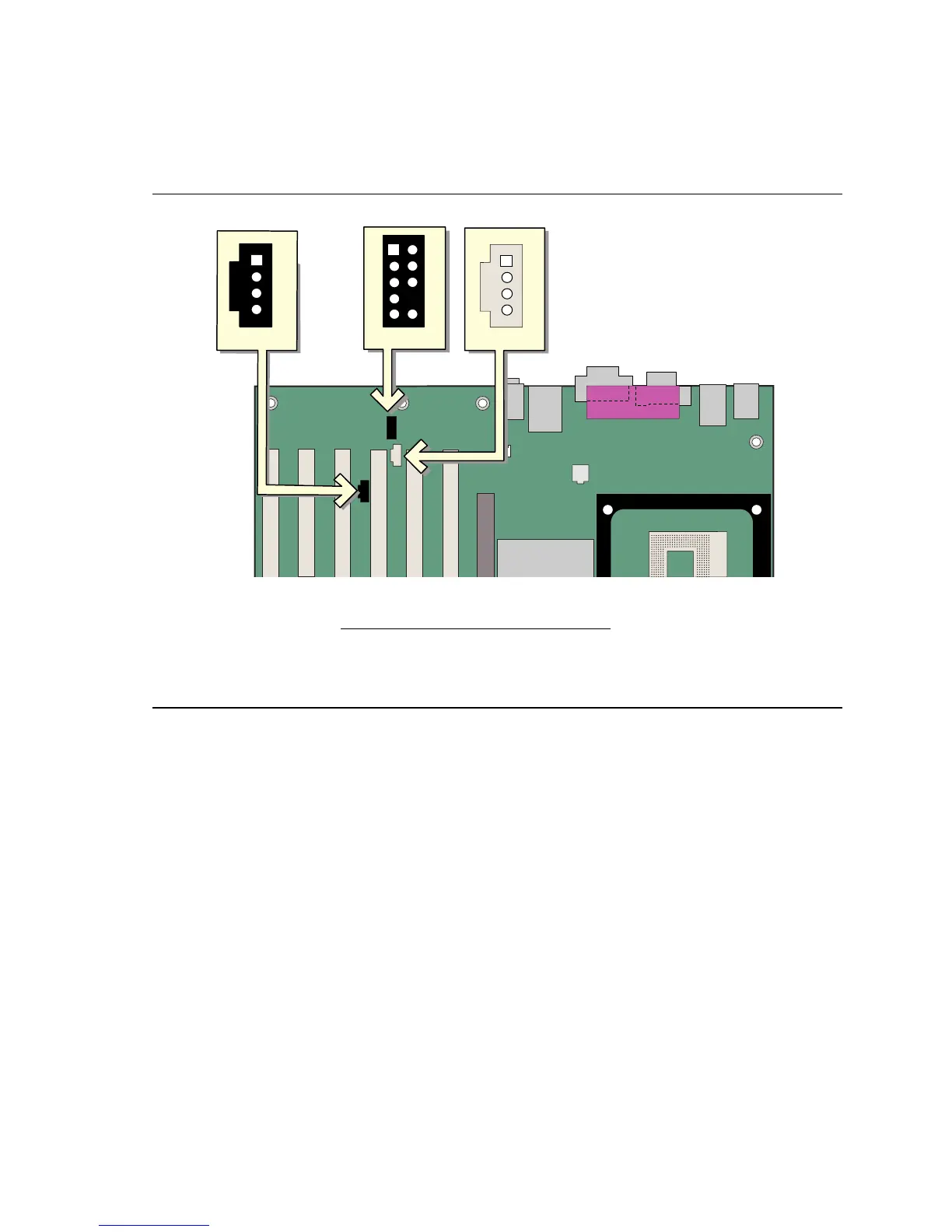

Figure 19. Audio Connectors
