Installing and Replacing Desktop Board Components
37
Connecting the IDE Cables
Each IDE cable can connect two drives to the desktop board. The cables support the ATA-66/100
transfer protocol. Figure 18 shows the correct installation of the cable.
NOTES
ATA-66/100 compatible cables are backward compatible with drives using slower IDE transfer
protocols. If an ATA-66/100 disk drive and a disk drive using any other IDE transfer protocol are
attached to the same cable, the maximum transfer rate between the drives may be reduced to that of
the slowest drive.
Do not connect an ATA device as a slave on the same IDE cable as an ATAPI master device. For
example, do not connect an ATA hard drive as a slave to an ATAPI CD-ROM drive.
For correct function of the cable:
• Observe the precautions in "Before You Begin" on page 23.
• Attach the cable end with the single connector (blue) to the Intel desktop board (Figure 18, A).
• Attach the cable end with the two closely spaced connectors (gray and black) to the drives
(Figure 18, B).
OM19180
A
B

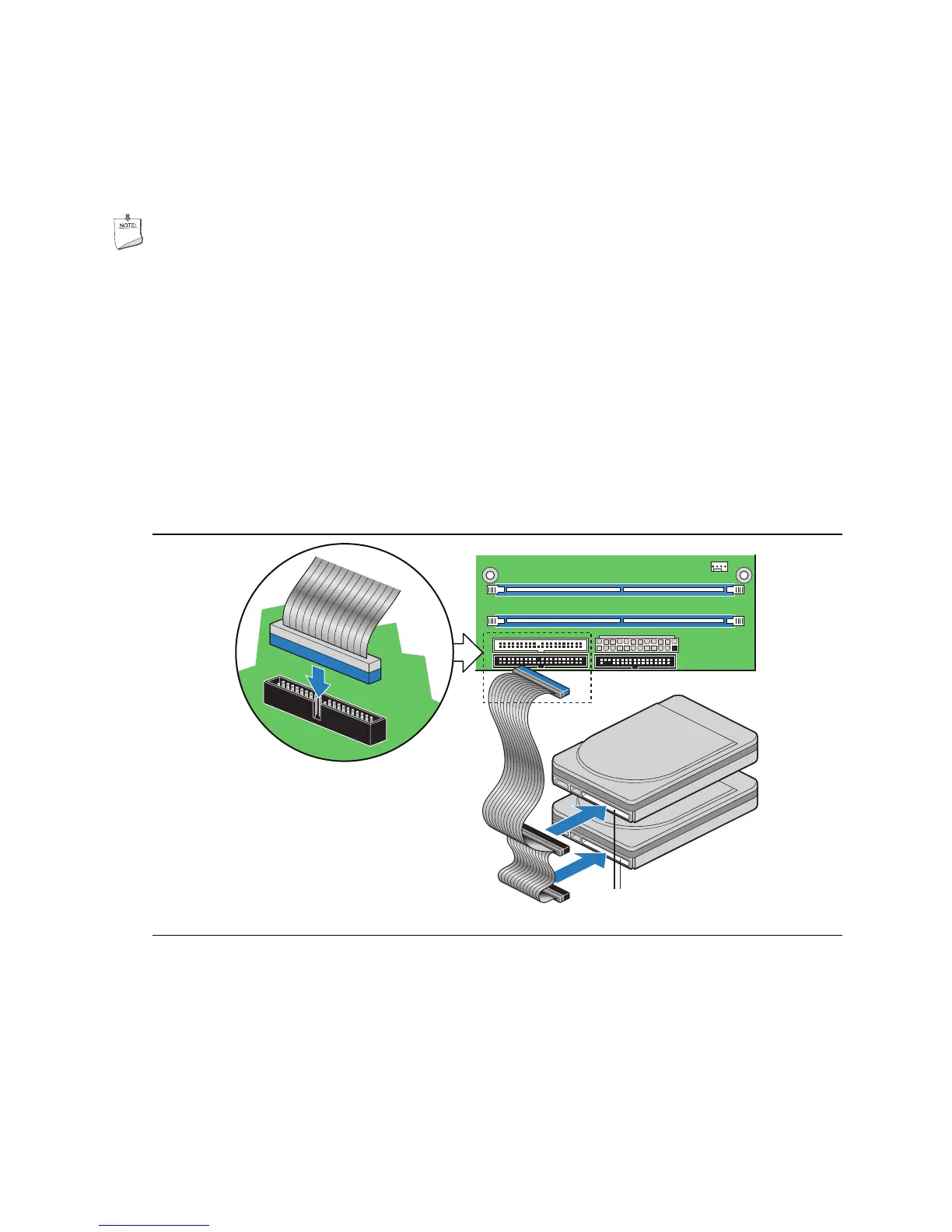

Figure 18. Connecting the IDE Cable
