1.12.2 Thermal Monitoring

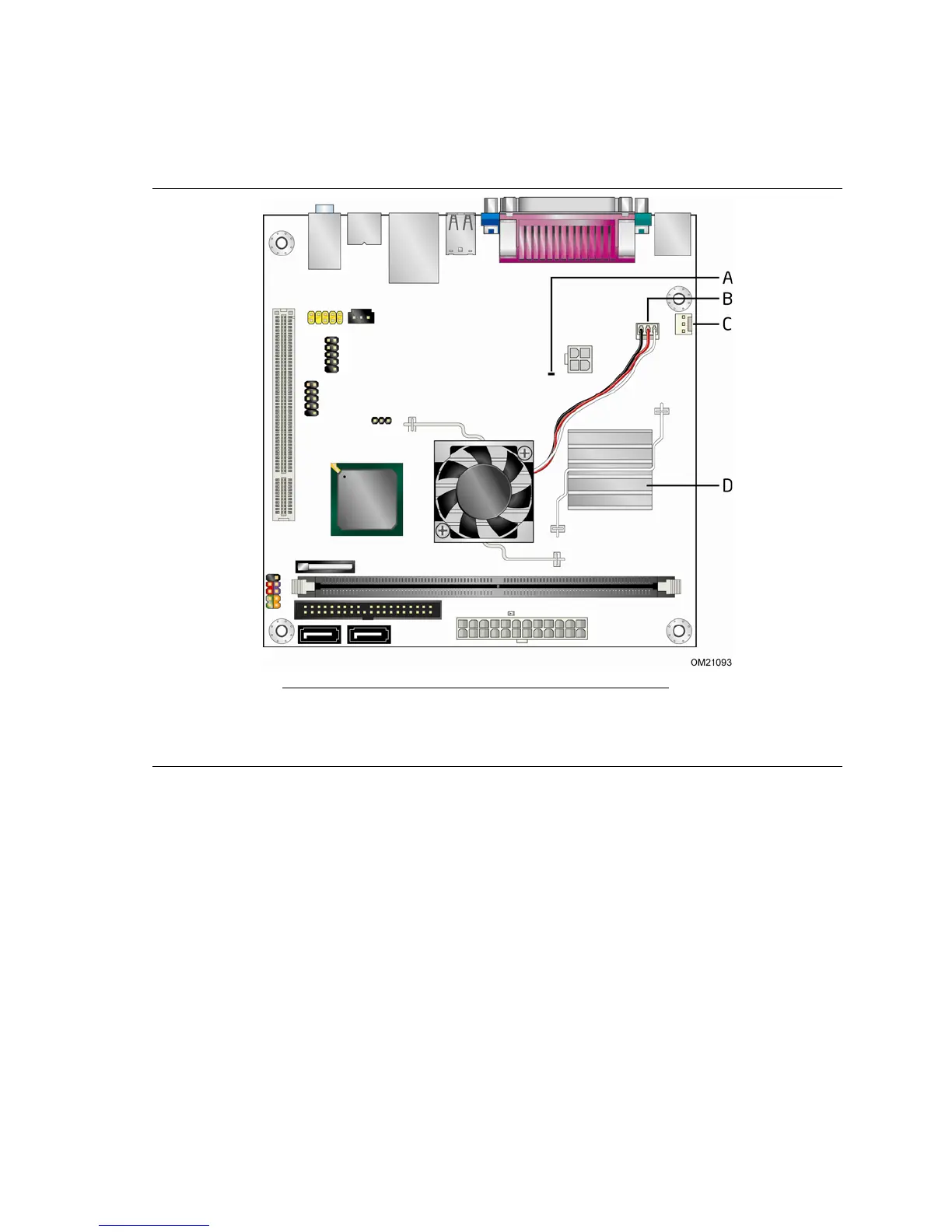

Figure 5 shows the locations of the thermal sensors and fan headers.
Item Description
A Remote thermal sensor
B GMCH fan header
C Chassis fan header
D Thermal diode, located on processor die
Figure 5. Thermal Sensors and Fan Headers
