Intel Desktop Board DG41TY Technical Product Specification
40
The amount of in
stalled memory that can be used w
ill vary based on add-in cards and
BIOS settings. Figure 8 shows a schematic of the sy
st
em memory map. All installed
system memory can be used when there is
no overlap of system addresses.

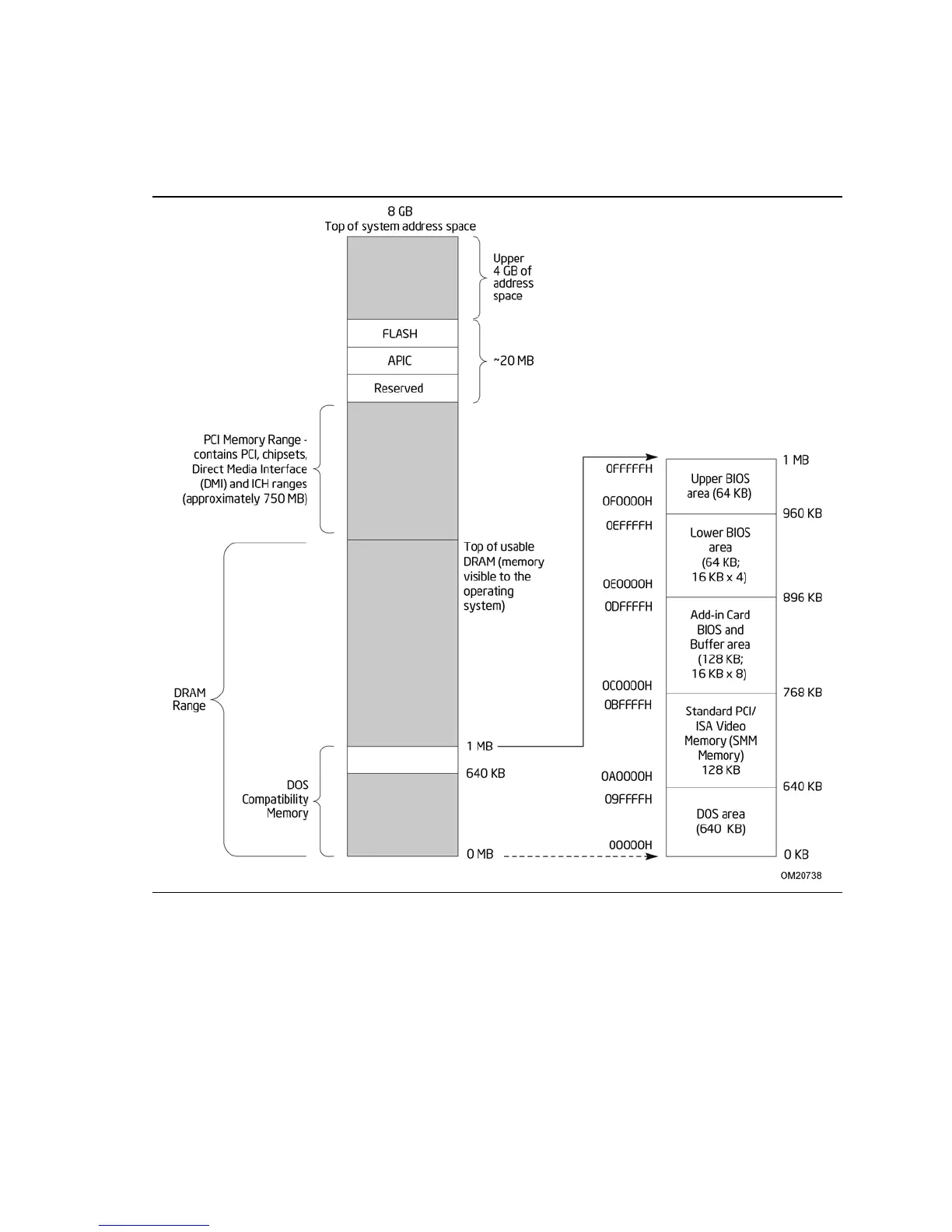

Figure 8. Detailed System Memory Address Map
39
41
Table of Contents
Default Chapter
2
Revision History
2
Intended Audience
3
Table of Contents
5
1 Product Description
9
Overview
9
Feature Summary
9
Table 1. Feature Summary
9
Board Layout
11
Figure 1. Major Board Components
11
Table 2. Board Components Shown in Figure 1
12
Block Diagram
13
Figure 2. Block Diagram
13
Legacy Considerations
14
Online Support
14
Processor
14
System Memory
15
Table 3. Supported Memory Configurations
15
Memory Configurations
16
Figure 3. Memory Channel Configuration and DIMM Configuration
17
Intel G41 Express Chipset
18
Intel G41 Graphics Subsystem
18
Table 4. DVI Port Status Conditions
20
Usb
21
Serial ATA Interfaces
21
Parallel IDE Controller
22
Real-Time Clock Subsystem
23
Legacy I/O Controller
23
Serial Port Interface
23
PS/2 Keyboard and Mouse Interface
24
1.10 Audio Subsystem
25
Table 5. Audio Jack Support
25
Audio Connectors and Headers
26
Audio Subsystem Software
26
Figure 4. Back Panel Audio Connector Options
26
1.11 LAN Subsystem
27
LAN Subsystem Software
27
RJ-45 LAN Connector with Integrated Leds
28
Figure 5. LAN Connector LED Locations
28
Table 6. LAN Connector LED States
28
1.12 Hardware Management Subsystem
29
Hardware Monitoring and Fan Control
29
Fan Monitoring
29
Chassis Intrusion and Detection
29
Thermal Monitoring
30
Figure 6. Thermal Sensors and Fan Headers
30
1.13 Power Management
31
Acpi
31
Table 7. Effects of Pressing the Power Switch
31
Table 8. Power States and Targeted System Power
32
Table 9. Wake-Up Devices and Events
33
Hardware Support
34
Fan Headers
35
Energy Star
37
Figure 7. Location of the Standby Power Indicator LED
37
2 Technical Reference
39
Memory Map
39
Addressable Memory
39
Figure 8. Detailed System Memory Address Map
40
Table 10. System Memory Map
41
Connectors and Headers
42
Back Panel Connectors
43
Figure 9. Back Panel Connectors
43
Component-Side Connectors and Headers
44
Figure 10. Component-Side Connectors and Headers
44
Table 11. Component-Side Connectors and Headers Shown in Figure 10
45
Table 12. HD Audio Link Header
46
Table 13. Serial ATA Connectors
46
Table 14. Chassis Intrusion Header
46
Table 15. Serial Port Header
46
Table 16. Front and Rear Chassis Fan Headers
47
Table 18. Processor Fan Header
47
Table 19. Front Panel Audio Header for Intel HD Audio
47
Table 20. Front Panel Audio Header for AC '97 Audio
47
Table 21. Auxiliary Front Panel Power/Sleep LED Header
48
Table 22. Processor Core Power Connector
49
Table 23. Main Power Connector
49
Figure 11. Connection Diagram for Front Panel Header
50
Table 24. Front Panel Header
50
Table 25. States for a One-Color Power LED
51
Table 26. States for a Two-Color Power LED
51
Table 27. Auxiliary Front Panel Power LED Header
51
Figure 12. Connection Diagram for Front Panel USB Headers
52
Jumper Block
53
Figure 13. Location of the Jumper Block
53
Table 28. BIOS Setup Configuration Jumper Settings
53
Mechanical Considerations
54
Form Factor
54
Figure 14. Board Dimensions
54
Electrical Considerations
55
Power Supply Considerations
55
Table 29. Recommended Power Supply Current Values
55
Fan Header Current Capability
56
Add-In Board Considerations
56
Thermal Considerations
56
Figure 15. Localized High Temperature Zones
57
Reliability
58
Environmental
59
3 Overview of BIOS Features
61
Introduction
61
BIOS Flash Memory Organization
62
Resource Configuration
62
PCI Autoconfiguration
62
PCI IDE Support
63
System Management BIOS (SMBIOS)
63
Legacy USB Support
63
BIOS Updates
65
Language Support
65
Custom Splash Screen
66
BIOS Recovery
66
Boot Options
67
CD-ROM Boot
67
Network Boot
67
Booting Without Attached Devices
67
Changing the Default Boot Device During POST
67
Adjusting Boot Speed
68
Peripheral Selection and Configuration
68
BIOS Boot Optimizations
68
3.10 BIOS Security Features
69
4 Error Messages and Beep Codes
71
Speaker
71
BIOS Beep Codes
71
BIOS Error Messages
71
Port 80H POST Codes
72
5 Regulatory Compliance and Battery Disposal Information
77
Regulatory Compliance
77
Safety Standards
77
European Union Declaration of Conformity Statement
78
Product Ecology Statements
79
EMC Regulations
83
Product Certification Markings (Board Level)
84
Battery Disposal Information
85
