Intel Desktop Board DG45ID Product Guide
50
NOTE
The back panel line out connector is designed to power either headphones or amplified
speakers only. Poor audio quality may occur if passive (non-amplified) speakers are
connected to this output.
Connecting Chassis Fan and Power Supply
Cables
Chassis Fan Cables
Connect chassis fan cables to the 3-pin and 4-pin chassis fan headers on the Desktop
Board. Figure 23 shows the location of the cha
ssis fan headers.

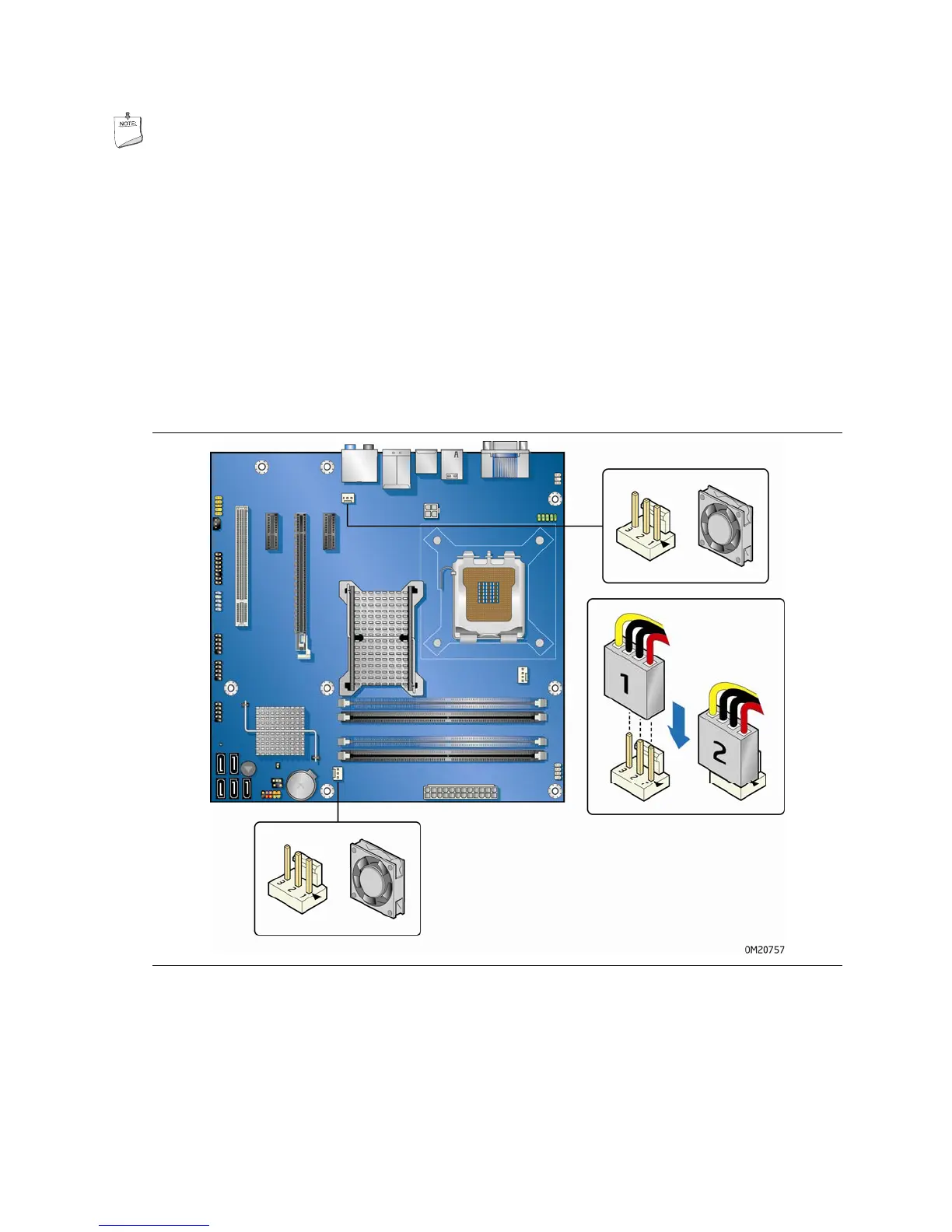

Figure 23. Location of the Chassis Fan Headers
