4. Connect a monitor to the graphics card according to the manufacturer’s
instructions.

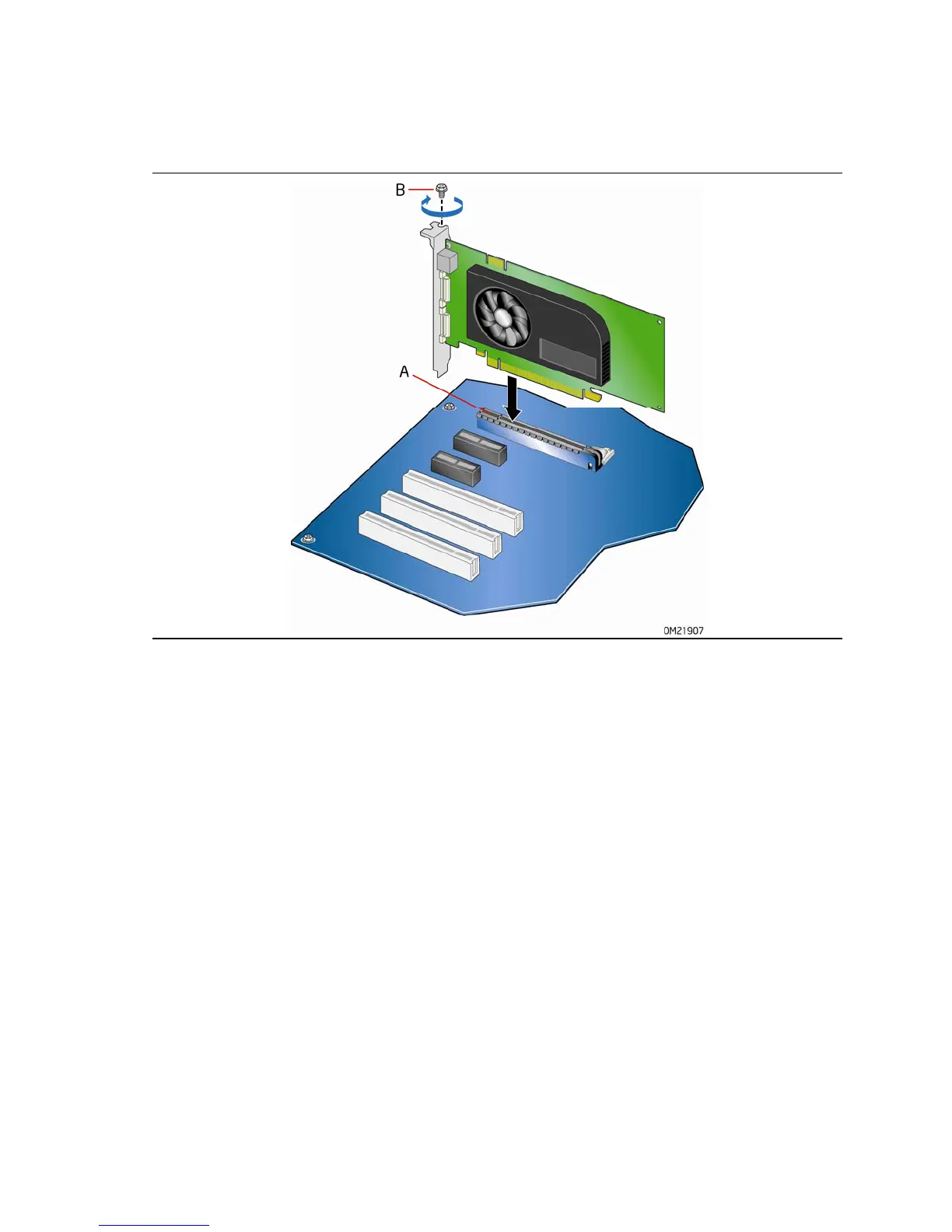

Figure 19. Installing a PCI Express x16 Graphics Card
Removing a PCI Express x16 Graphics Card
Follow these instructions to remove a PCI Express x16 graphics card from a connector:
1. Observe the precautions in "Before You Begin" on page 27.
2. Disconnect
the monitor cable from the graphics card back panel connector.
3. Remove the screw (Figure 20, A) that secures the card’s metal bracket to the
chassis back panel.
4. Push the card ejector le
ver down using the tip of a pencil or similar tool
(Figure 20, B) in the notch. This will release the card from the connector (C).
5. P
ull t
he card straight up to remove it.

Intel DH55HC Specifications

General

Form Factor	MicroATX
Socket	LGA 1156
Memory Type	DDR3
Memory Slots	4
Max Memory	16 GB
PCI Express x16	1
PCIe 2.0 x1 Slots	2
PCI Slots	1
VGA	1
DVI-D	1
HDMI	1
Audio Codec	Realtek ALC888S
Chipset	Intel H55 Express
Memory Standard	DDR3 1333/1066
SATA Ports	6
USB Ports	12 x USB 2.0
Audio	Realtek ALC888S
LAN	Intel 82578DC Gigabit Ethernet Controller
