Intel Desktop Board DH55HC Product Guide
46
Connecting to the Internal Headers
Before connecting cables to any of the inte
rnal headers, observ
e the precautions in
“
Before You Begin” on page
27.

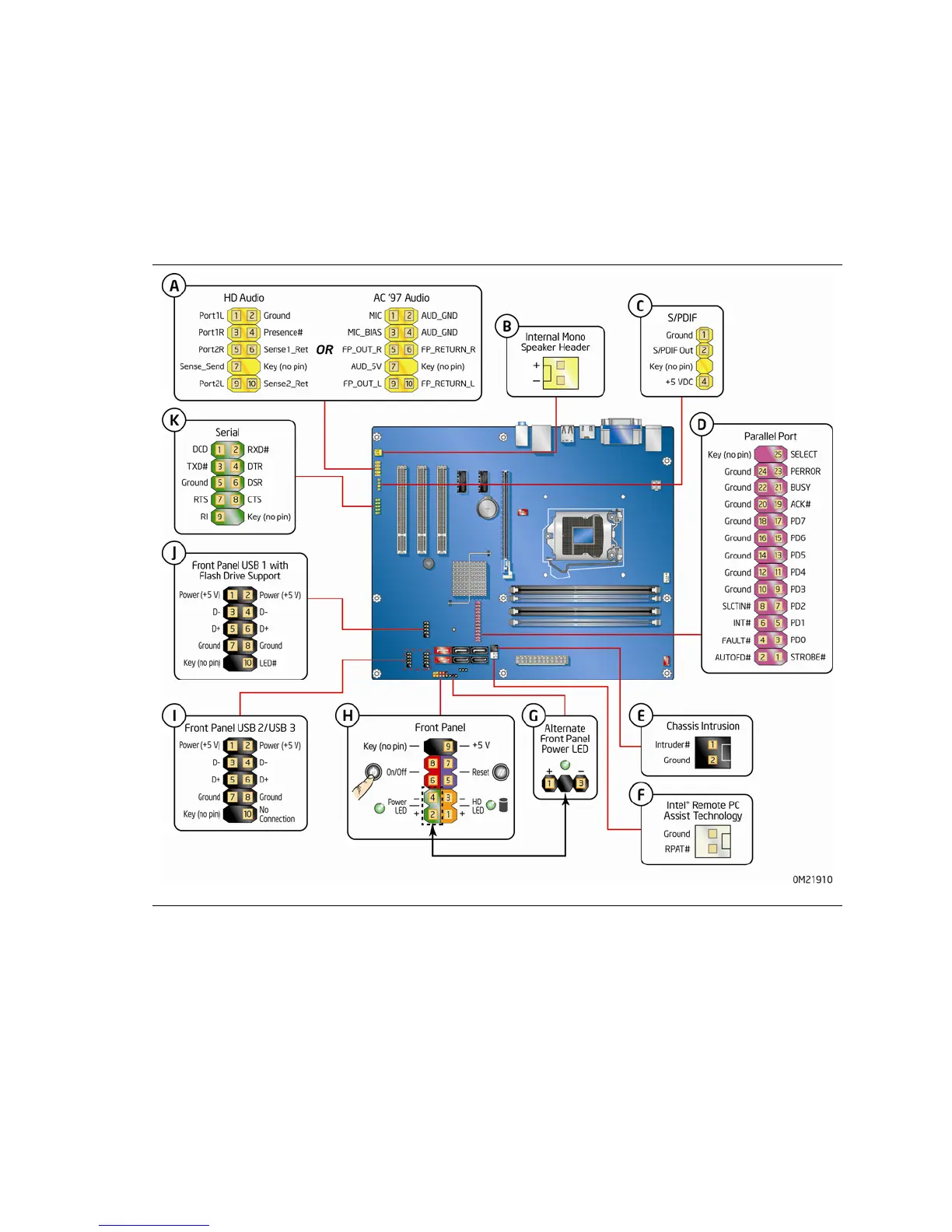

Figure 23 sho
ws the location of the internal headers
and connectors on Intel
Desktop Board DH55H
C.
Figure 23. Internal Headers
45
47
