Intel DH61BE User Manual

Product Description
27
1.12.3 RJ-45 LAN Connector with Integrated LEDs

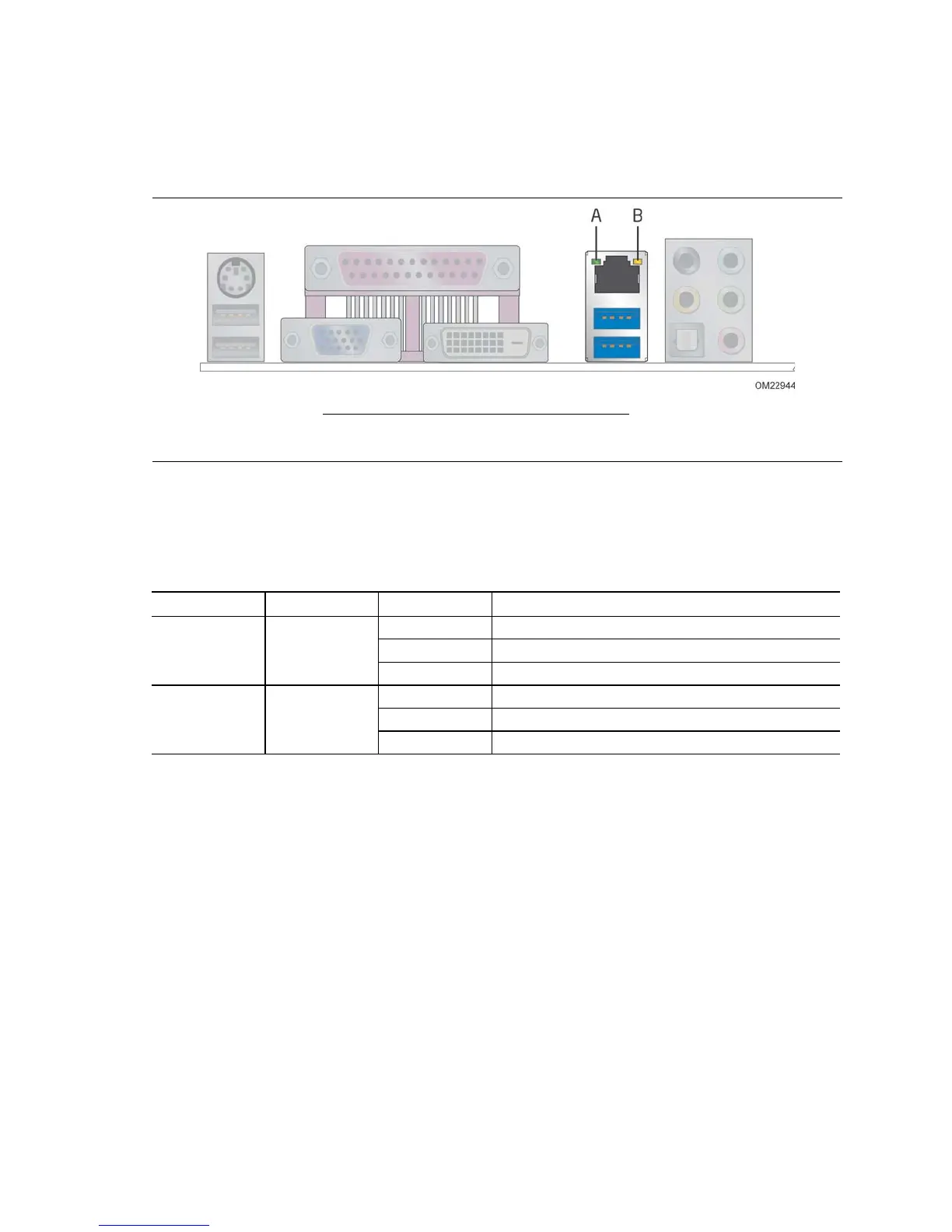

Two LEDs are built into the RJ-45 LAN connector (shown in Figure 5).
Item Description
A Link/Activity LED (green)
B Link Speed LED (green/yellow)
Figure 5. LAN Connector LED Locations
Table 5 describes the LED states when the board is powered up and the LAN
subsystem is operating.
Table 5. LAN Connector LED States
LED LED Color LED State Condition
Link/Activity Green
Off LAN link is not established.
On LAN link is established.
Blinking LAN activity is occurring.
Link Speed Green/Yellow
Off 10 Mbits/s data rate is selected or negotiated.
Green 100 Mbits/s data rate is selected or negotiated.
Yellow 1000 Mbits/s data rate is selected or negotiated.

Intel DH61BE Specifications

General

Form Factor	Micro ATX
Chipset	Intel H61
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	2
Max Memory	16 GB
PCI Express x16	1
PCIe 2.0 x1 Slots	2
SATA Ports	4
RAID Support	No
Ethernet	10/100/1000 Mbps
Onboard Video	Yes
Video Output	DVI, VGA
