Technical Reference
55
2.5 Mechanical Considerations
2.5.1 Form Factor
The board is designed to fit into a microATX form-factor chassis. Figure 15 illustrates
the mechanical form factor for the board. Dimensions are given in inches
[millimeters]. The outer dimensions are 9.60 inches by 7.80 inches
[243.84 millimeters by 198.12 millimeters]. Location of the I/O connectors and
mounting holes are in compliance with the ATX specification.

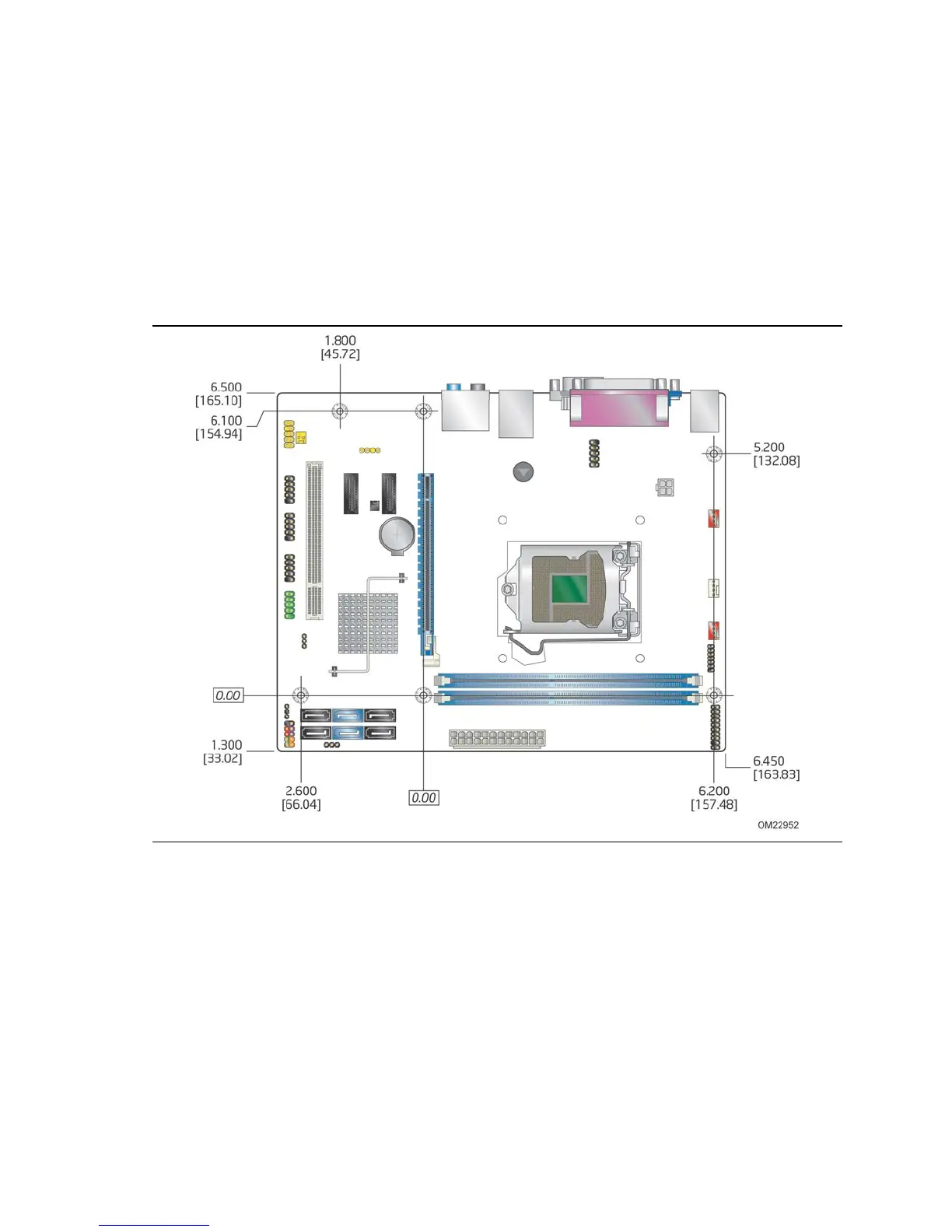

Figure 15. Board Dimensions
