Installing and Replacing Desktop Board Components
49
Setting the BIOS Configuration Jumper
NOTE
Always turn off the
power to the comp
uter
before moving the jumper. Moving the
jumper with the power on may result
in unreliable computer operation.
Figure 20 shows t
he location
of the Desktop Board’s BIOS
confi
guration jumper block.

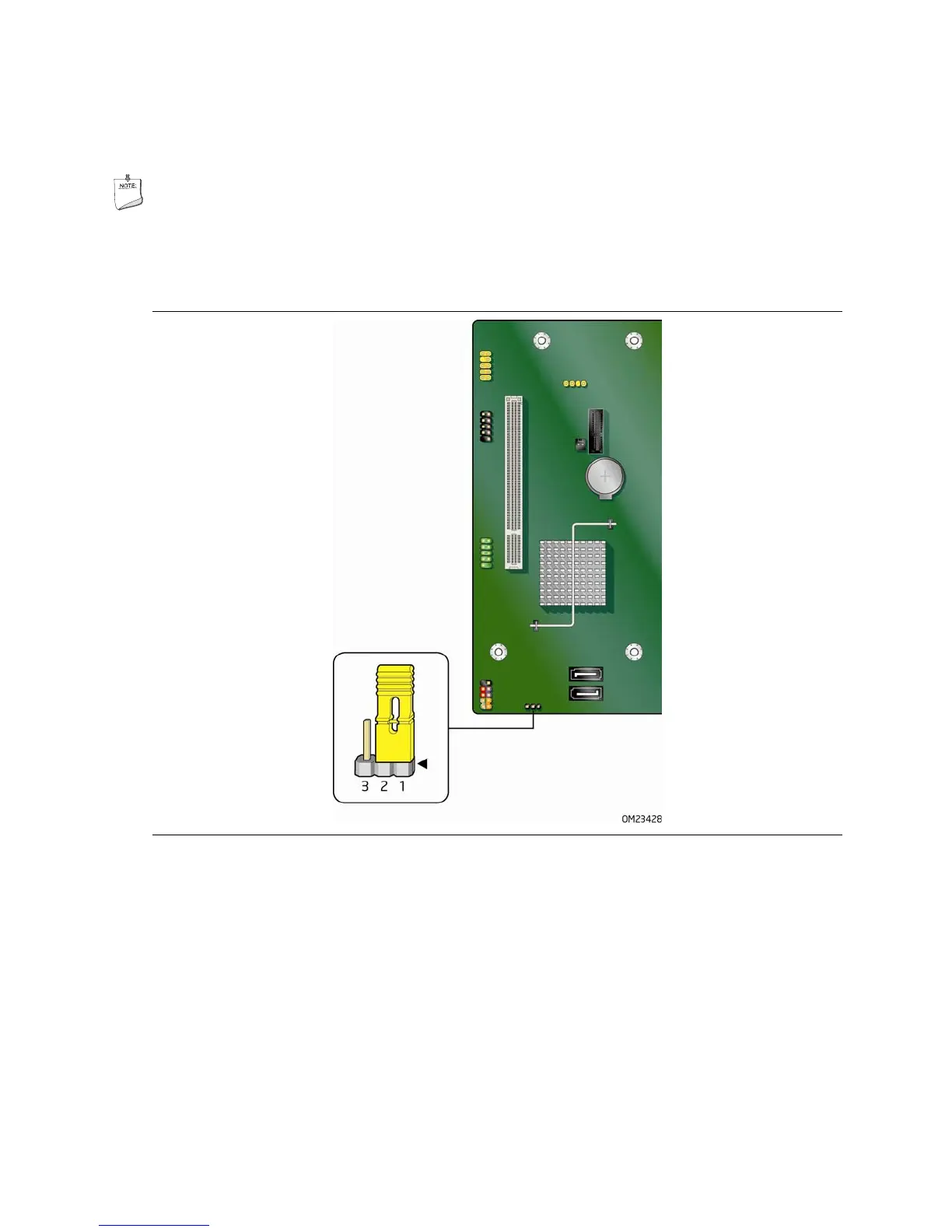

Figure 20. Location of t
he BIOS Configuration Jumper Block
48
50
