Intel Desktop Board DH67VR Product Guide

Connecting Chassis Fan and Power Supply

Cables

Connecting a Chassis Fan

Connect the chassis fan cable to the chassis fan header on the Desktop Board.

Figure 22 shows the location of the chassis fa

n header.

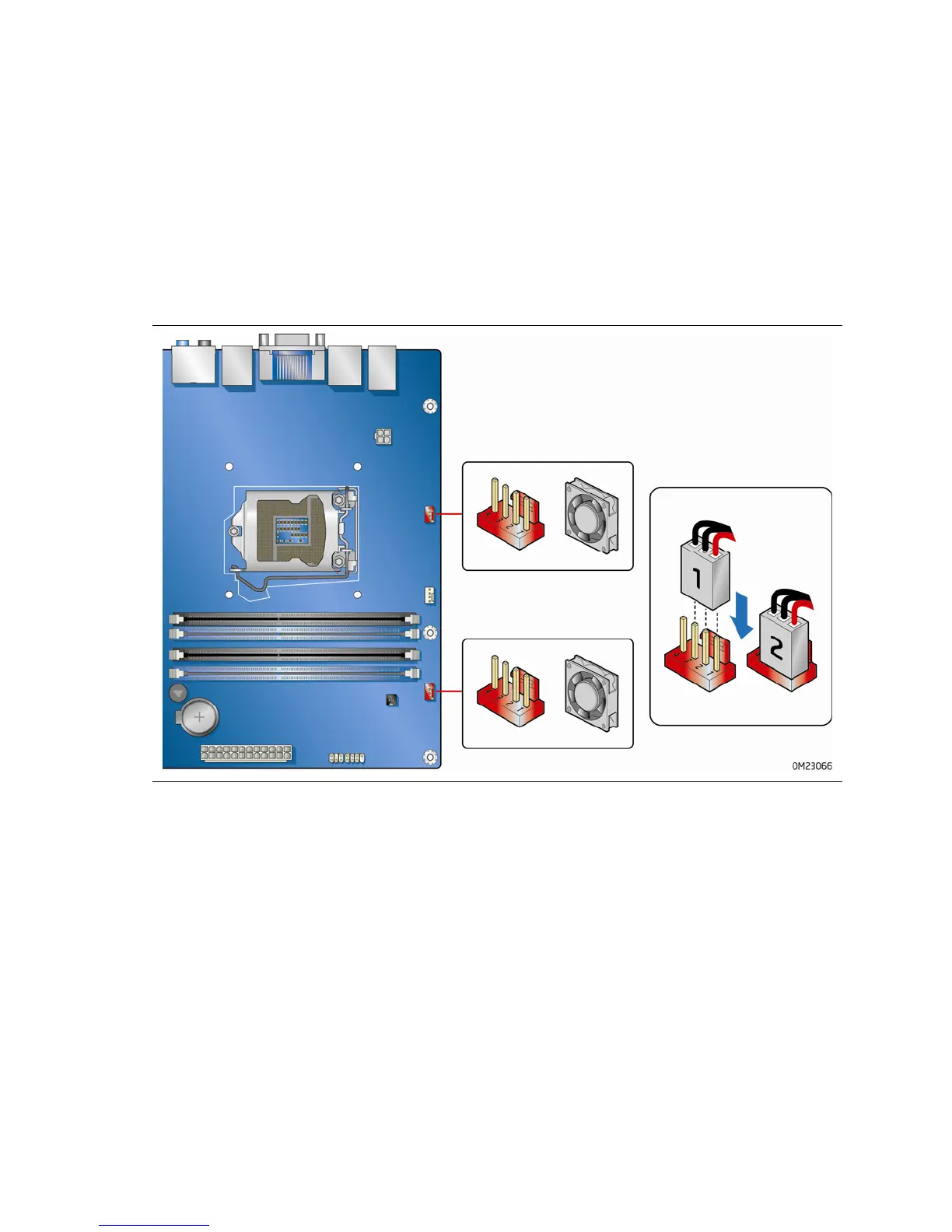

Figure 22. Location of the Chassis Fan Header
