Intel Desktop Board DH67VR Product Guide
72
China RoHS
Intel Desktop Board DH67VR is a China RoHS-compliant product.
The China Ministry of
Information Indu
stry (MII) stipulates t
hat a material Self
Declaration Table (SDT) must
be included in a product’s
user documentation.
The SDT
for Intel Desktop Board DH67VR is shown in
Figure 26.

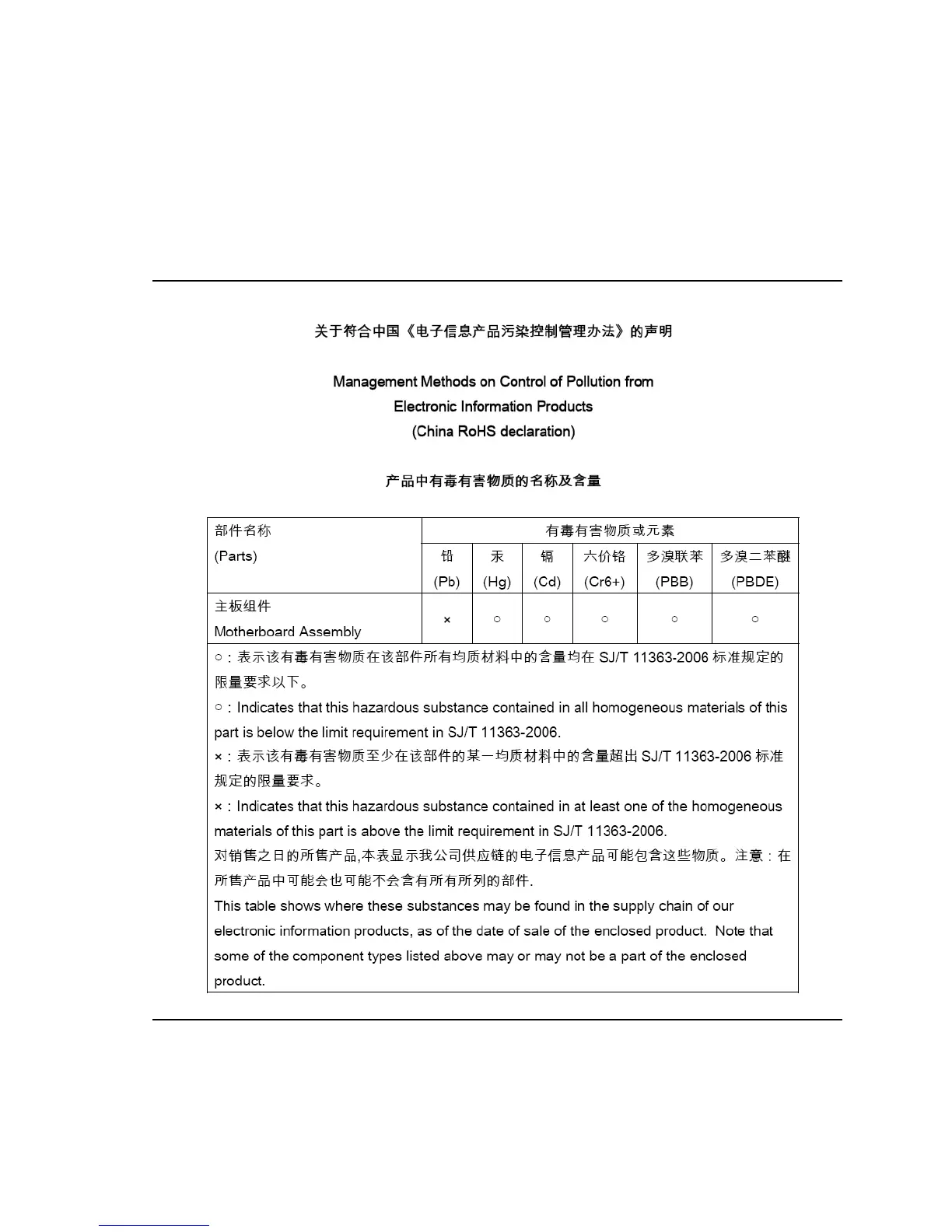

Figure 26. Intel Desktop B
oard DH67VR China RoHS Mat
erial
Self Declaration Table
71
73
