12
Mini Arcade Stacker

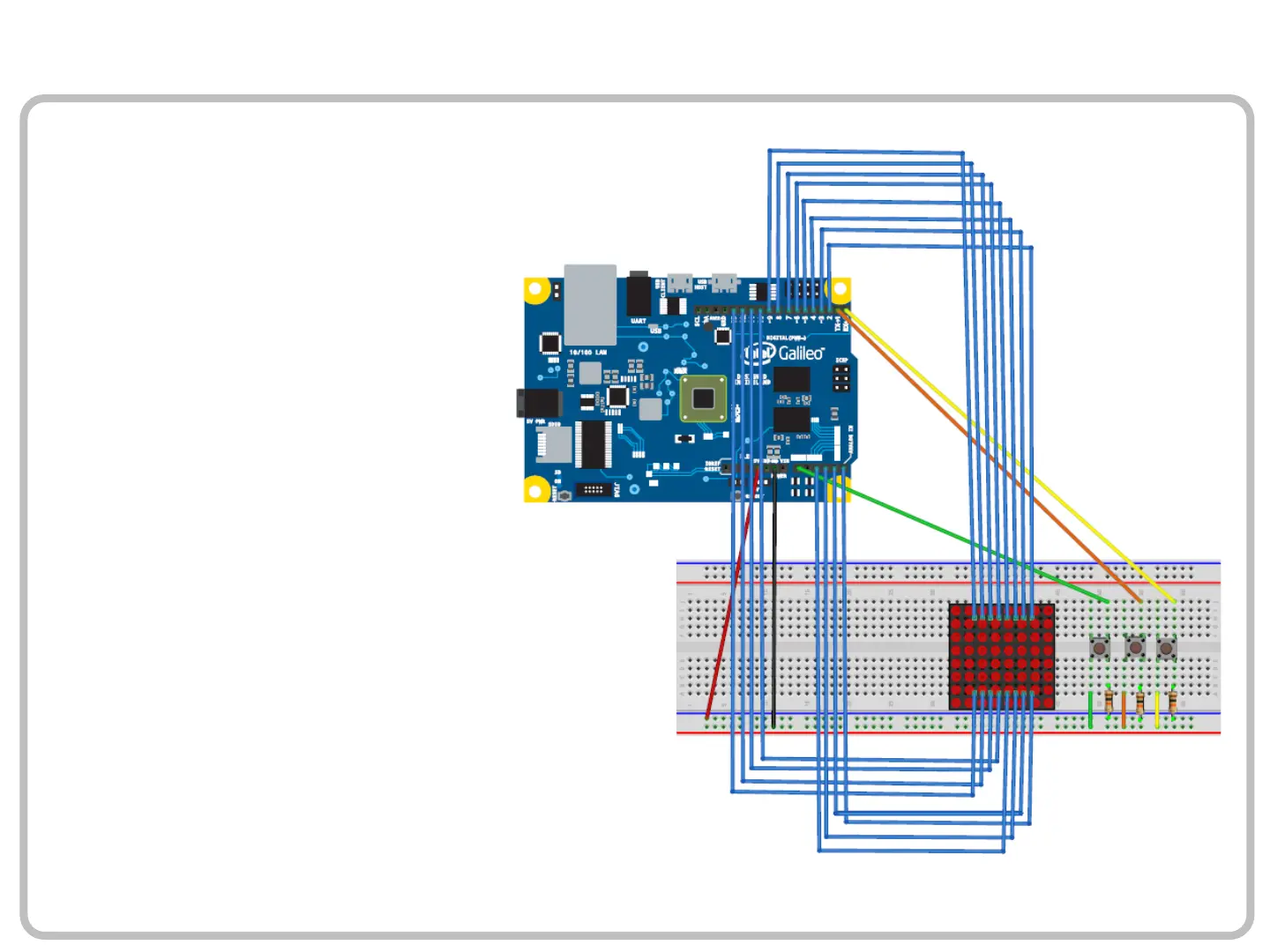

Build the Circuit
You will need
1. 8x8 LED
2. Three buttons
3. 24 male-to-male jumper wires
4. Three 10K-ohm resistors
Load the Sketch
1. In Arduino IDE: File ! Open
2. On the desktop, open in succession
the folders IESC ! MiniArcade !
stacker_8v8.
3. Within the stacker_8v8 folder, select the
file called stacker_8v8.ino.
4. Click Verify (checkmark)
5. Click Upload (right arrow)
Play the Stacker redemption game
Press the button connected to A0 and stack
the bars to the top to win
Need help? Troubleshooting page in this doc
Challenge: Can you change the speed?
Figure 6
