Mini Arcade: Sprites

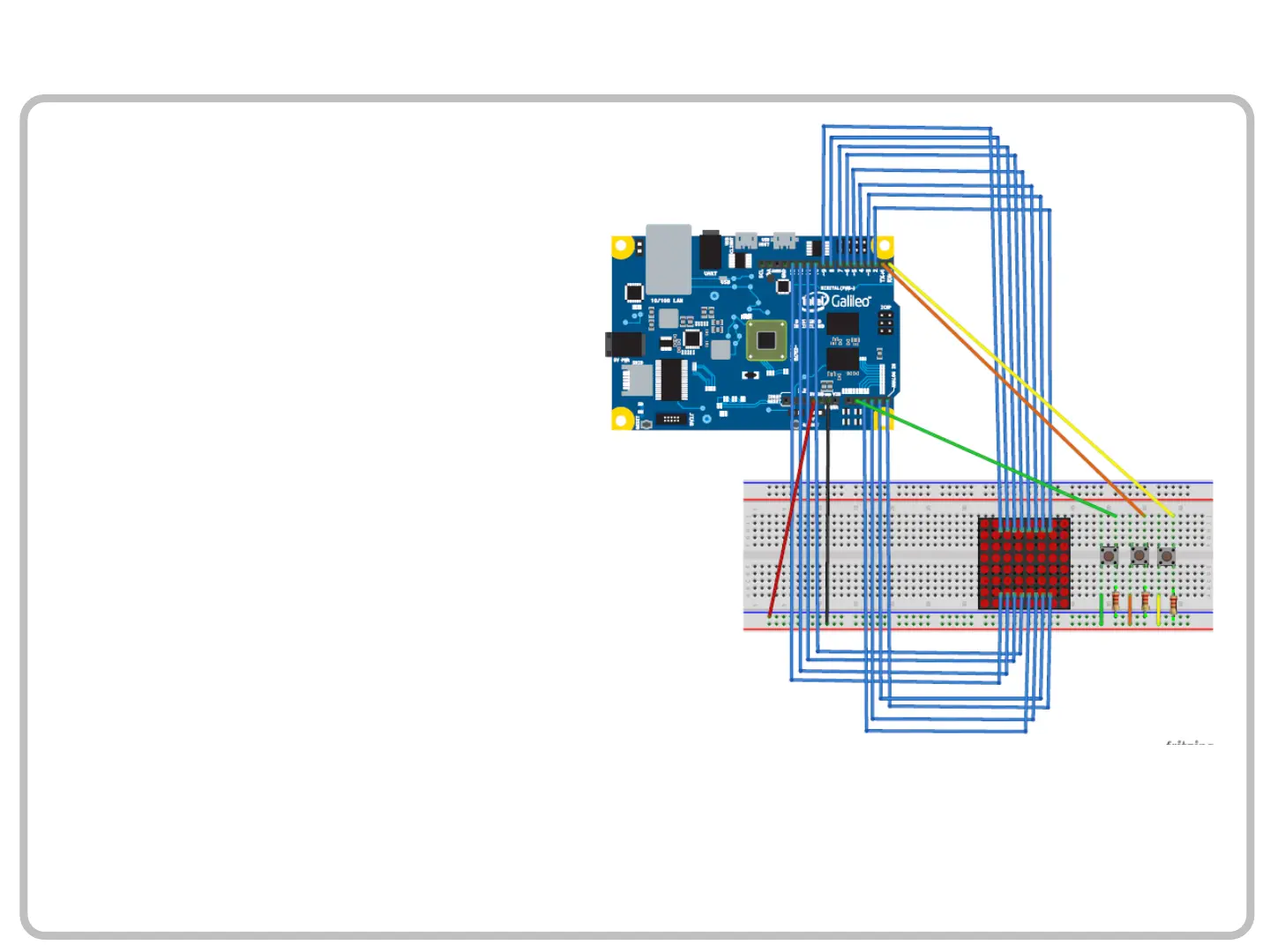

Build the Circuit
You will need
1. 8x8 LED
2. Three buttons
3. 24 male-to-male jumper wires
4. Three 10K-ohm resistors:
Brown Black Orange
Load the Sketch
1. In Arduino IDE: File ! Open
2. On the desktop, open in succession the folders
IESC ! MiniArcade ! animator_8v8.
3. Within the animator_8v8 folder, select the file
called animator_8v8.ino.
4. Click Verify (checkmark)
5. Click Upload (right arrow)
Play Sprite Game
At ?, push button for animation
A0 – Face
Tx1 – Space Invaders
Rx0 – Pacman
Need help? Troubleshooting on page 16
Figure 8
To Next Page
