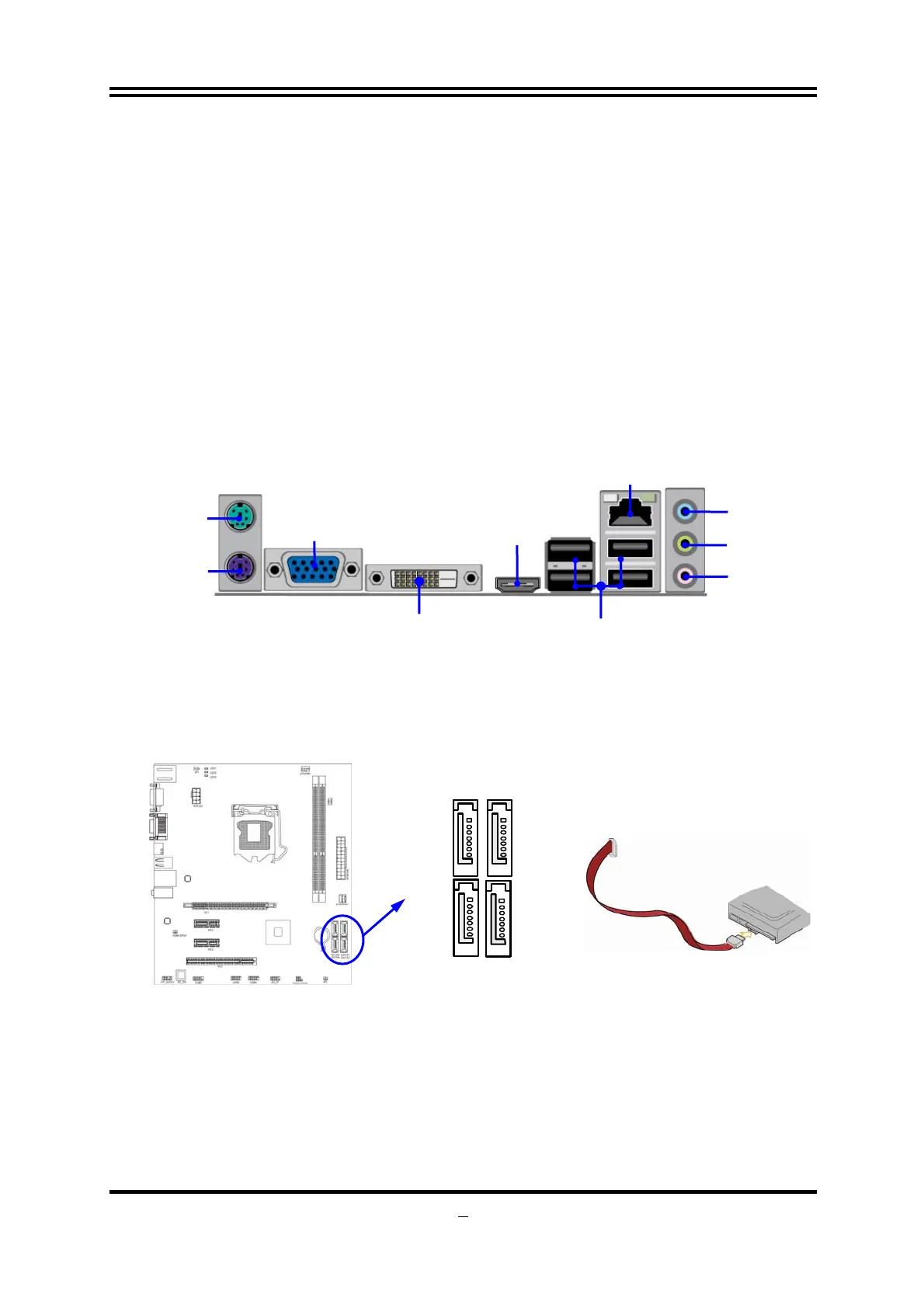

(3) PS/2 Mouse & PS/2 Keyboard Connector: KB1
The connectors are for PS/2 keyboard and PS/2 Mouse.
(4) USB Port connector: USB port fromUL1, USB1
The connectors are 4-pin connectors that connect USB devices with the 480
Mbit / sec data transfer rate to the system board.
(5) LAN Port connector: RJ-45 LAN ports from UL1
This connector is standard RJ45 over USB connectors for Network connection.
The connector supports 10MB/100MB/1G B/s data transfer rate
(6) Audio Line-In, Lin-Out, MIC: AUDIO
These Connectors are 6 Phone-Jack for LINE-OUT, LINE-IN, MIC audio
connections.
Line-in: (BLUE)
Audio input to sound chip
Line-out: (GREEN)
Audio output to speaker
MIC: (PINK)
Microphone Connector
(7) Serial-ATA2 Port connectors: SATA1~SATA4
These connectors support the provided Serial ATA and Serial ATA2 IDE hard
disk cable to connect the motherboard and serial ATA2 hard disk drives.
SATA1
SATA2
Serial ATAII Connector
SATA 3
SATA 4
RJ-45 LAN
Line-IN
MIC-IN
PS/2 Keyboard
Connector
VGA Connector
USB Connectors
Line-OUT
HDMI Connector
PS/2 Mouse
Connector
DVI Connector
