12
HDMI_SPDIF Header
1
GND
2
HDMI_SPDIF_OUT

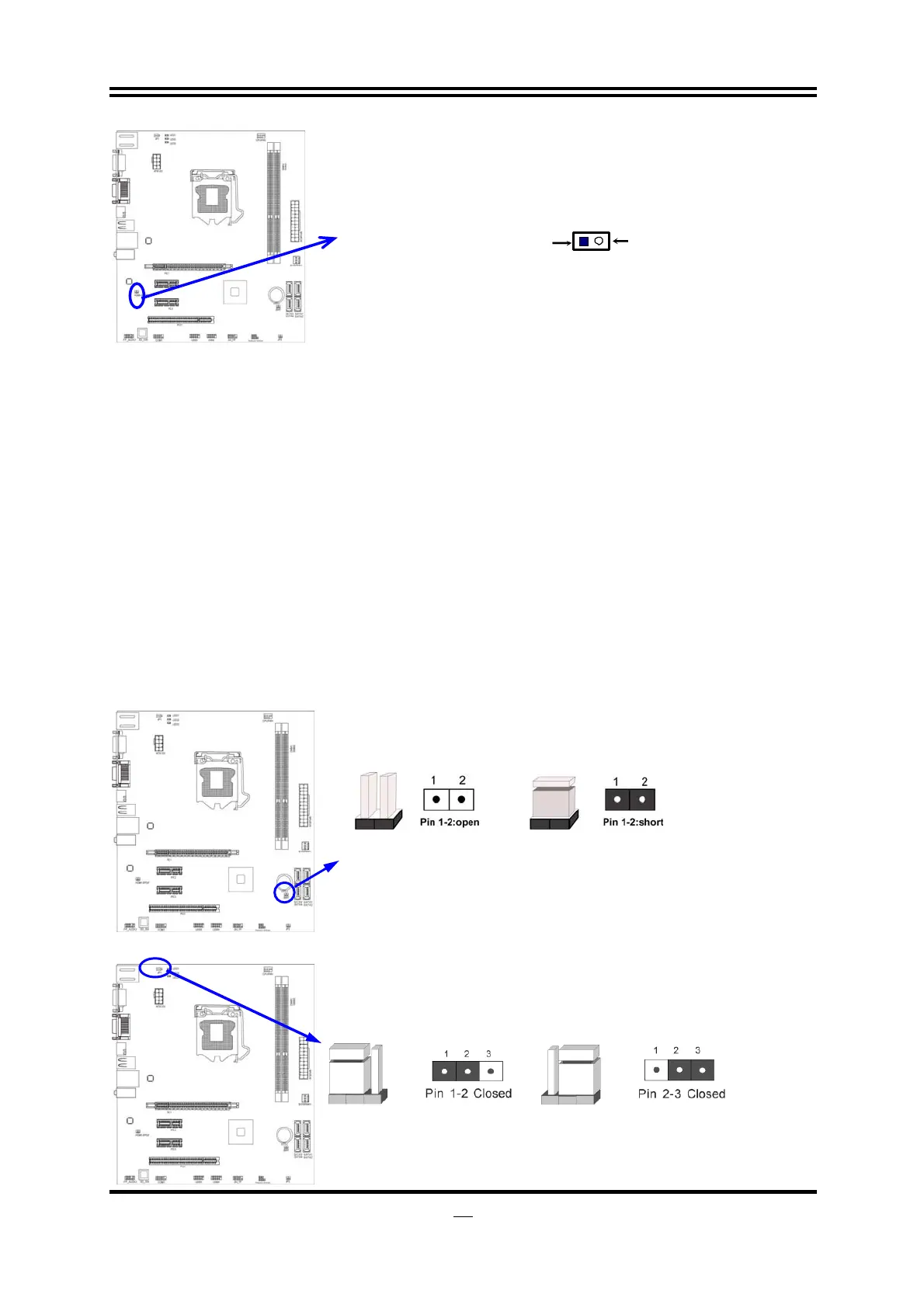

3-3 Jumper Setting
(1) CMOS RAM Clear (2-pin): JBAT
A battery must be used to retain the motherboard configuration in CMOS RAM,
short 1-2 pins of JBAT to clear the CMOS data.
To clear the CMOS, follow the procedure below:
1. Turn off the system and unplug the AC power
2. Remove ATX power cable from ATX power connector
3. Locate JBAT and short pins 1-2 for a few seconds, if shorted with the jump cap,
short for a few seconds then pull out the hat.
4. Connect ATX power cable back to ATX power connector
Note: When should clear CMOS
1. Troubleshooting
2. Forget password
3. After over clocking system boot fail
CMOS Clear Setting
1-2 Short： CMOS Clear
JBAT
1-2 Open： Normal
(2) KB/MS Power on Function Enabled/Disabled: JP1
Keyboard/Mouse Power On Setting
2-3 Closed KB
MS Power ON Enabled
JP1
JP1
1-2 Closed KB/MS Power ON Disable (Default)
