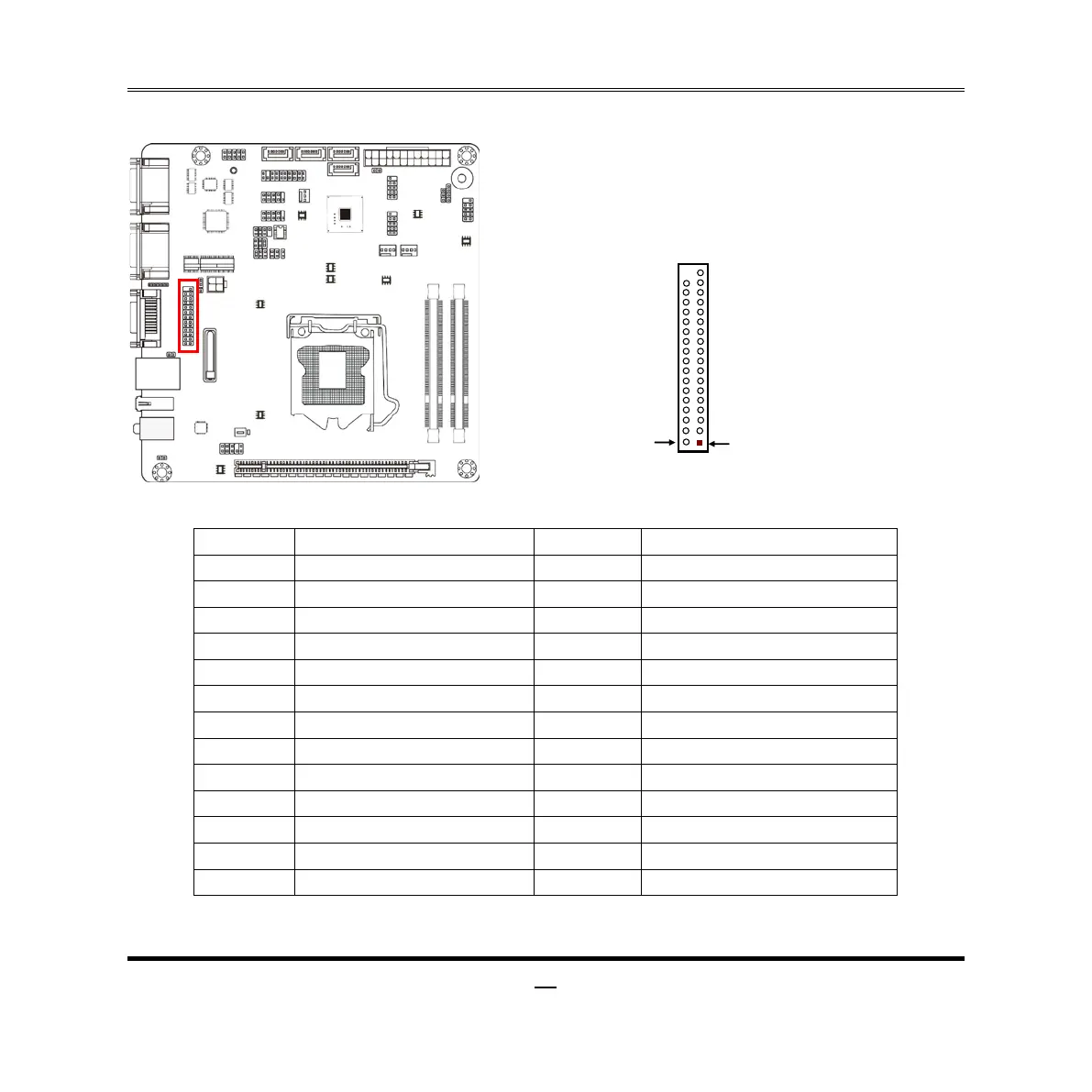

(15) PARALLEL (25-pin): Parallel Port Header

Pin 1

Parallel Port Header

Pin2

Pin NO.

Pin Definition

Pin NO.

Pin Definition

Pin 1

STB-

Pin 2

AFD-

Pin 3

PD0

Pin 4

ERR-

Pin 5

PD1

Pin 6

INIT-

Pin 7

PD2

Pin 8

SLIN-

Pin 9

PD3

Pin 10

GND

Pin 11

PD4

Pin 12

GND

Pin 13

PD5

Pin 14

GND

Pin 15

PD6

Pin 16

GND

Pin 17

PD7

Pin 18

GND

Pin 19

ACK-

Pin 20

GND

Pin 21

BUSY

Pin 22

GND

Pin 23

Pin 24

GND

Pin 25

SLCT
