Intel H61 Express User Manual

3

Parallel port header x1

PS/2 keyboard & mouse header x1

GPIO header x1

TPM 1.2 header x1

Serial port header x2

RS422/RS485 header x1

9-pin USB 2.0 header x2

CIR header x1

Speaker header x1

PWRLED header x1

Front panel header x1

HDMI_SPDIF header x1
1-3 Layout Diagram

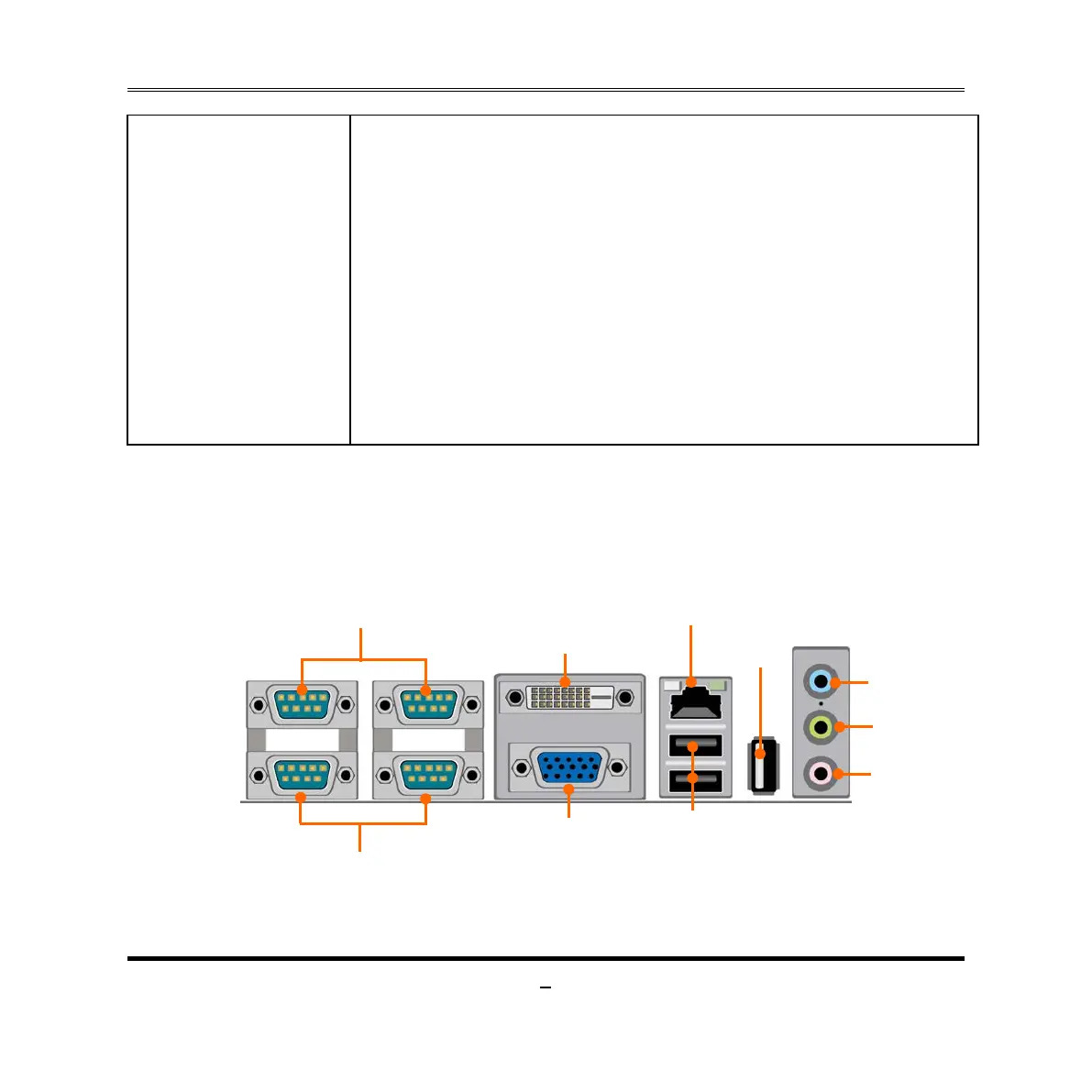

Rear IO Diagram
MIC-IN
VGA Port
Line-IN
Line-OUT
RJ-45 LAN Port
USB Ports
Serial Ports
Serial Ports
DVI-D Port
USB Port

Intel H61 Express Specifications

General

Chipset	Intel H61 Express
Socket	LGA 1155
Memory Type	DDR3
Max Memory	16 GB
PCI Express Revision	2.0
USB Ports	Up to 10 USB 2.0 ports
SATA Ports	4 SATA 3Gb/s ports
RAID Support	No
LAN Speed	10/100/1000 Mbps
Memory Slots	2
Integrated Graphics	Yes
DirectX Support	DirectX 10.1 (depends on CPU)
