Intel H61 Express User Manual

23
User can press the right or left arrow key on the keyboard to switch from menu bar.
The selected one is highlighted.

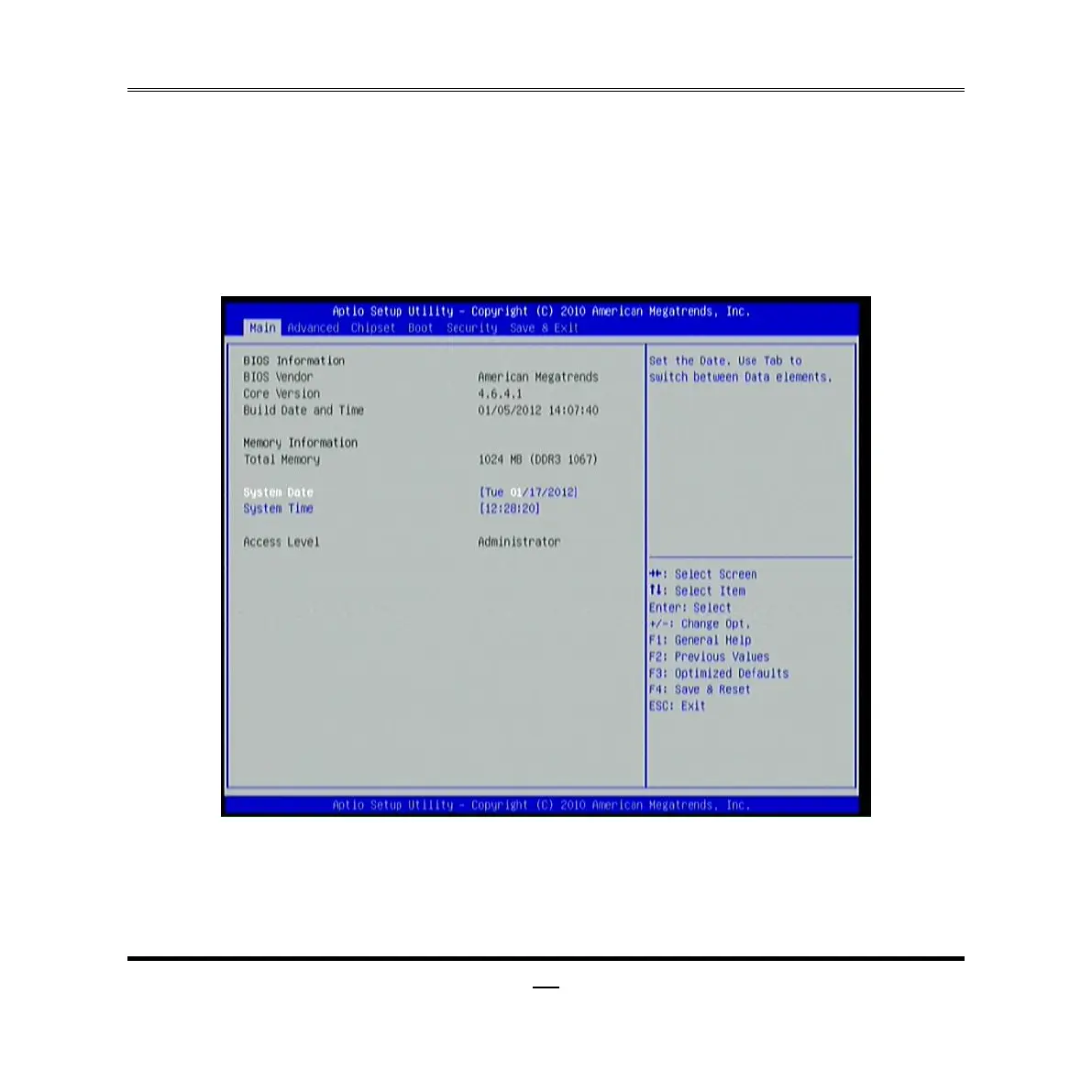

3-6 Main Menu
Main menu screen includes some basic system information. Highlight the item and
then use the <+> or <-> and numerical keyboard keys to select the value you want in
each item.
System Date
Set the date. Please use [TAB] to switch between data elements.
System Time
Set the time. Please use [TAB] to switch between time elements.

Intel H61 Express Specifications

General

Chipset	Intel H61 Express
Socket	LGA 1155
Memory Type	DDR3
Max Memory	16 GB
PCI Express Revision	2.0
USB Ports	Up to 10 USB 2.0 ports
SATA Ports	4 SATA 3Gb/s ports
RAID Support	No
LAN Speed	10/100/1000 Mbps
Memory Slots	2
Integrated Graphics	Yes
DirectX Support	DirectX 10.1 (depends on CPU)
