Name: Intel H61 Express
Brand: Intel
Rating: 4 (1 reviews)

To Next Page

To Previous Page

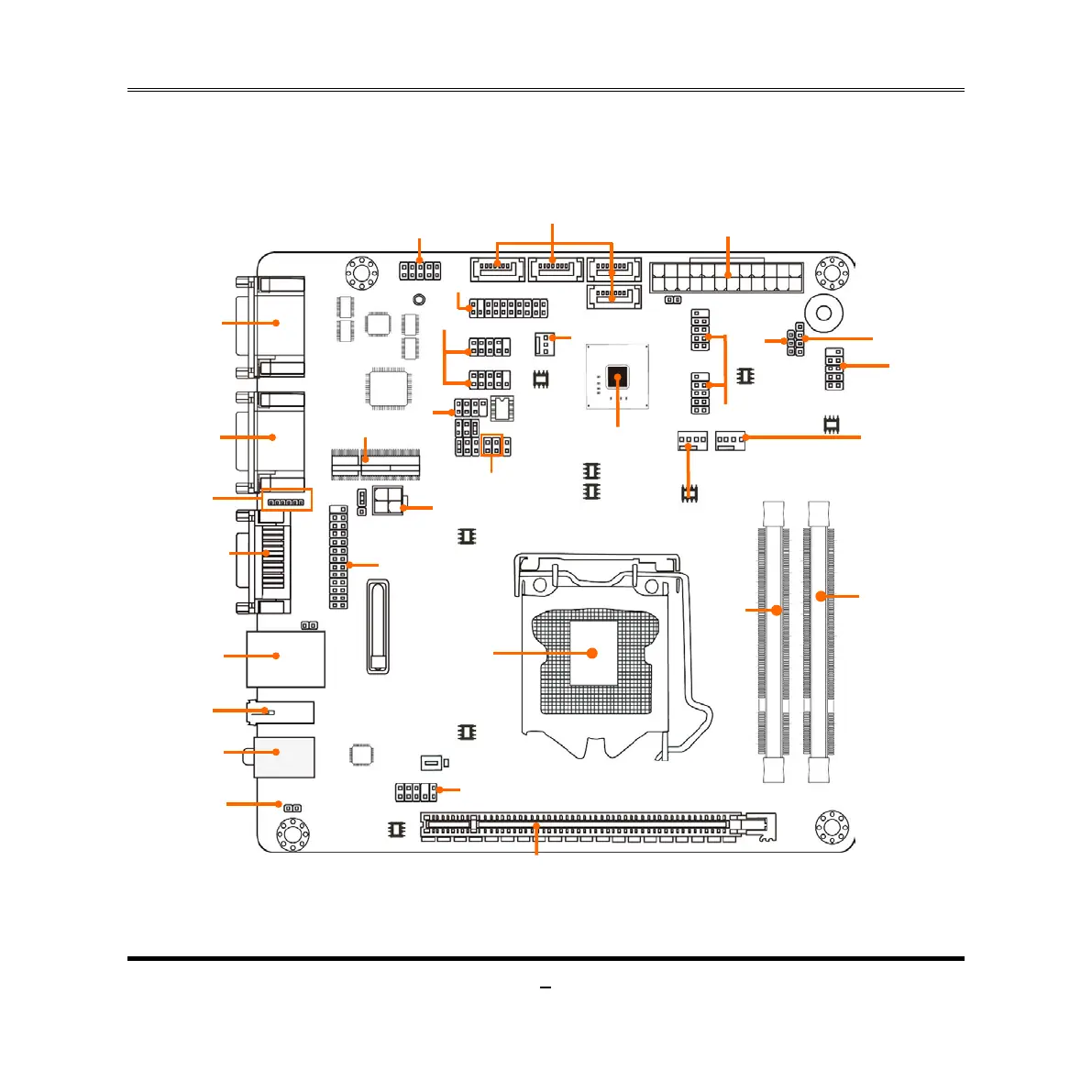

Motherboard Internal Diagram

USB Headers

ATX Power Connector

ATX 12V Power Connector

Speaker Header

Audio Connector

Intel LGA1155

CPU Socket

HDMI_SPDIF

Header

GPIO Header

Intel H61 Chipset

PCI Express 2.0 x16 by 16 Lane slot

CPUFAN Header

SATAII Ports

PWRLED

Header

Front Panel

Audio Header

Front Panel

Header

SYSFAN1 Header

CIR Header

TX-RX COM6

Header

Serial Ports

DVI-D Port

over VGA Port

RJ-45 Port over

USB Ports

USB Port

Parallel Port

Header

TPM Header

Serial Port Headers

SYSFAN2Header

PS/2 KB &MS

Header

SODIMM1

Slot

SODIMM2

Slot

Mini-PCIE Slot

Questions and Answers:

Need help?

Do you have a question about the Intel H61 Express and is the answer not in the manual?

Intel H61 Express Specifications

General

Chipset	Intel H61 Express
Socket	LGA 1155
Memory Type	DDR3
Max Memory	16 GB
PCI Express Revision	2.0
USB Ports	Up to 10 USB 2.0 ports
SATA Ports	4 SATA 3Gb/s ports
RAID Support	No
LAN Speed	10/100/1000 Mbps
Memory Slots	2
Integrated Graphics	Yes
DirectX Support	DirectX 10.1 (depends on CPU)
