Intel MFSYS25V2 Configuration Guide

July 12
Intel® Modular Server Configuration Guide
Page 4 of 15

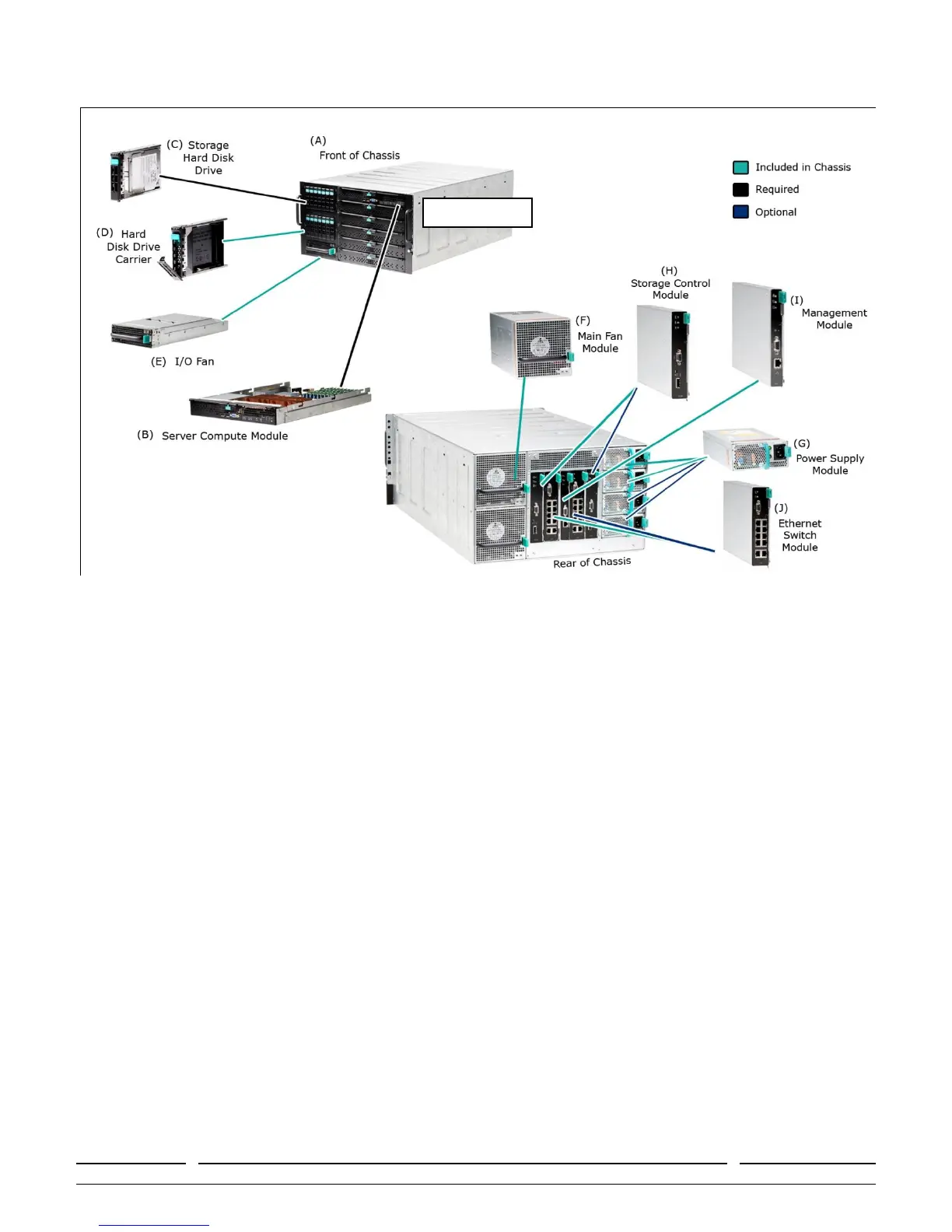

The Intel® Modular Server Configuration Chart
A) Chassis
 Up to 6 Server Compute Modules
B) Server Compute Module: Required
 MFS2600KI or MFS5520VIR
 Supports multi-core Intel® Xeon® Processors
 Up to 16 DDR3 DIMMs, depending on compute module
 Supports Optional Dual Gigabit Mezzanine expansion card
C) Storage Hard Disk Drive: Required
 Up to fourteen 2.5” SAS drives on MFSYS25V2
D) Hard Disk Drive Carrier:
 14 are included in MFSYS25V2
E) Hot Swappable I/O Fan Module: Included
F) Hot Swappable Main Fan Module: Included
G) Power Supply Module: 2 Included, 2 Optional
 N + 1 Redundancy
H) Storage Control Module: 1 Included, 1 Optional
 Up to 2 Storage Control Modules for redundancy
I) Management Module: Included
J) Ethernet Switch Module: 1 Included, 1 Optional
 Up to 2 Ethernet Switch Modules
 Each module features 10/100/1000GbE Full Duplex Ports
** Power Supply Notes
 A minimum of one 1000-Watt power supply is required to turn on a compute module
 One power supply will support 1 compute module plus all other modules in the system
 Two power supplies will support up to 3 compute modules (in any slot) plus all other modules in the system
 Three power supplies will support up to 6 compute modules (in any slot) plus all other modules in the system
 Any additional power supplies above minimum required (based on configuration) provides redundancy
