2.0 Open the Chassis

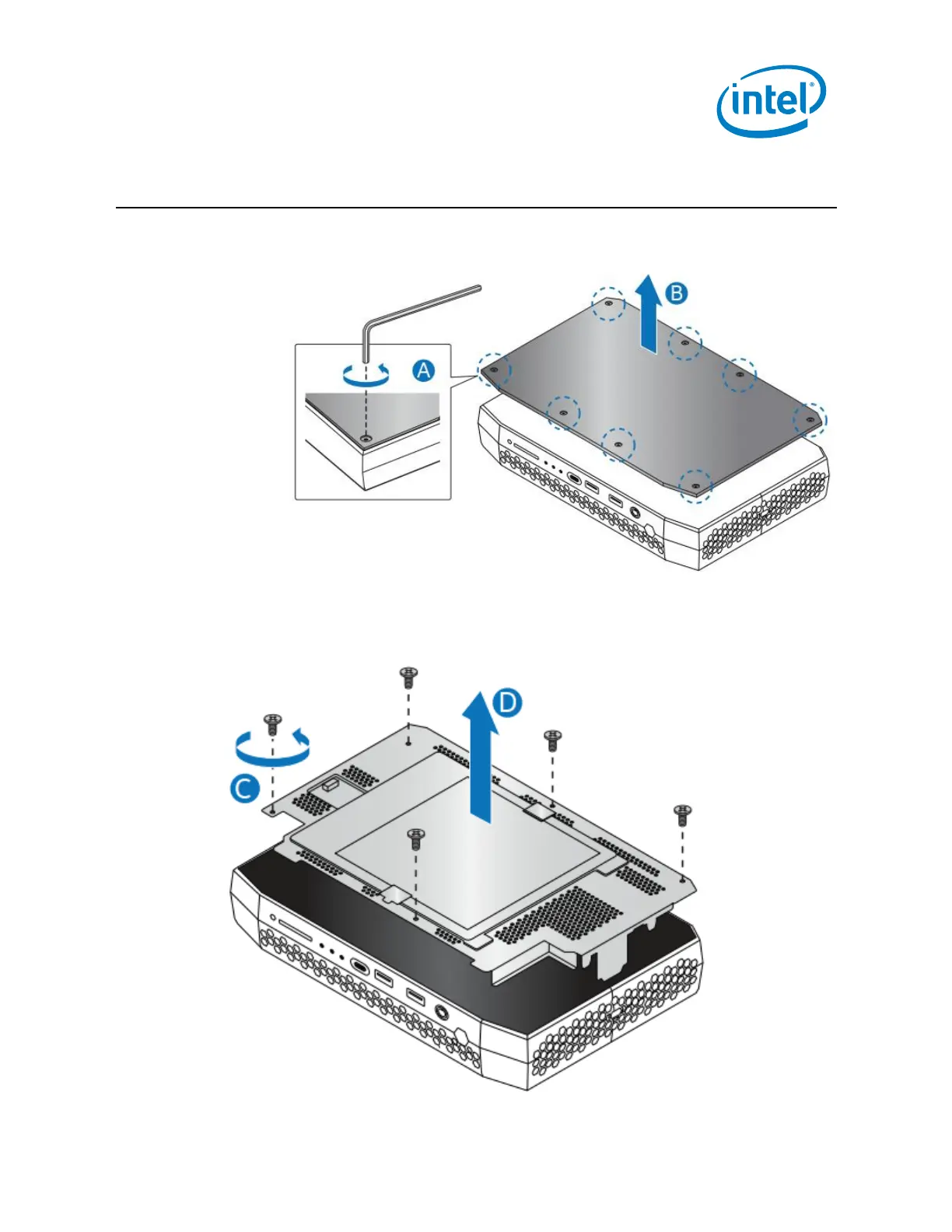

1. Unscrew the 8 screws on the top side of the chassis (A) and lift the cover (B):
2. Unscrew the 5 screws on the metal plate (C) and lift it (D):
