NUC12DCM / NUC12EDB
User Guide – February 2022

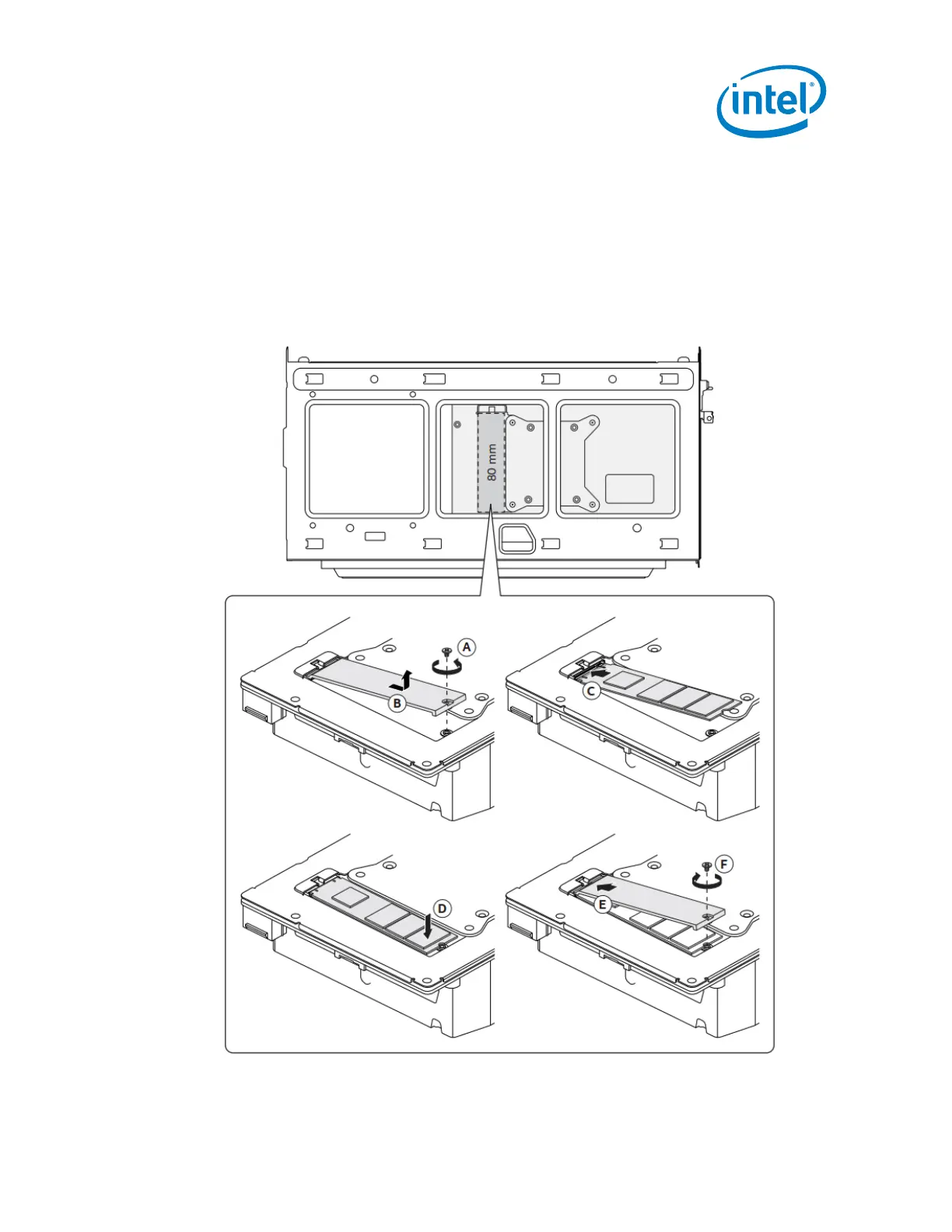

To install M.2 SSD to the CPU attached slot:
1. Remove the small screw from the storage cover panel (A) and shift it out and up from the
m.2 slot (B).
2. Remove the pre-installed SSD from the connector if there are any.
3. Align the space at the bottom of the new M.2 SSD to the key on the connector and
slide the SSD into the m.2 slot (C)
4. Press the card down (D).
5. Install (E) and secure back the storage cover panel with the small screw (F)
