Intel NUC Kit NUC5PGYH User Guide
5
Upgrade System Memory
Intel NUC Kit NUC5PGYH has a 2GB DDR3L memory module already installed. You can upgrade to a
larger capacity module if you wish. Memory requirements:
 1.35V low voltage memory
 1066 MHz or 1600 MHz SO-DIMMs (1333 MHz modules will operate at 1066 MHz)
 Non-ECC
 Max memory – 8GB
Find compatible memory modules in the Intel® Product Compatibility Tool.
To upgrade memory:
1. Remove the pre-installed SO-DIMM, following these steps:
a. Observe the precautions in "Before You Begin" on page 2.
b. Gently spread the retaining clips at each end of the SO-DIMM socket. The SO-DIMM
pops out of the socket.
c. Hold the SO-DIMM by the edges, lift it away from the socket, and store it in an
anti-static package.
d. Reinstall and reconnect any parts you removed or disconnected to reach the SO-DIMM
sockets.
e. Replace the computer’s cover and reconnect the AC power cord.

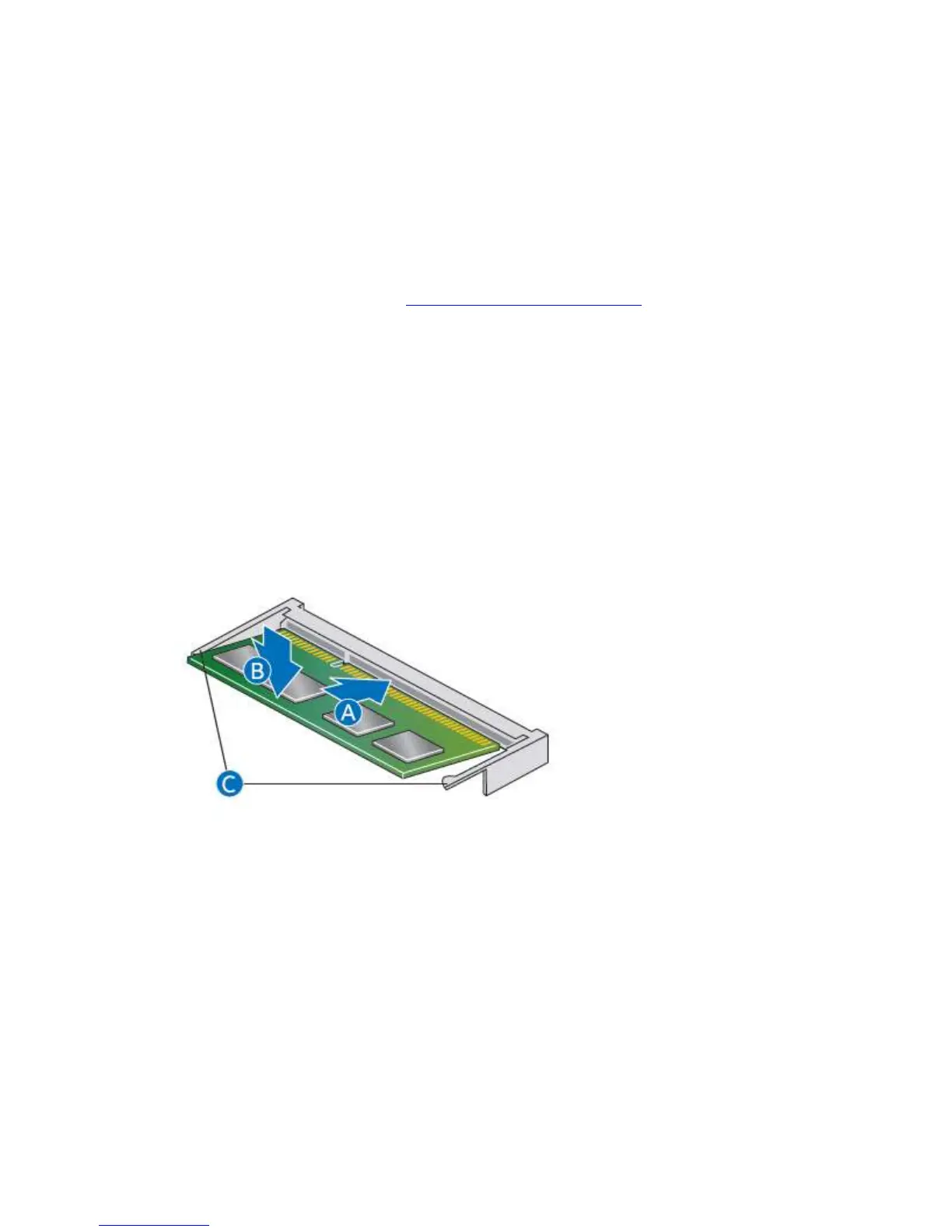

2. Install the new SO-DIMM, following these steps:
a. Align the small notch at the bottom edge of the SO-DIMM with the key in the socket
(A).
b. Insert the bottom edge of the SO-DIMM into the socket.
c. When the SO-DIMM is inserted, push down on the outer edge of the SO-DIMM (B)
until the retaining clips snap into place. Make sure the clips are firmly in place (C).

Intel NUC5PGYH Specifications

General

Status	Discontinued
BIOS type	EEPROM
Product type	Mini PC
Motherboard chipset	-
Audio output channels	7.1 channels
Motherboard form factor	UCFF
Removable memory card slot	SDXC with UHS-I support
Supported RAID configuration	N/A
Trusted Platform Module (TPM)	No
HDD size	2.5 \
Storage media	Flash
Card reader integrated	Yes
Total storage capacity	32 GB
Compatible memory cards	SDXC
Embedded storage capacity	32768 MB
Number of storage drives installed	1
Power supply	65 W
DC input voltage	12 - 19 V
Power supply input voltage	19 V
Bus type	DMI
Stepping	C0
Tjunction	90 °C
Product family	Intel NUC
Product series	Intel NUC kit
Processor cache	2 MB
Processor cores	4
Processor model	N3700
System bus rate	2.5 GT/s
Processor family	Intel Pentium N
Processor series	Intel® Pentium N3000 Series for Mobile
Processor socket	BGA 1170
Product codename	Grass Canyon
Processor codename	Braswell
Processor frequency	1.6 GHz
Processor cache type	L2
Processor lithography	14 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor boost frequency	2.4 GHz
Processor operating modes	64-bit
PCI Express configurations	1x2, 1x4, 2x2, 2x1, 4x1
Thermal Design Power (TDP)	6 W
Scenario Design Power (SDP)	4 W
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1600 MHz
Memory bandwidth supported by processor (max)	12.8 GB/s
Maximum internal memory supported by processor	8 GB
Processor code	SR29E
Processor ARK ID	87261
Processor package size	25 x 27 mm
Intel Smart Connect Technology version	0.00
Intel Identity Protection Technology version	1.00
Chassis type	Nettop
Product color	Black, Silver
Cable lock slot type	Kensington
Number of execution units	16
Discrete graphics card model	Not available
Number of displays supported	2
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	400 MHz
On-board graphics card dynamic frequency (max)	700 MHz
Number of displays supported (on-board graphics)	3
ARK ID	88065
Form factor	UCFF (4\
Audio channels	7.1
Graphics output	VGA (HDB15); HDMI 1.4b
Additional headers	2x USB2.0, AUX_PWR
USB ports quantity	6
Maximum internal memory	8192 MB
Optical drives quantity	0
Export Control Classification Number (ECCN)	5A992C
Intel® Virtualization Technology (Intel® VT)	VT-x, VT-d
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Memory slots	1x SO-DIMM
Internal memory	2 GB
Memory channels	Single-channel
Memory layout (slots x size)	1 x 2 GB
Operating system installed	Windows 10
Pre-installed operating system	Windows 10, 64-bit*
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
HDMI version	1.4b
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
M.2 card slot (wireless)	2230 (E-key)
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Cabling technology	10/100/1000Base-T(X)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 3165
Ethernet LAN data rates	10, 1000, 100 Mbit/s
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	-20 - 70 %
Sustainability certificates	RoHS
Certification	IEC, UL, EN, CAN/CSA-C22.2, CISPR 22, FCC, ICES-003, EN, VCCI V3, KN, CNS, WEEE
Processor included	Intel® Pentium® Processor N3700 (2M Cache, up to 2.40 GHz)
Market segment	Desktop
Last change	63903513
Built-in WiFi	Intel Wireless-AC 3165 + Bluetooth 4.2
Supported storage drives form factor (internal)	2.5\
Harmonized System (HS) code	8471500150

Weight and Dimensions

Depth	111 mm
Width	115 mm
Height	51.6 mm
Weight	- g
