Intel NUC6i7KYK Quick Start Guide

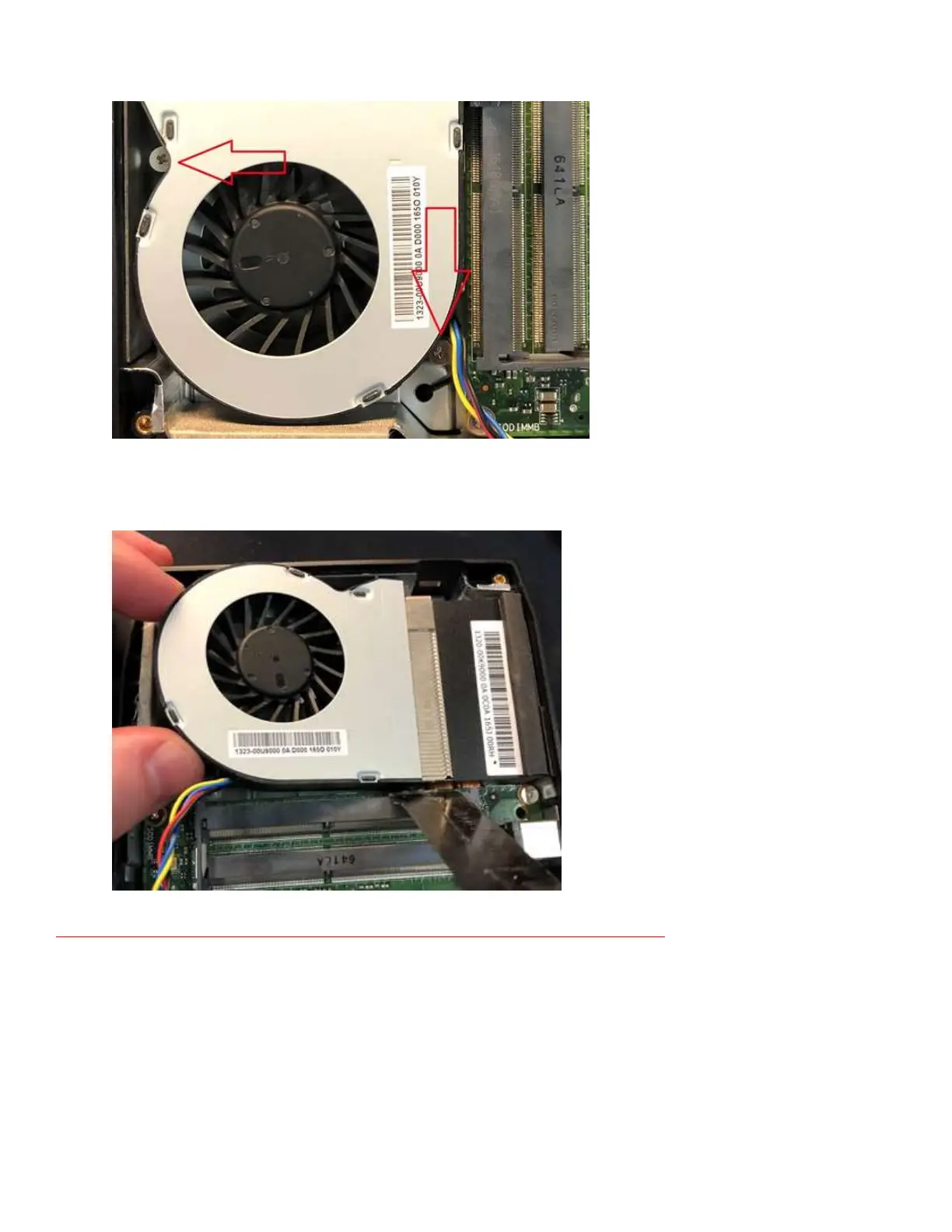

4. Remove the two screws that secure the fan assembly to the heatsink.
5. To remove the fan, lift the circular fan hub while pulling the fan towards you. There may be some
resistance from the black tape on the underside of the fan - this is normal - a little wiggling from side to
side may help.
Warning! Don’t remove the heat sink from the motherboard.

Intel NUC6i7KYK Specifications

General

Processor	Intel Core i7-6770HQ
Graphics	Intel Iris Pro Graphics 580
Dimensions	211 mm x 116 mm x 28 mm
Memory	up to 32GB
Storage	M.2 SSD (PCIe x4 NVMe or SATA), 2.5" HDD/SSD (SATA)
Connectivity	Intel Wireless-AC 8260 + Bluetooth 4.2
Ports	4x USB 3.0, 1x HDMI 2.0, 1x Mini DisplayPort 1.2
Audio	7.1 digital audio via HDMI and Mini DisplayPort, Headphone/Microphone jack
Ethernet	Intel i219-V 10/100/1000 Mbps Ethernet
Card Reader	SDXC card slot with UHS-I support
Power Supply	19V
Operating System Support	Windows 10
