Intel NUC6i7KYK Quick Start Guide

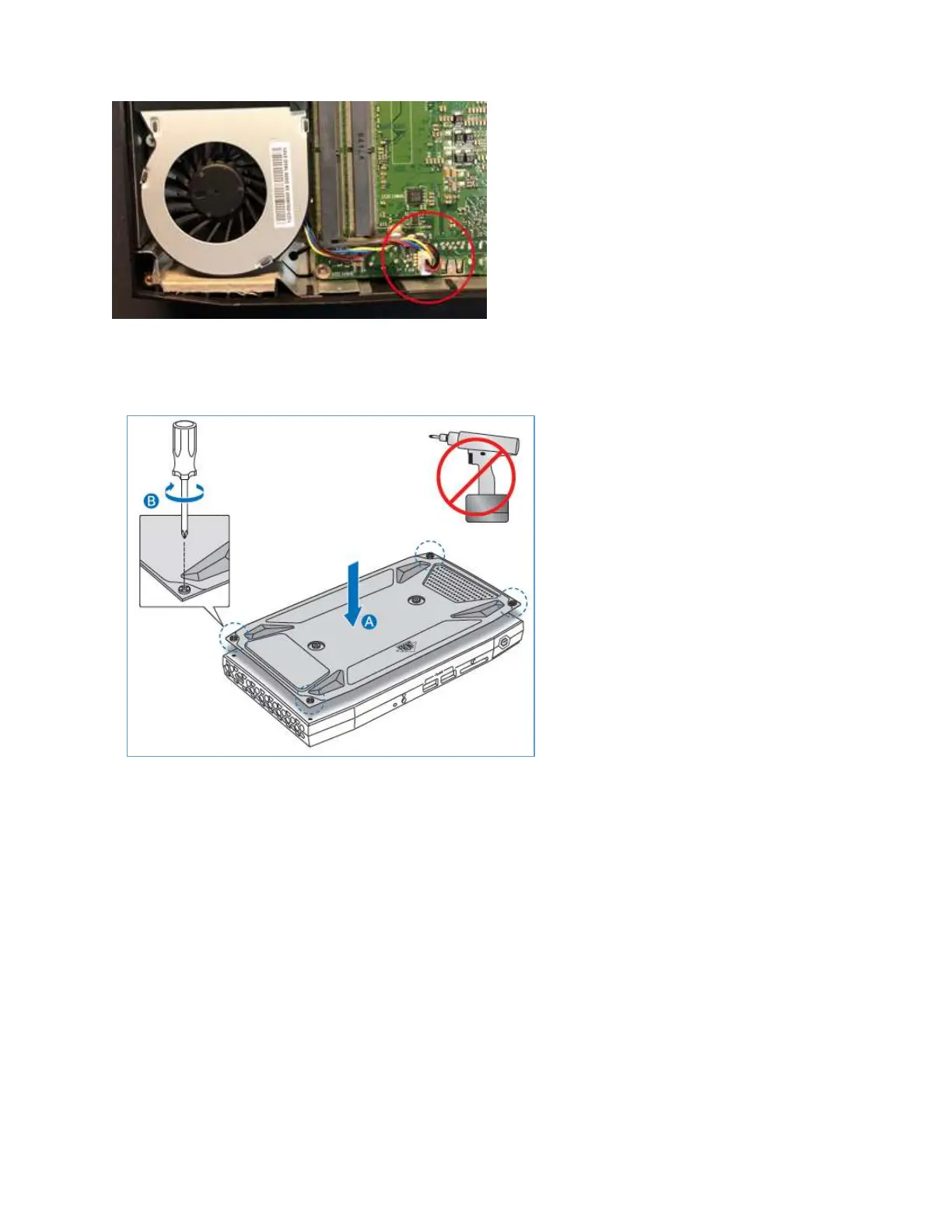

5. Reconnect the fan cable connector to the fan header on the motherboard.
6. Close the chassis. Intel recommends this be done by hand with a screwdriver to avoid over-
tightening and possibly damaging the screws.

Intel NUC6i7KYK Specifications

General

Processor	Intel Core i7-6770HQ
Graphics	Intel Iris Pro Graphics 580
Dimensions	211 mm x 116 mm x 28 mm
Memory	up to 32GB
Storage	M.2 SSD (PCIe x4 NVMe or SATA), 2.5" HDD/SSD (SATA)
Connectivity	Intel Wireless-AC 8260 + Bluetooth 4.2
Ports	4x USB 3.0, 1x HDMI 2.0, 1x Mini DisplayPort 1.2
Audio	7.1 digital audio via HDMI and Mini DisplayPort, Headphone/Microphone jack
Ethernet	Intel i219-V 10/100/1000 Mbps Ethernet
Card Reader	SDXC card slot with UHS-I support
Power Supply	19V
Operating System Support	Windows 10
