Intel NUC7i3BNK User Manual

Intel NUC Kit NUC7i5BNK & NUC7i3BNK User Guide
3
This guide tells you how to:
• Install an M.2 SSD
• Install and remove memory
• Install a VESA mount bracket
• Connect power
• Install an operating system
• Install the latest drivers

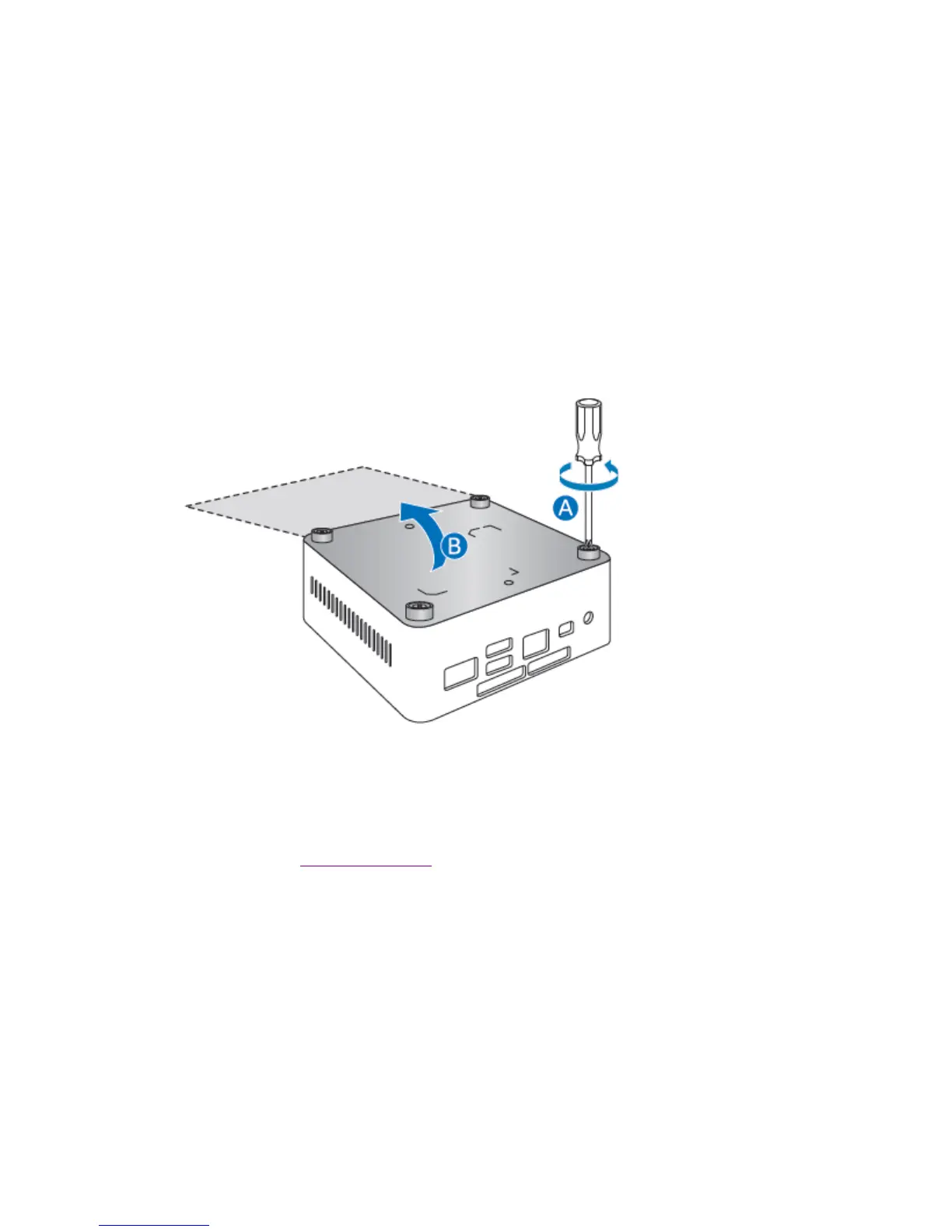

Open the Intel NUC Chassis
To open the Intel NUC chassis, follow these steps:
1. Unscrew the four corner screws on the bottom cover of the chassis and lift the cover.
Install an M.2 SSD
Intel NUC Kits NUC7i3BNK and NUC7i5BNK support 80mm, 60mm, and 42mm M.2 SSDs. For a list of
tested M.2 SSDs, go to the Tested Peripherals page on the Support site.
Observe the precautions in "Before You Begin" on page 2.
If you are installing an 80mm M.2 SSD:
1. Remove the small silver screw from the 80mm metal standoff on the motherboard (A).
2. Remove the standoff from the 42mm position (B).
3. Align the small notch at the bottom edge of the M.2 card with the key in the connector.

Intel NUC7i3BNK Specifications

General

BIOS type	EEPROM
BIOS memory size	64 Mbit
Processor socket	BGA 1356
Audio output channels	7.2 channels
Number of processors supported	1
Processor cores	2
Processor model	i3-7100U
Processor family	Intel® Core™ i3
Processor threads	4
Built-in processor	Yes
Processor codename	Kaby Lake
Processor frequency	2.4 GHz
Processor lithography	14 nm
Processor manufacturer	Intel
Thermal Design Power (TDP)	15 W
Compatible memory cards	SDXC
Storage drive interface	M.2, PCI Express, Serial ATA III
Supported storage drive types	SSD
ECC	No
Memory voltage	1.2 V
Memory channels	Dual-channel
Memory slots type	SO-DIMM
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	2133 MHz
Maximum graphics card memory	32768 MB
On-board graphics card model	Intel® HD Graphics 620
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.2
USB 2.0 ports quantity	0
ARK ID	95069
Chassis type	UCFF
Cooling type	-
Product type	Mini PC barebone
Product color	Black
LED indicators	Power
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Power supply	65 W
Power supply type	External AC adapter
AC adapter output voltage	19 V
PCI Express slots version	3.0
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
Processor ARK ID	95442
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	111 mm
Width	115 mm
Height	35 mm
