Intel NUC8i7HN - Back Panel Connectors; Figure 7. Back Panel Layout; Table 11. Components Shown in Figure 7

36
2.2.2 Back Panel Connectors

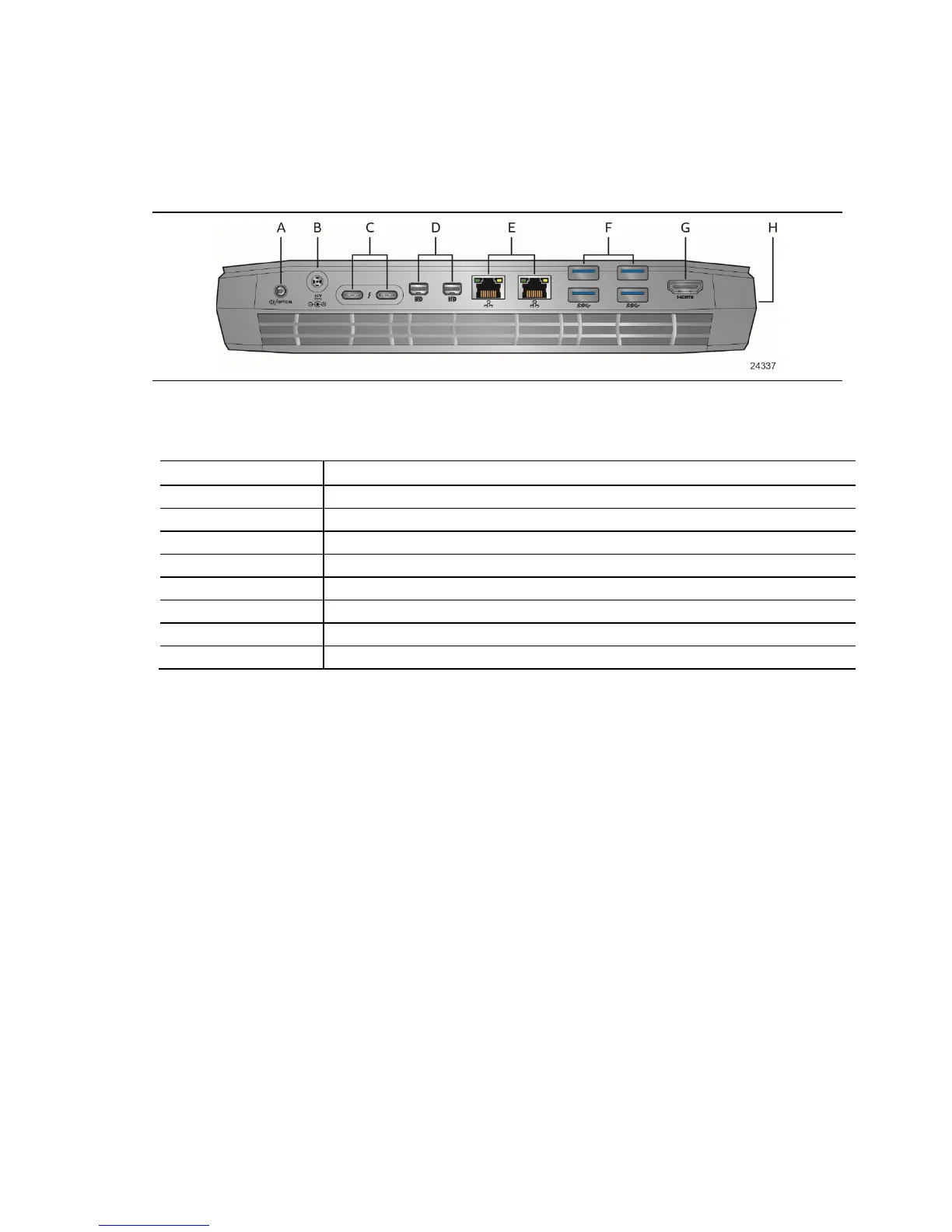

Figure 7 shows the location of the components on the back of the Intel NUC Kit NUC8i7HN
chassis.
Figure 7. Back Panel Layout
Table 11. Components Shown in Figure 7
Item from Figure 7
Description
A
Speaker/SPDIF
B
19.5v DC power input jack
C Thunderbolt™ 3 port (Type C)
D
Mini DisplayPort connectors
E
Ethernet Ports
F
USB 3.0 Ports
G HDMI Connector
H
Anti-Theft key lock hole (located on side of unit)
