7
NUC9VXQNX, NUC9V7QNX, NUC9i9QNX, NUC9i7QNX, NUC9i5QNX
User Guide – May 2020
2.0 Open the Chassis

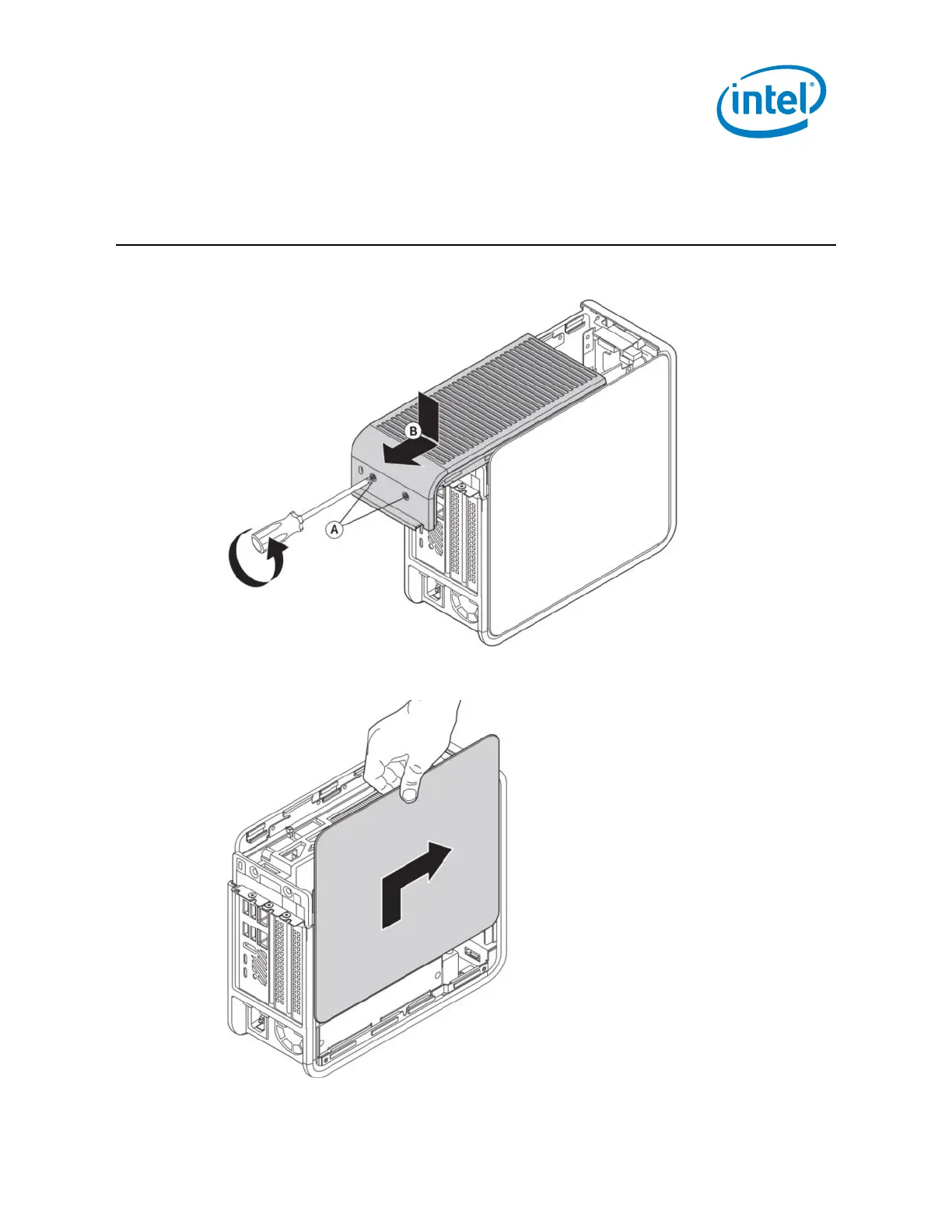

1. Unscrew the two top screws on the rear side of the chassis and shift the cover:
2. Remove the left side panel:
