9.3 Server Board Power Requirements
This section provides power supply design guidelines for a system using the Intel
®
Server Board S2600IP and Workstation Board
W2600CR including voltage and current specifications, and power supply on/off sequencing characteristics. The following diagram
shows the power distribution implemented on these server boards.

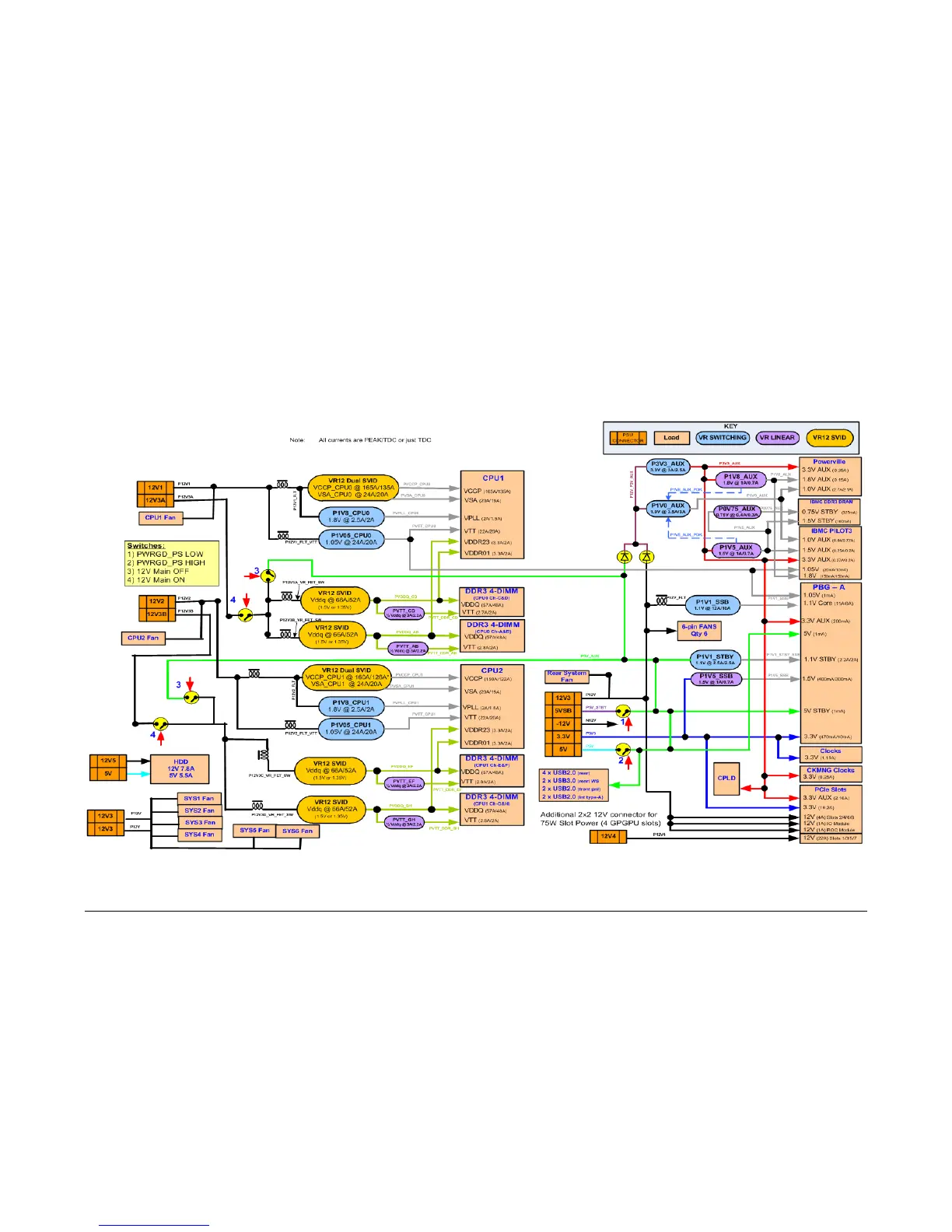

Figure 32. Power Distribution Block Diagram
