Intel® Server Board S2600IP and Intel® Workstation Board W2600CR TPS Product Overview
Revision 1.1 9
Intel order number G34153-003
Callout
Description
Callout
Description
A
7.1 Channel HD Audio Jack Connector
E
Diagnostics LED’s
B
USB3.0 Port 0(bottom) and 1(top)
F
ID LED
C
NIC Port 1, USB Port 0 (bottom) and 1
(top)
G
Status LED
D
NIC Port 2, USB Port 2 (bottom) and 3
(top)

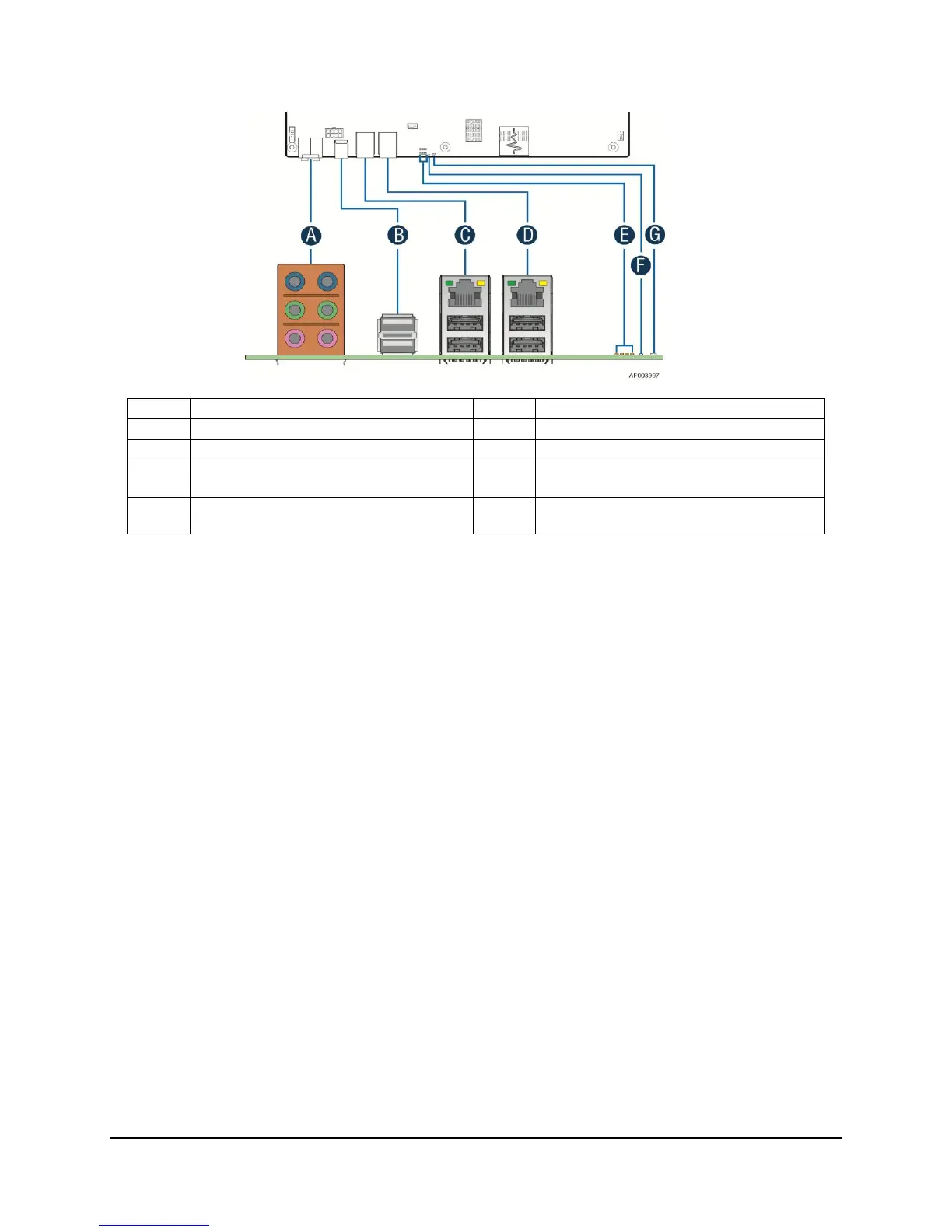

Figure 5. Intel
®
Workstation Board W2600CR Rear I/O Layout
