Intel WRTD-303N User Manual

5
Content Access Point
User Guide
2.2 Update a whole new device
1. Take out the Content Access Point, connect the power supply.

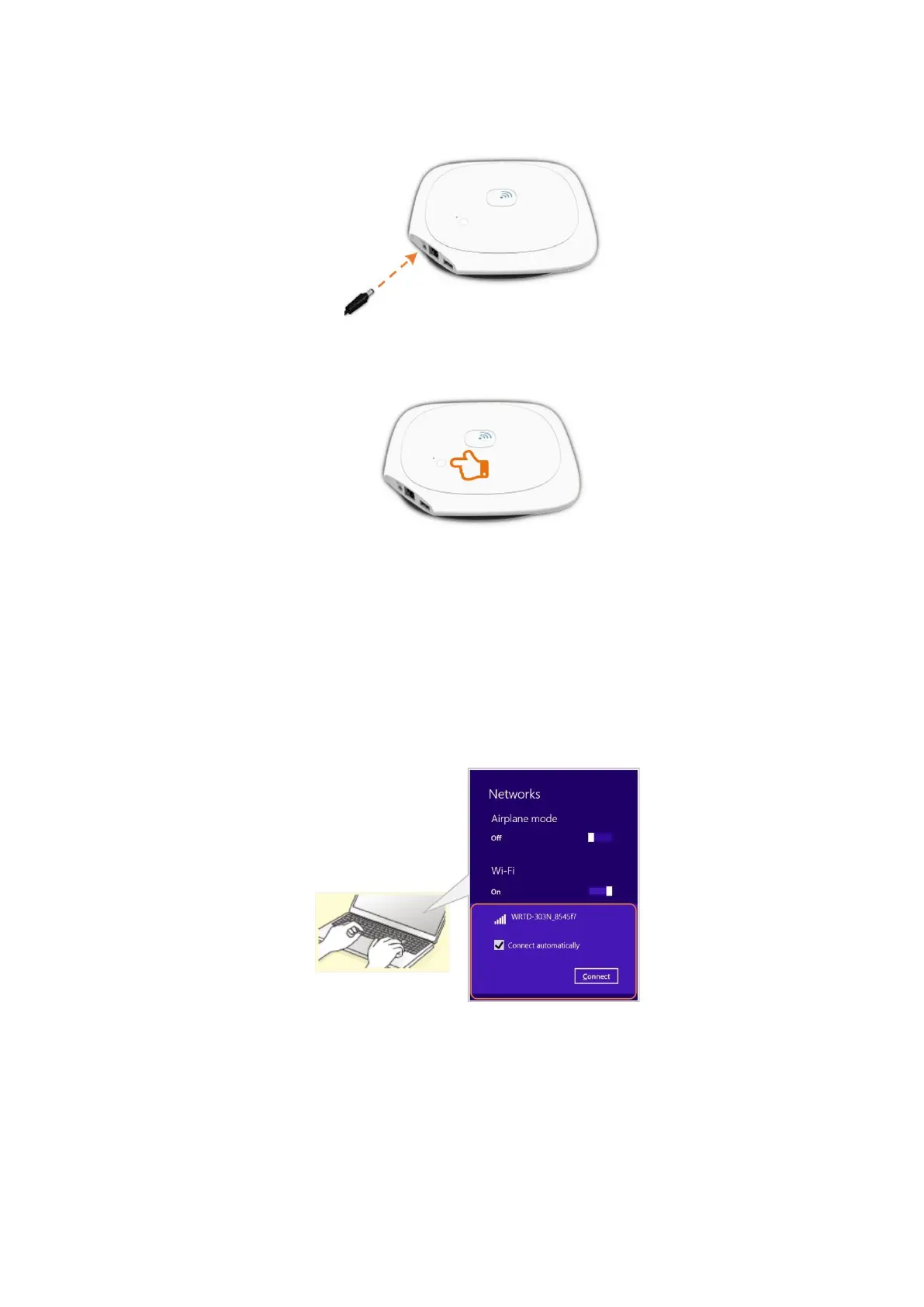

Figure 5: connect the power supply
2. Power up the device by pressing and holding the power button for two seconds.
Figure 6: Power button
3.
Wirelessly connect to the device using its default SSID. The default SSID is Model Name_xxxxxx (Please
see Figure 1 to find the Model Name), where
“xxxxxx” is the last six digits of the Wi-Fi MAC address
(WFM), which is printed on the bottom of the device. For example, for a device with a WFM of
F835DD85457A, the wireless SSID is WRTD-303N_85457A.
4.
Launch a browser and go to http://my.admin (or http://192.168.88.1:8080).
5.
Enter username admin and password admin.
6.
Change the admin default password when prompted.
Figure 7: Admin – Wirelessly connect to the Content Access Point

Intel WRTD-303N Specifications

General

Brand	Intel
Model	WRTD-303N
Category	Wireless Access Point
Language	English
