8
2. According to the cabinet model that will be used, check the image below for the
locks that are used to fit each of the models above:
Model 1Model
2

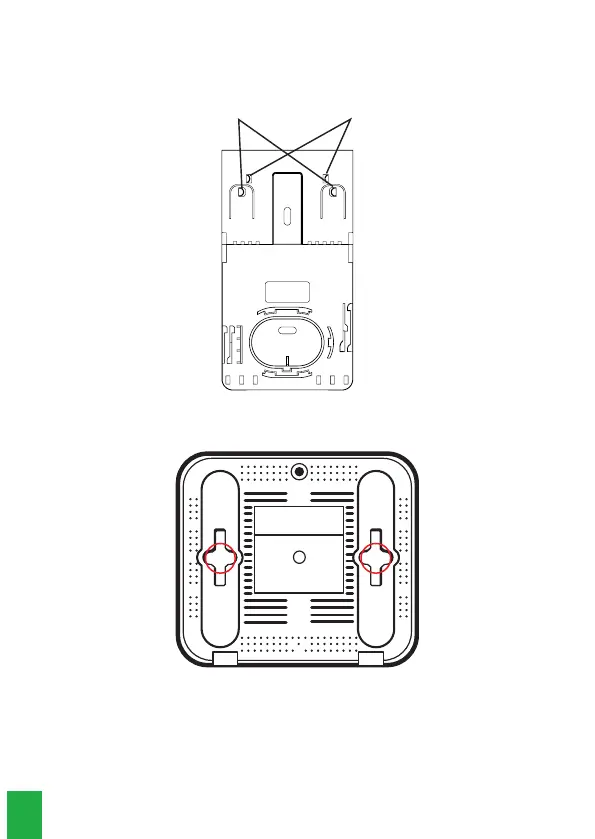

the base lock with the spacing on the ONU. The 3. With the locks identified, align
image below shows the spacing for Model 1:
Sentido da conexão
ONU
Trava do conector
ROSETA
90 cm
