ONU aligned,
slide the ONU into the central region
the ONU being
fixed on the holder, as shown in the
4. With the ONU Holder and the
of the holder. This will result in
following figure:
Sentido da conexão
ONU
Trava do conector
ROSETA
90 cm

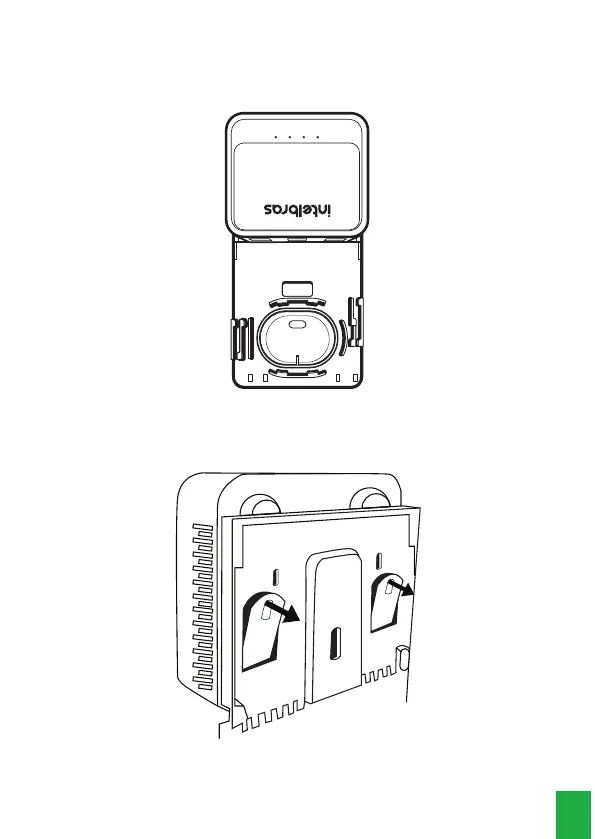

5. For the ONU Model 1 cabinet, the locks that are used for the Model 2
will be pushed back as soon as the ONU is docked on the base of the holder, as
shown in the picture below:
For the next steps, the ONU Model 1 cabinet will be used as an example, but the
steps are similar if the Model 2 cabinet is used.
