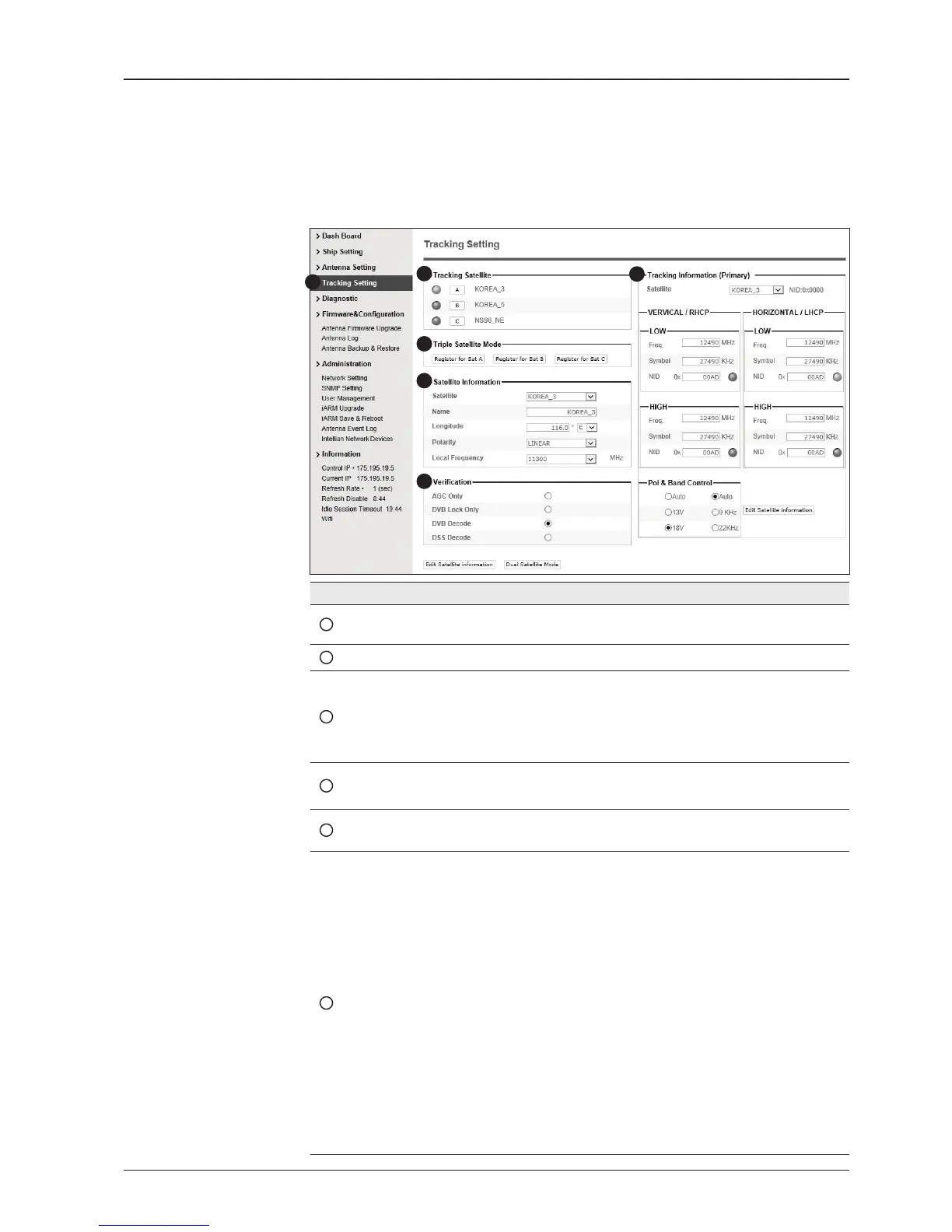

Tracking Setting
No. Item Description
1
Tracking Setting
Display or set current tracking satellite and tracking
information.
2
Tracking Satellite Select the tracking satellite.
3
Triple Satellite Mode
Register the selected satellite in Tracking Satel-
lite for Sat A, Sat B or Sat C. To select between
Dual-Sat mode and Triple-Sat mode, press the 'Dual
Satellite Mode' button or 'Triple Satellite Mode' but-
ton on the bottom of the screen.
4
Satellite Information
Set the satellite name, longitude, polarization and
local frequency of LNB to be used.
5
Verication
Set the verication type for satellite tracking (AGC
Only, DVB Lock Only, DVB Decode, DSS Decode)
6
Tracking Information
Tracking information consists of frequency, symbol
and NID (Network ID) of a transponder in tracking
satellite. There are four groups of tracking informa-
tion. “Vertical/RHCP” is applied when IRD supply
13V, and “Horizontal/LHCP” is applied when IRD
supply 18V. “LOW” is applied when DiSEqC signal
(0 kHz tone) is not detected from IRD. “HIGH” is ap-
plied when DiSEqC signal (22 kHz tone) is detected
from IRD.
Pol & Band Control: The “Pol” controls 13V (Vertical/
RHCP band) or 18V (Horizontal/ LHCP band). The
“Band” controls DiSEqC 0KHz tone (Low band) and
22KHz tone (High band)
After modifying information, press ‘Edit Satellite In-
formation’ button, then new information is updated
in the antenna.
1
3
4
5
6
2
