Intellian t110Q - Pin Signal

21
INSTALLING THE ANTENNA
5
4
3
2
1
Pins
Connector Threads
5
3
4
1
2
Sockets
Connector Threads
Pin Signal
1 Shield
2 NET-S, (power supply positive, +V)
3 NET-C, (power supply common, -V)
4 NET-H, (CAN-H)
5 NET-L, (CAN-L)
Pin Signal
1 Shield
2 NET-S, (power supply positive, +V)
3 NET-C, (power supply common, -V)
4 NET-H, (CAN-H)
5 NET-L, (CAN-L)
Male Connector Female Connector

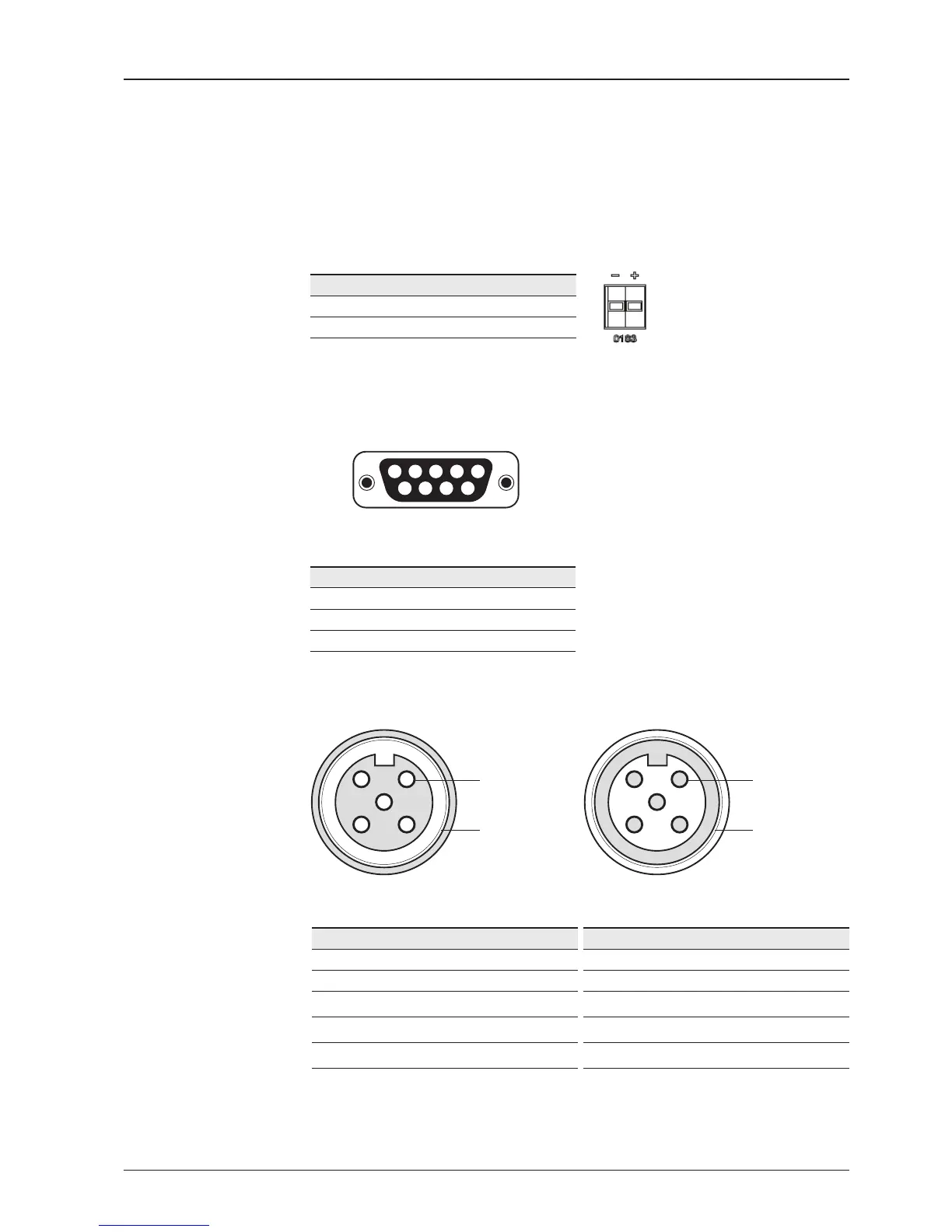

• NMEA 2000 Connector
12345
6789
54321
9876
Pin Signal
1 GND
2 GPS OUT +
5 GPS IN +
Pin Signal
- NMEA 0183 -
+ NMEA 0183 +
ACU GPS In/Out Port
D-Sub 9 pin Female
• GPS Connector
• NMEA 0183 Connector
