Antenna Dimensions
The method of installation and mounting of the antenna may vary with vessel
design but the following procedures are applicable in most situations, and will
result in a secure and effective installation. Conrm the height and diameter of the
antenna before installing it.
Antenna Mounting Templates

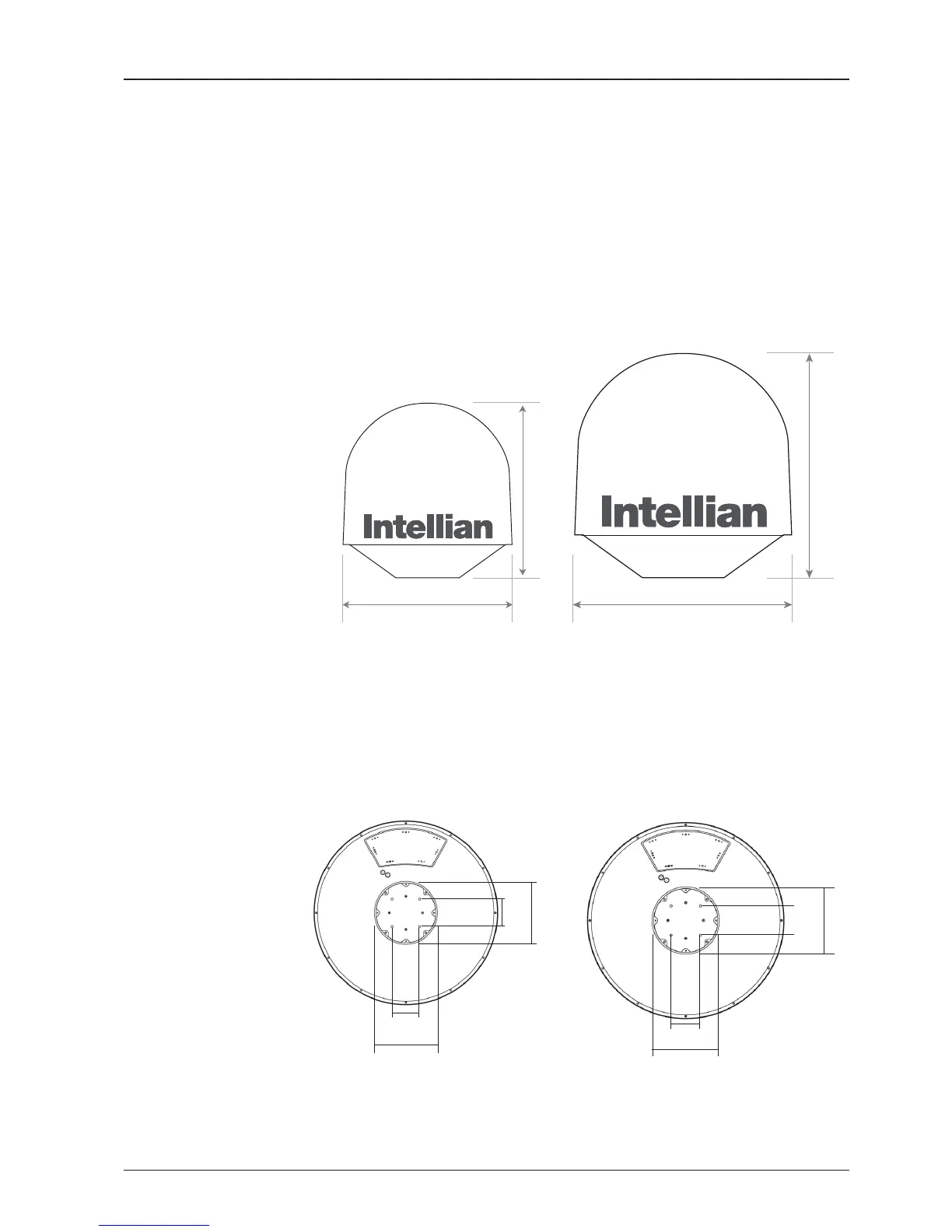

The mounting holes must be in the exact same place as shown in the diagram
below.
142 cm (55.9”)
ø133 cm (52.4”) ø165.2 cm (65”)
168.9 cm (66.5”)
ø54cm (21.3")
ø54cm (21.3")
ø48cm (18.9")
ø48cm (18.9")
24.75cm (9.74")
24.75cm (9.74")
24.75cm (9.74")
24.75cm (9.74")
To Next Page
