t110W/t130W/t110Q/t130Q – Marine Satellite Television System
28
Installing the System Cables
The coax cables must be inserted through the cable strain relief(s) at the base of
the radome. The cables must be routed from the antenna through the deck and
through various ship spaces to the antenna control unit. When pulling the cables
in place, avoid sharp bends, kinking, and the use of excessive force. After place-
ment, seal the deck penetration glad and tie the cables securely in place.

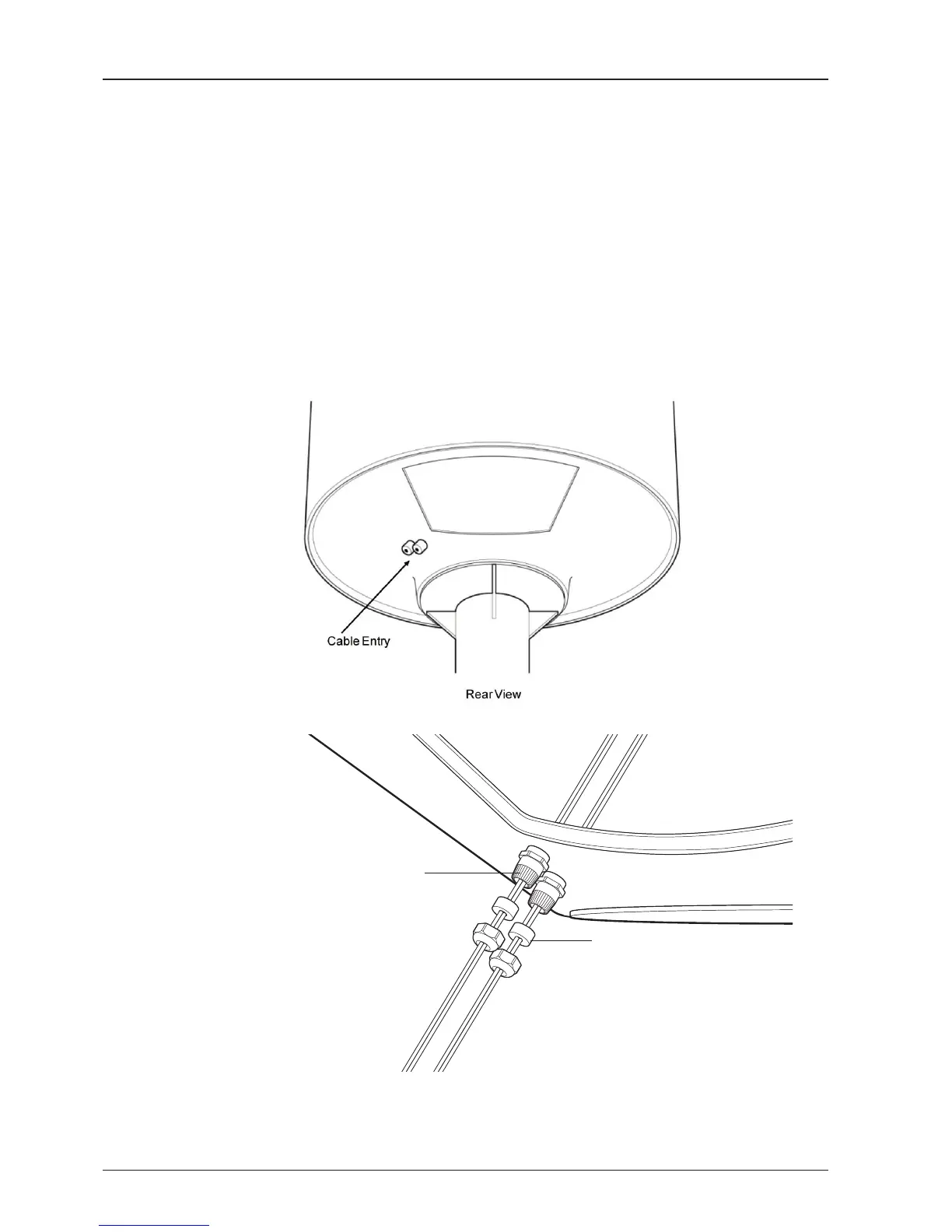

Cable Gland O-ring
Cable Gland
Cable Entry Apertures
NOTE: To prevent cable damage, rst pass the RF cables through the cable entry
apertures into the radome, then connect the RF cables to the cable connectors on
the inside of the radome.
