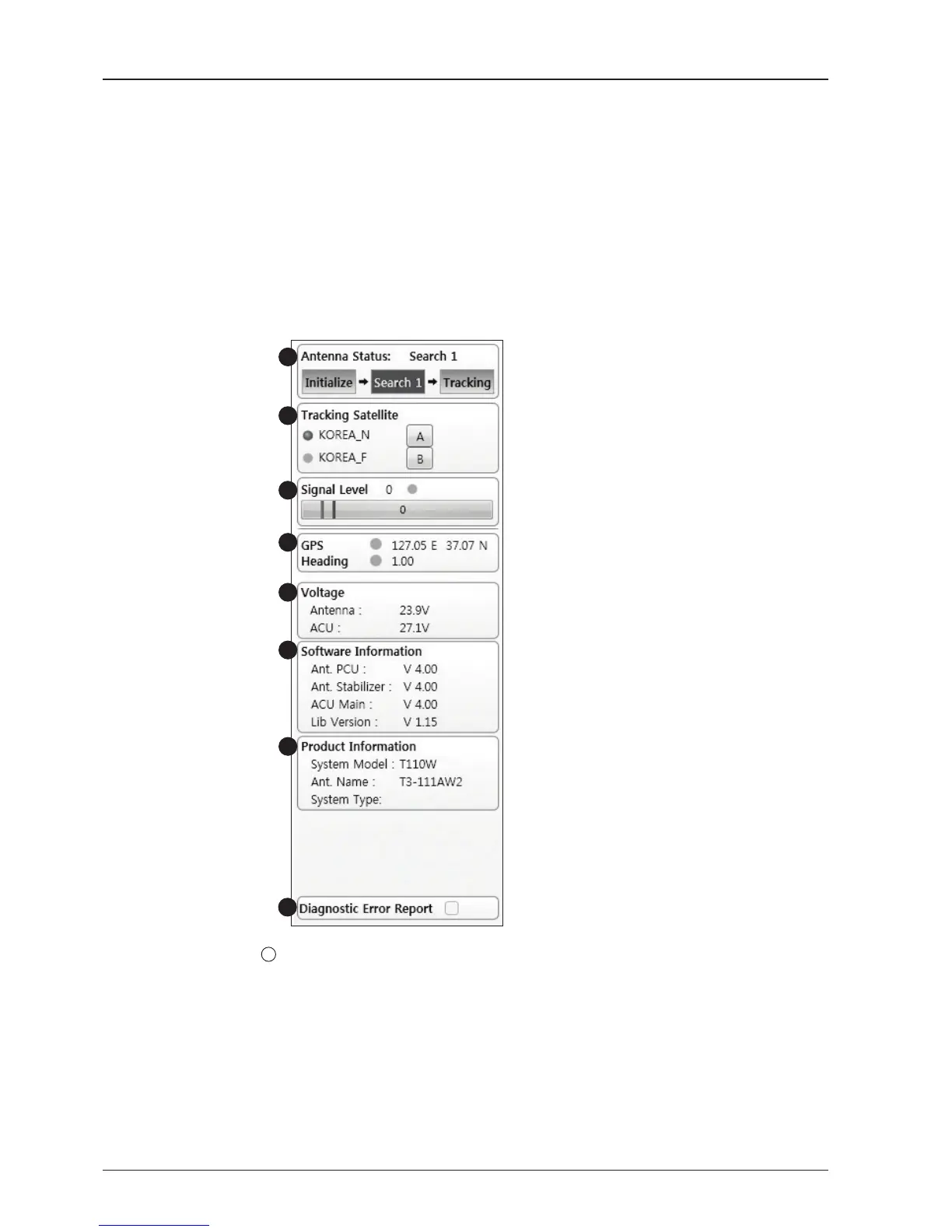

System Property Status Dashboard
The property status dashboard on the left pane of the screen provides the antenna
status, signal level, GPS and heading status, software information, product
information and error status to be monitored quickly.
Antenna Status: Displays the status of the current mode of the antenna.
- Search 1: A Search 1 pattern will automatically be initiated when the ship’s
heading input does not exist or if it fails. The search cycle will repeat until the
antenna receives the lock signal from the receiver or until the DVB transponder
of the target satellite is decoded by the antenna.
- Search 2: A search 2 pattern will automatically be initiated when the AGC falls
below the current threshold setting (indicates that satellite signal has been lost).
Search is conducted in a two-axis pattern consisting of alternate movements in
azimuth (AZ) and elevation. The search cycle will repeat until the antenna
receives the lock signal from the satellite receiver or the DVB transponder of the
target satellite is decoded by the antenna.
