No. Item Description
1
Dash Board Displays current antenna status to be quickly monitored.
2
Current Antenna
Position /
Target Antenna
Position
Displays current antenna position.
- Relative Azimuth: displays antenna relative AZ angle.
- Absolute Azimuth: displays antenna absolute AZ angle.
- Elevation: displays antenna elevation angle.
- LNB Pol Angle: displays LNB pol angle.
- Heading: displays ship’s heading information
3
GPS
Displays current GPS information.
- Longitude (East / West)
- Latitude (North / South)
4
Heading
Device
Displays current Heading Device: NONE, NMEA, NMEA 2000,
Ground test If the ship’s gyro input is other than NMEA sepa-
rate purchase of GYRO Converter is required.
- Heading: displays ship’s heading information.

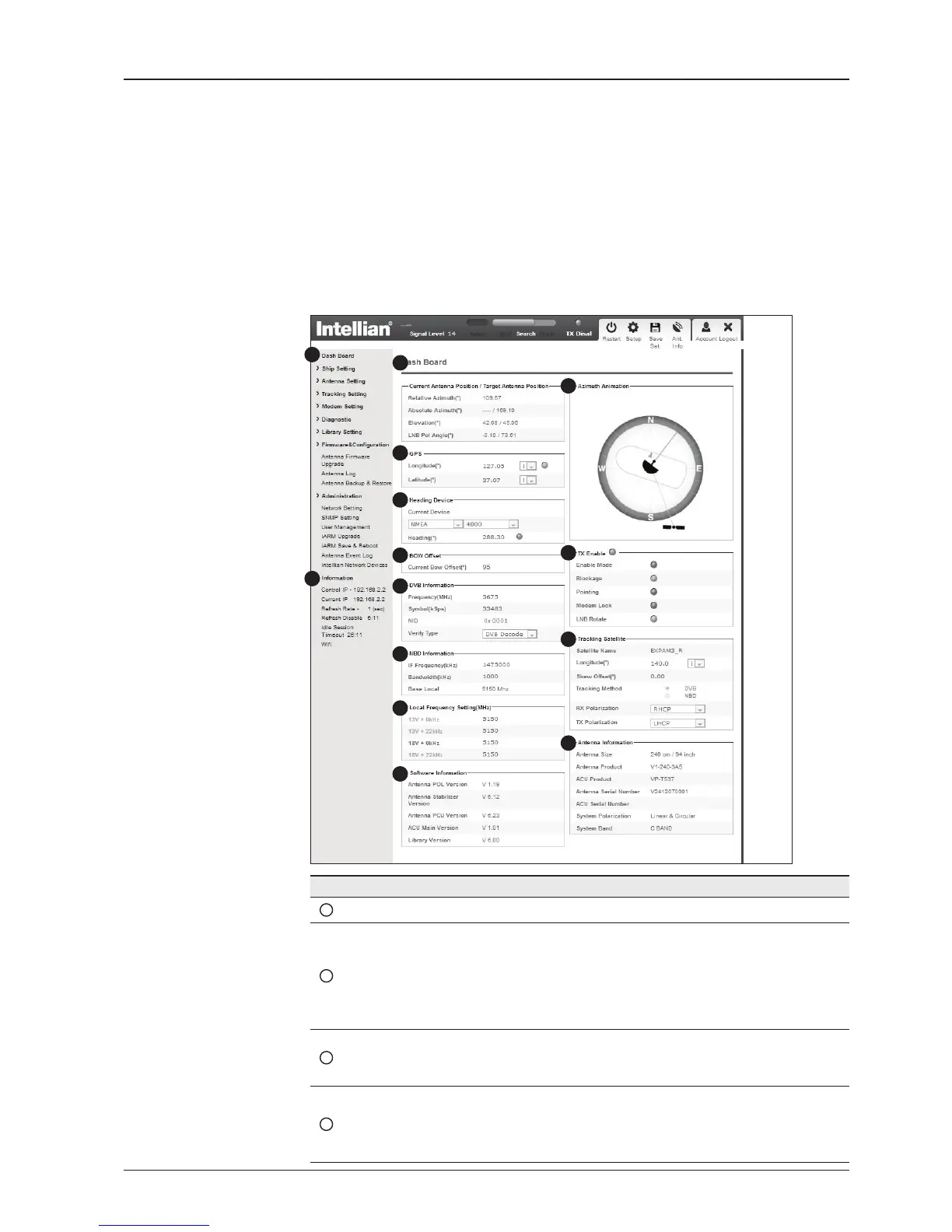

Dash Board & Information
On the left side of the page, Dash Board and Information menus are displayed
as below to provide quick monitoring of the antenna status and settings. Other
menus are displayed only in the Control & Monitoring MENU and their functions
will be described in the next sections.
1
3
4
5
6
7
8
9
10
11
12
13
14
