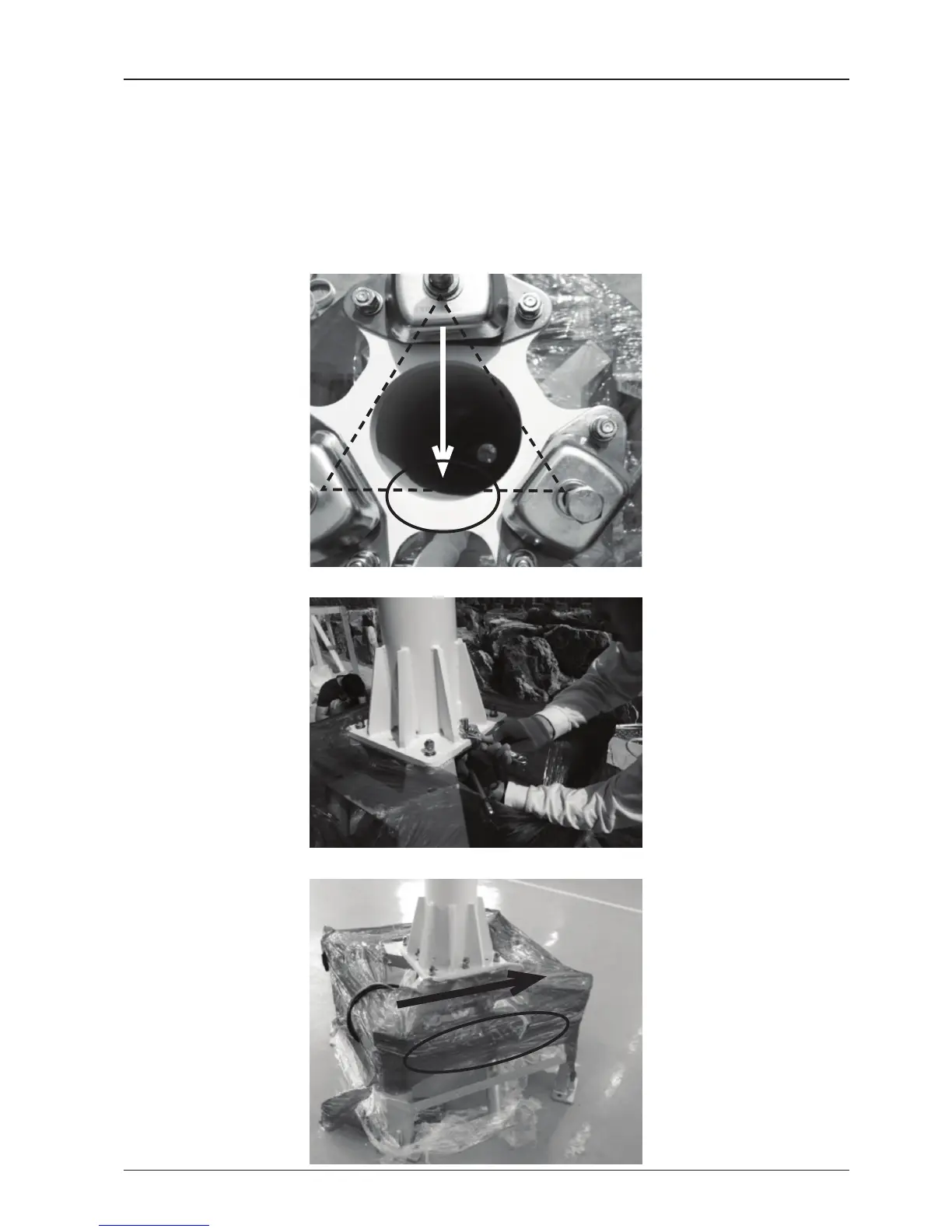

INSTALLING THE ANTENNA
Secure the lower pedestal
to the base frame with
the 8 M12 x 60 bolts
supplied. Lock the bolts
by installing double nuts
onto the bolts. Make
sure to apply Loctite 262
to the bolts to securely
tighten the assembly.
Now for the nal time,
please make sure that
the post is attached in
accordance with correct
bow direction. Power
switch unit mount plate
should be on the right
side when looking from
stern to bow of the base
assembly.
D.
E.
Please note the bow
direction as shown left.
C.
BOW Direction
Power Switch Unit
Mount Plate
