13. Assembly of Upper Antenna and Post

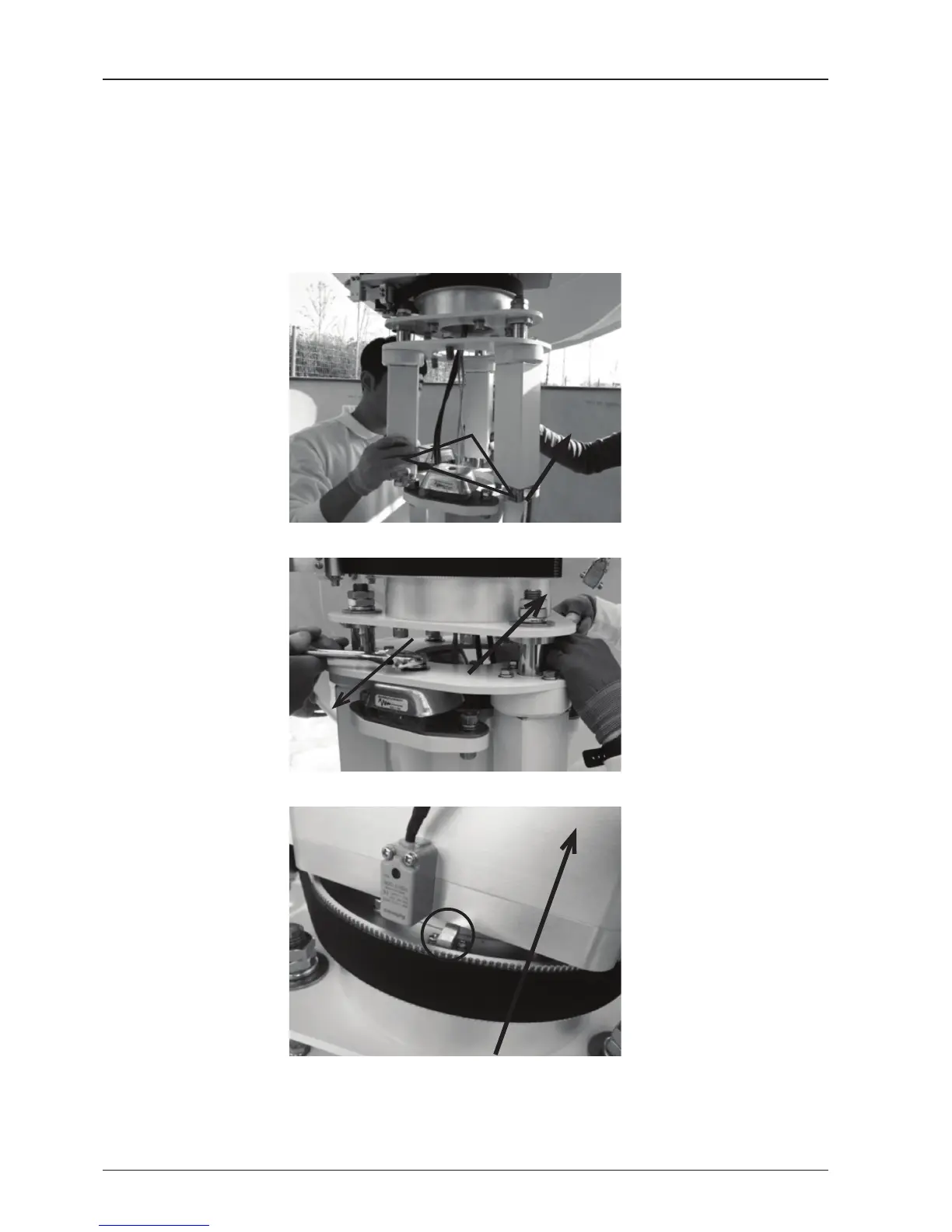

Locate the power and RF
cables as shown.
Insert the 3 M16 x 40
bolts to secure the
antenna assembly to the
pedestal. Make sure
to apply Loctite 262
to securely tighten the
assembly.
The system should be
mounted so the AZ
sensor is on the stern
position of the base
assembly.
A.
B.
C.
BOW Direction
BOW Direction
BOW Direction
