Intellian v240C User Manual

43
INSTALLING THE ANTENNA
NOTE: Bow Direction
should be the opposite of
Hatch.
Apply silicon
(Sikaex-291) to side of
radome panels before
applying bolts.
B.
C.

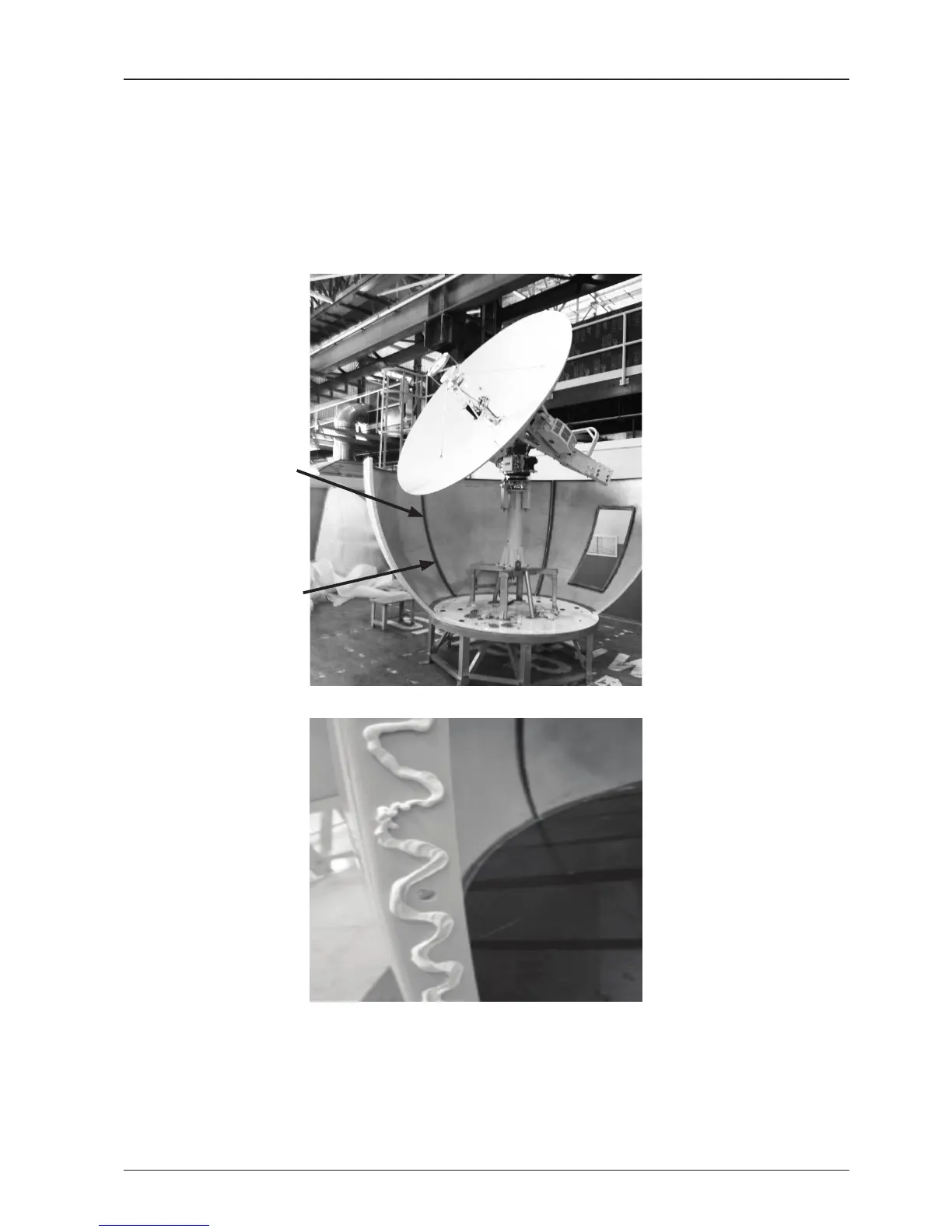

Now assemble the lower
radome panels. M6x35L
bolts are used for the
connection between
panels, and M6x30L bolts
are used for connection
between panels and base
frame.
M6x35L
M6x30L
A.
14. Assembly Lower Radome panels and Base Frame
