INSTALLING THE ANTENNA

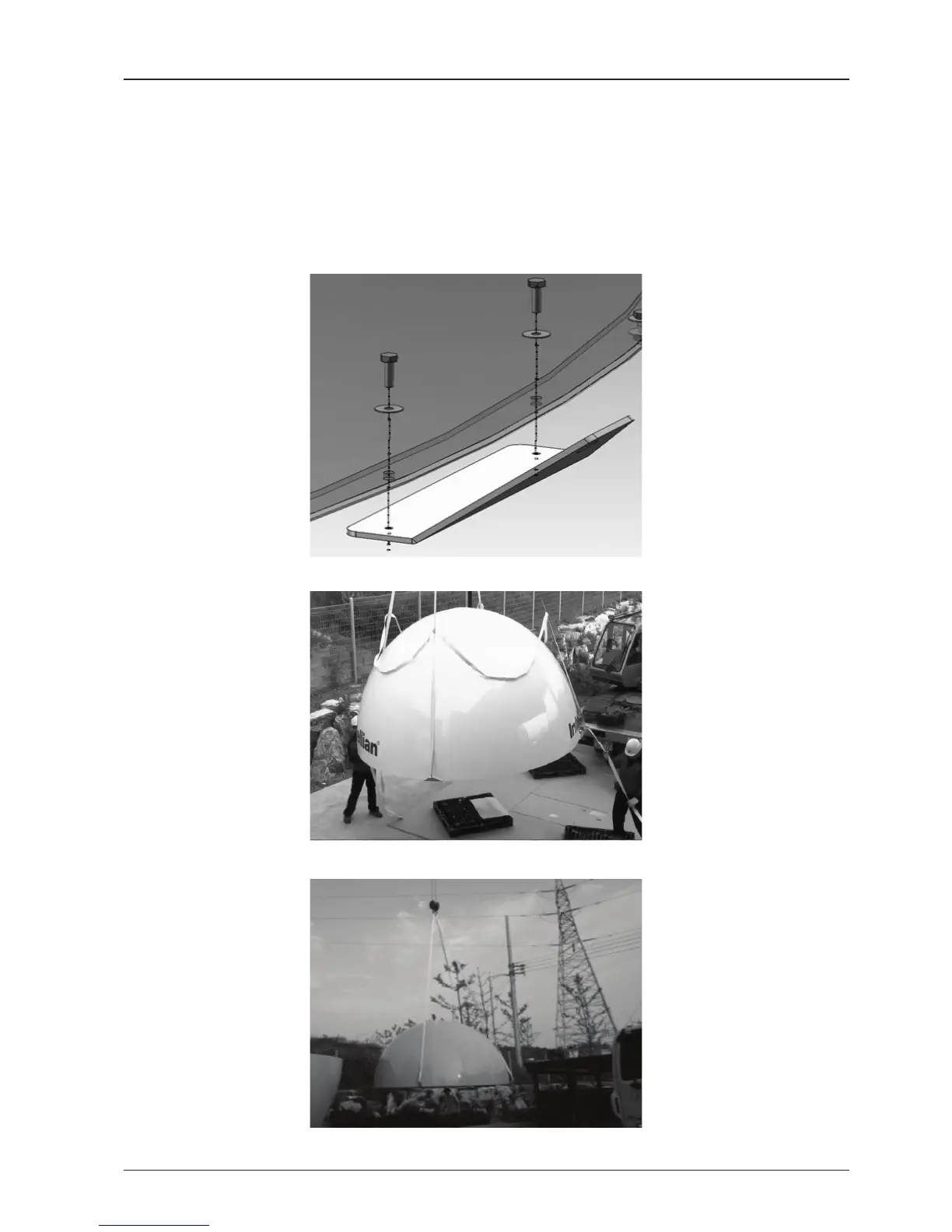

20. Final Assembly of Radome
There are 4 sets of M6x35
Hex Bolts and Nuts that
should be applied to 4
locations of the upper
radome. The assembly
shown on right should be
constructed on each of 4
locations.
Connect the lifting strap
to the radome.
Radome should be lifted
up slowly as shown by a
crane.
A.
B.
C.
