v80G – Marine Satellite Communication System
26

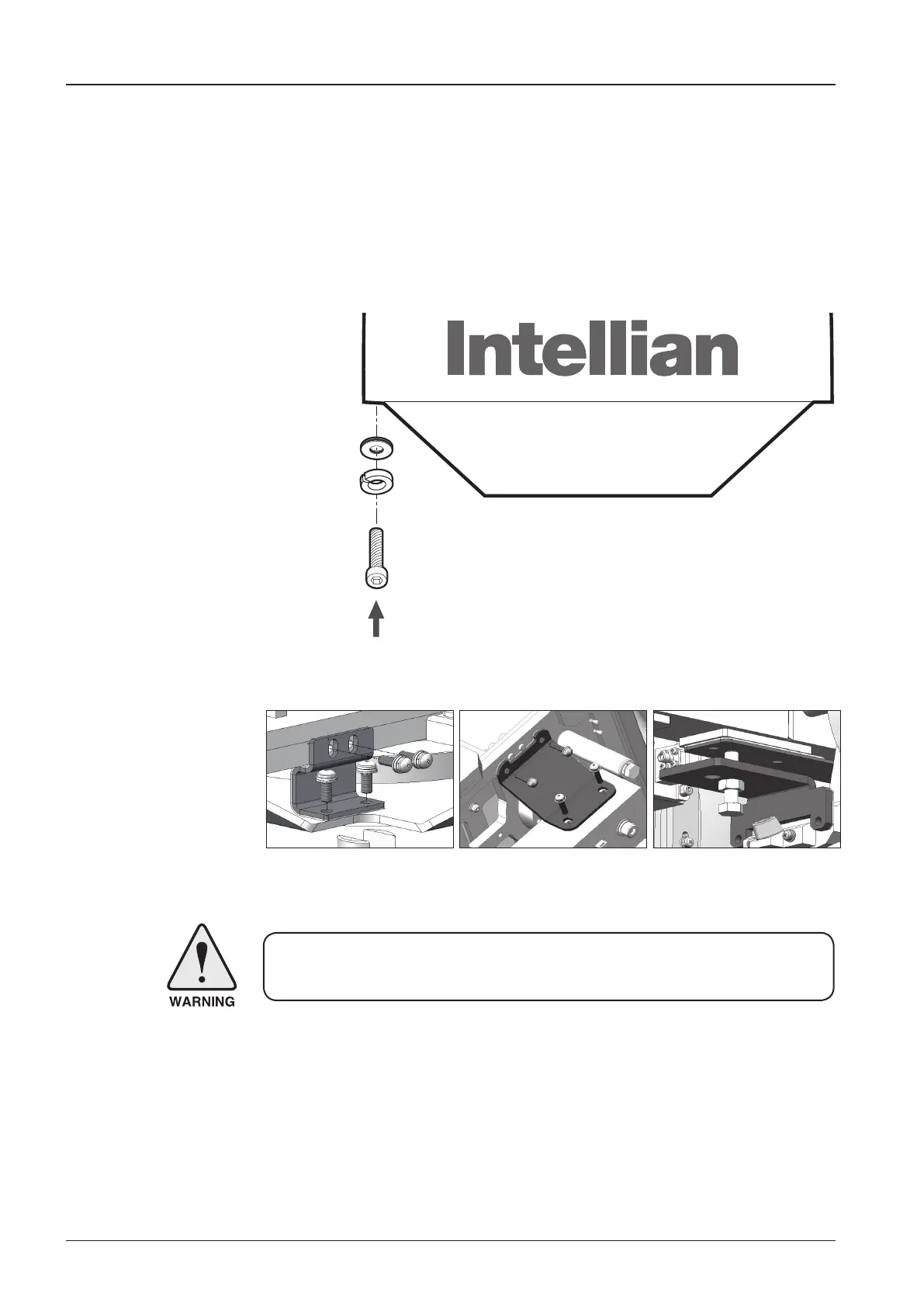

Step 4.
Open the top and remove the shipping brackets. Using your hand, gently check that the
antenna moves freely in azimuth, elevation, and cross level.
M6 Flat Washer
M6 Spring Washer
M6 Hex Wrench Bolt
WARNING: Do not turn on the antenna power if the shipping brackets from the
pedestal have not been removed completely.
AZ EL CL
To Next Page
