INSTALLING THE ACU
Selection of ACU Installation Site
The ACU should be installed below deck, in a location that is:
• Dry, cool, and ventilated.
• The front panel should be easy to access.

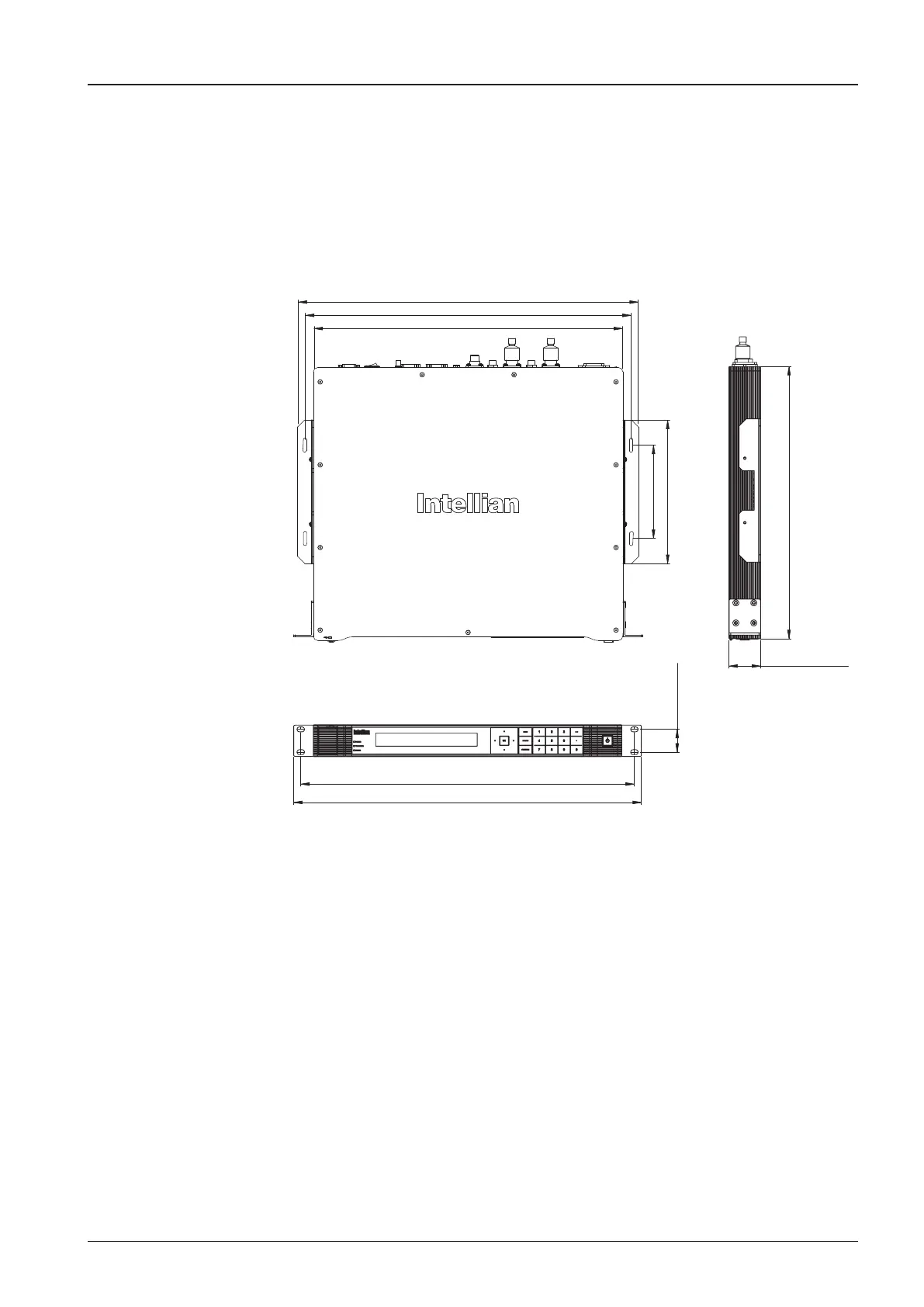

ACU Dimensions
Dimension of ACU
48.5 cm (19.1")
46.6 cm (18.4")
3.2 cm (1.3")
4.4 cm (1.7")
38 cm (15")
43.1 cm (17")
47.5 cm (18.7")
45.5 cm (17.9")
20.0 cm (7.9") 13.0 cm (5.1")
