131 Eisenhower Lane North
Lombard, IL 60148
630.268.0010 / 1.800.251.2408
P/N 53-00684-200 Rev. A 071301
www.Intellitecsve.com
Intellitec
INSTALLATION & SERVICE MANUAL
TM
50 AMP Smart Energy Management System Model 900

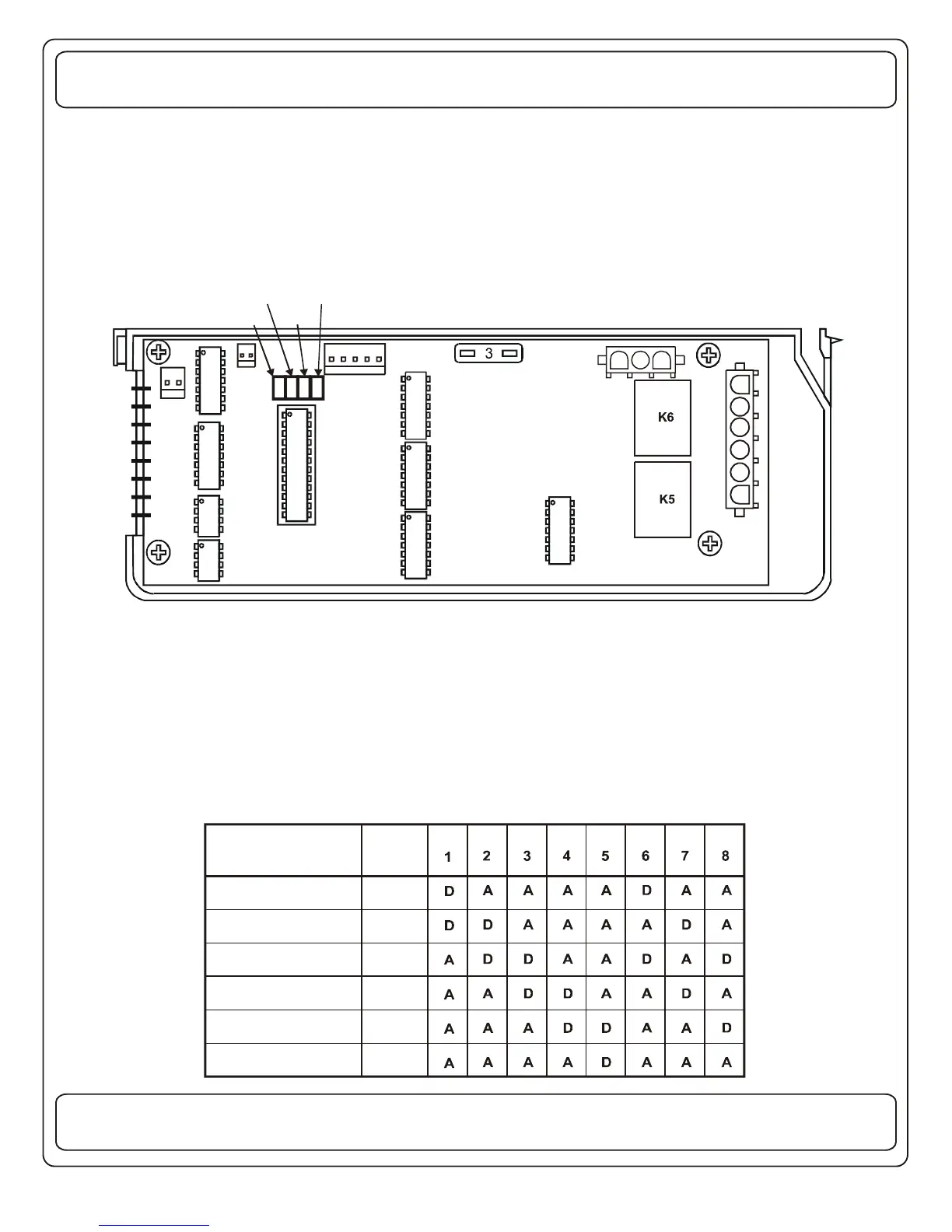

The EMS Control Module has three jumpers on the board that determine the order of shedding of the loads. These
jumpers are labeled JP2, JP3, and JP4 (See figure below). An additional jumper, JP1, is reserved to configure the control,
to differentiate whether a gas or diesel powered generator is installed. If JP1 is installed, the control will be configured to
control loads based on the 45 Amp current rating for a gas powered generator. Removal of JP1 configures the control to
control loads based on a 60 Amp current rating for a diesel powered generator.
These jumpers are all installed at the factory. Removing JP2, JP3, or JP4 will alter the order of shedding to suit the
particular need of the installation. The following tables will assist in determining the proper settings for the three jumpers.
The first step is to fill in the blanks with the names of the loads you want the system to shed, in the order they are to be shed,
with the first to be shed at the top. Then, fill in the second "Load Type" column, with an "A" or a "D"; an "A" for a 120 VAC
controlled load such as a washer/dryer, or a "D" for DC controlled load, such as a thermostat wire. You can select a
maximum of 4 AC and 2 DC relays.
1
1
1
MCU
JP1
JP2
JP3
JP4
J3
J2
F1
J5
J1
HI POT
TESTING
ONLY
REMOTE
DISPLAY
CONNECTOR
J4
50 AMP EMS CONTROL MODULE - LOW VOLTAGE CONNECTION SIDE
LOAD NAME
(First to Shed at Top)
LOAD
TYPE
To Next Page
