5
2
1
3
4
5
1
1
1
1
1

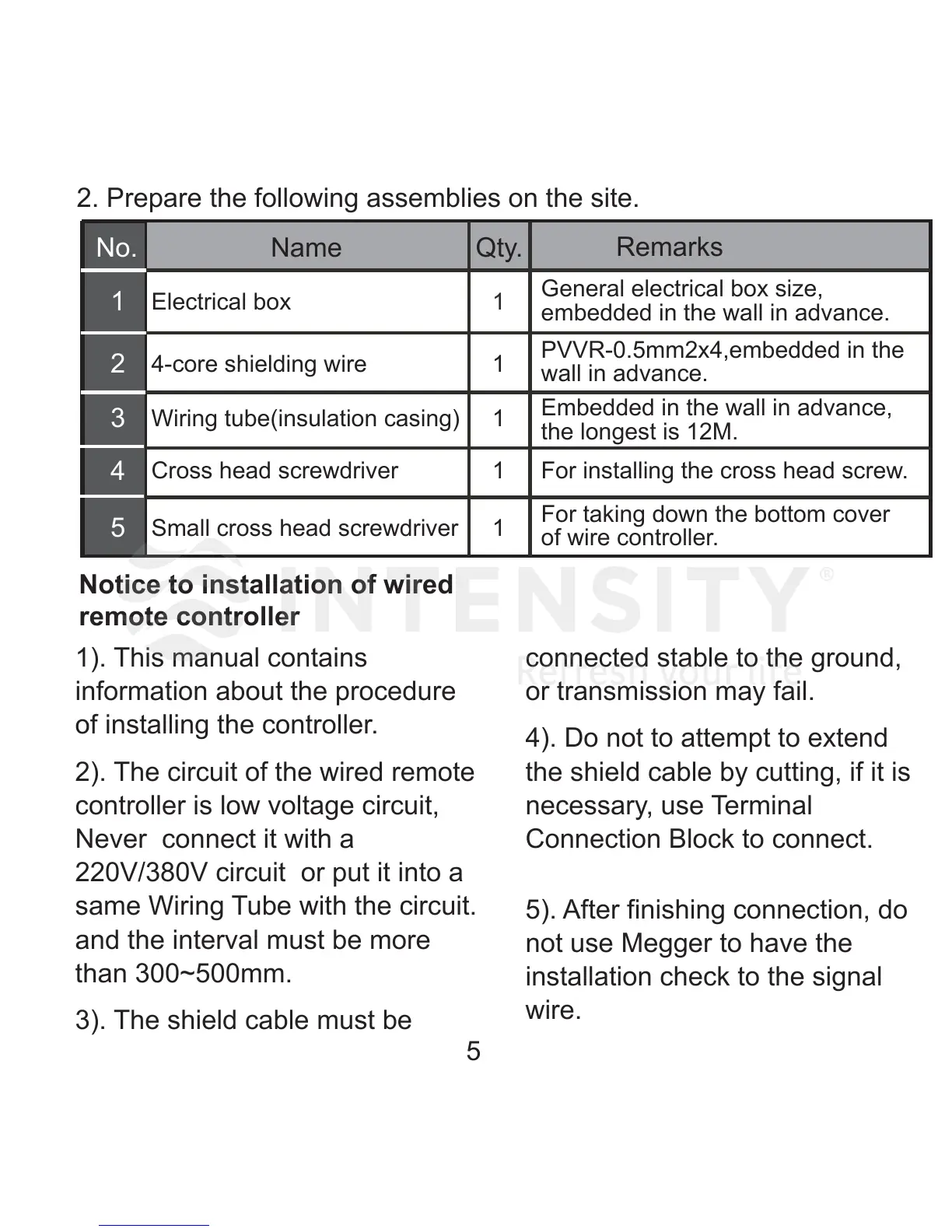

2. Prepare the following assemblies on the site.
No. Name
Qty.
Remarks
Notice to installation of wired
remote controller
1). This manual contains
information about the procedure
of installing the controller.
2). The circuit of the wired remote
controller is low voltage circuit,
Never connect it with a
220V/380V circuit or put it into a
same Wiring Tube with the circuit.
and the interval must be more
than 300~500mm.
3). The shield cable must be
connected stable to the ground,
or transmission may fail.
4). Do not to attempt to extend
the shield cable by cutting, if it is
necessary, use Terminal
Connection Block to connect.
5). After finishing connection, do
not use Megger to have the
installation check to the signal
wire.
Electrical box
4-core shielding wire
PVVR-0.5mm2x4,embedded in the
wall in advance.
Wiring tube(insulation casing)
Embedded in the wall in advance,
the longest is 12M.
Cross head screwdriver For installing the cross head screw.
Small cross head screwdriver
For taking down the bottom cover
of wire controller.
General electrical box size,
embedded in the wall in advance.
To Next Page
