intensity KJR-86C-E - Wiring Diagrams for Indoor Units; Four-Way Cassette Unit Wiring

9

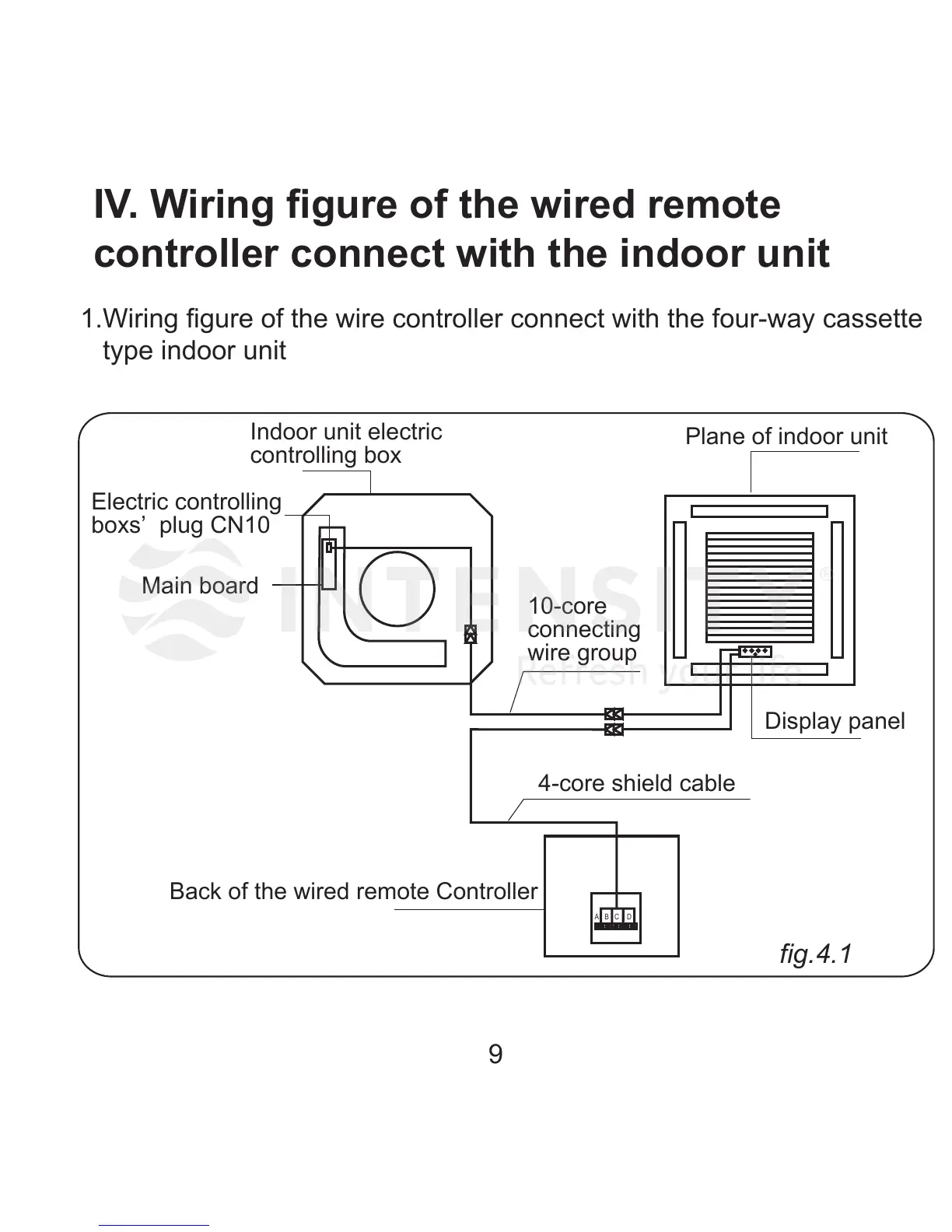

IV. Wiring figure of the wired remote
controller connect with the indoor unit
1.Wiring figure of the wire controller connect with the four-way cassette
type indoor unit
fig.4.1
A
B
C D
Electric controlling
boxs’ plug CN10
Main board
10-core
connecting
wire group
4-core shield cable
Back of the wired remote Controller
Plane of indoor unit
Display panel
Indoor unit electric
controlling box
