10

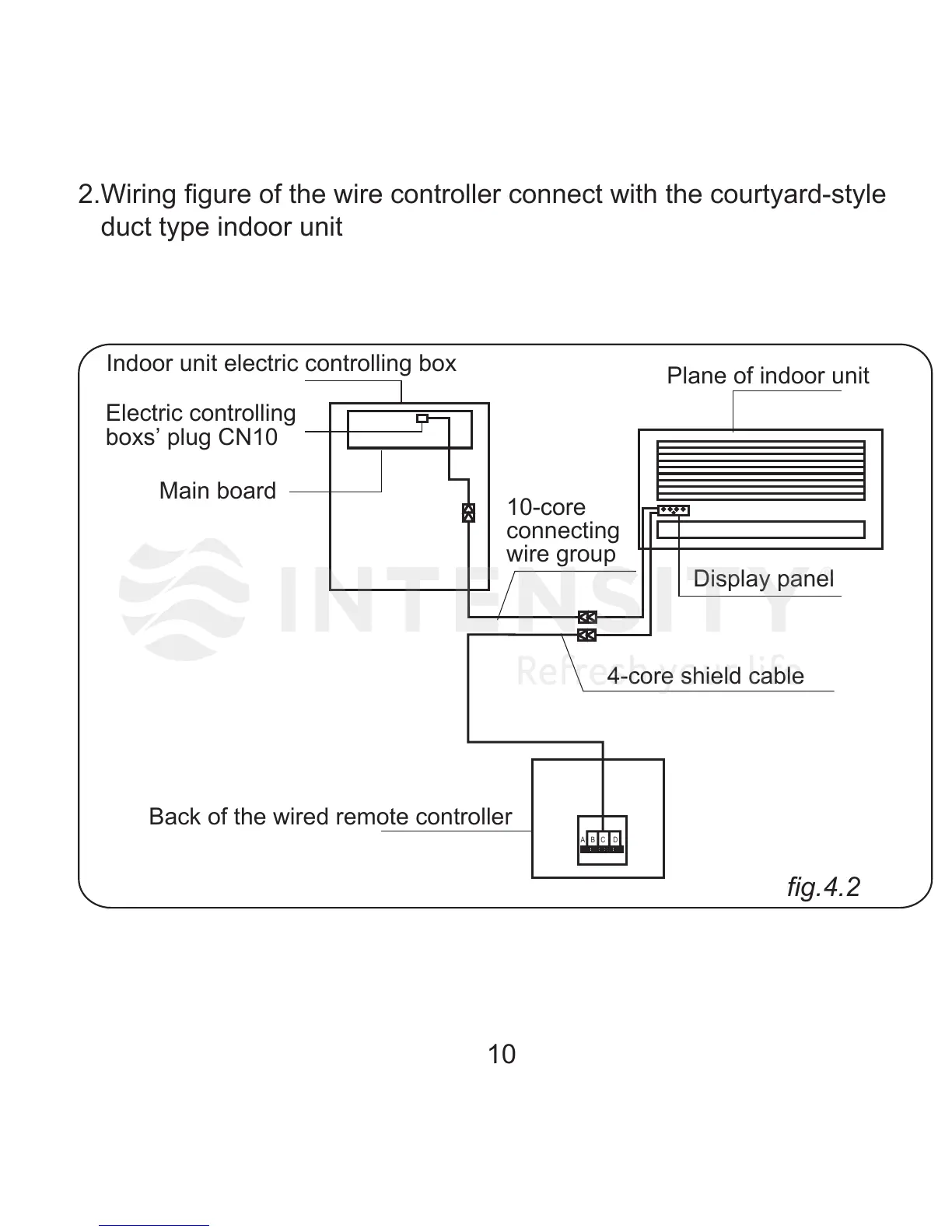

2.Wiring figure of the wire controller connect with the courtyard-style
duct type indoor unit
fig.4.2
A
B
C D
Plane of indoor unit
Indoor unit electric controlling box
Electric controlling
boxs’ plug CN10
Main board
10-core
connecting
wire group
Display panel
Back of the wired remote controller
4-core shield cable
